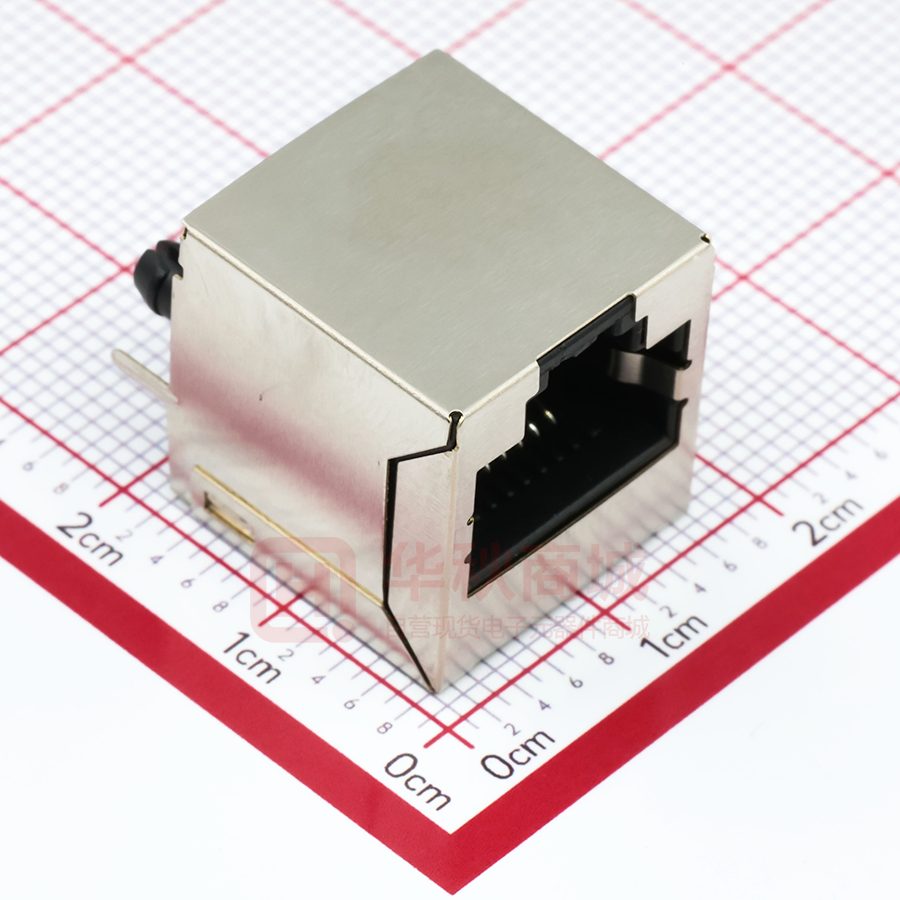

RJ45-8P8C-B1WPW-224GC

FRONT VIEW BOTTOM VIEW 5 4 3 2 1 RIGHT SIDE VIEW 7 6 1 2 3 4 5 6 7 8 BACK VIEW 内部金针示意图 MATERIAL: HOUSING: PBT,UL94V-0,BLACK. TERMINAL: PHOSPHOR BRONZE Ø=0.46MM, G/FU" GOLD PLATING ON CONTACT AREA. SHIELD: C2680,T=0.20MM,20 MIN NICKEL PLATING ON ALL AREA. MACHANICAL: DURABILITY: 750 CYCLES MIN,12.5MM/MINUTE. INSERTION FORCE: 2.2KG.F MAX. RETENTION STRENGTH : 7.7KG.F BETWEEN JACK AND PLUG. OPERATING TEMPERATURE: -40℃～+85℃. STORAGE TEMPERATURE: -40°C~+85°C. ALL CRITICAL DIMENSIONS WITH "*" 2 3 4 5 6 7 1 J8 J2 J3 J4 J5 J6 J7 J1 ELECTRICAL: VOLTAGE: 125 VOLTS AC. CURRENT RATING : 1.5AMP. DIELECTRIC STRENGTH: 1000 VAC RMS 50HZ OR 60HZ,1MIN. INSULATION RESISTANCE: 500 MEGA OHMS MIN. INITIAL AFTER 500V DC FOR 1 MINUTE. CONTACT RESISTANCE: SINGLE TERMINAL 30 MILLIOHMS MAX. INITIAL 50 MILLIOHMS MAX. AFTER DURABILITY TEST. 8 CABLE SIDE 8 RECOMMENDED PCB LAYOUT VIEWED FROM COMPONENT SIDE PCB SIDE TO PHY
