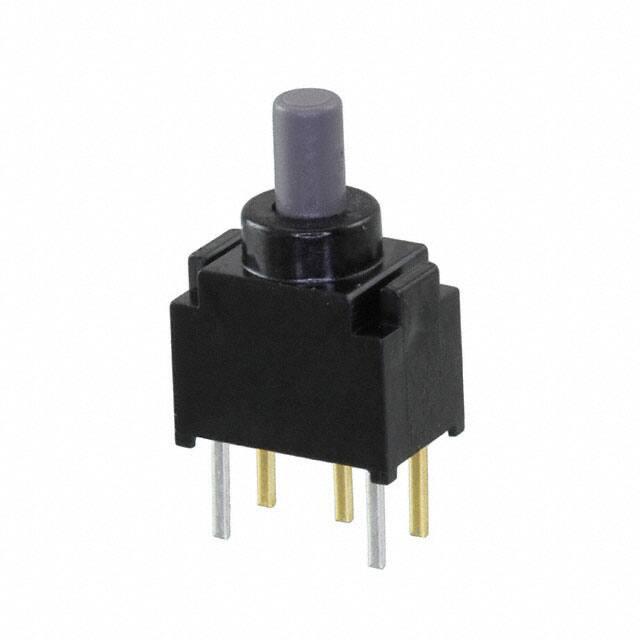

CFP2-1FC-AW

CFP2 ■Terminal Pins: Straight ■Actuator Color: Gray Ultra-Miniature Pushbutton Switches Washable RoHS Compliant ■Features ■ Specifications 1. Ultra-miniature pushbutton switch for high density mounting. 2. Washable. Rating 3. Terminal pin pitch: 2.54 mm. Max. 0.4VA（28VDC max.） Min. 1μA 20mVDC Initial contact resistance 100m Ω max.  4. Independent detent mechanism ensures light operational feel. 5. Clip contact mechanism for long-term contact reliability. 6. Gold-plated contacts. 250VAC 1 minute Insulation resistance 500MΩ min.（250VDC） Electrical life 10,000 operations at max.rating, 30,000 operations at min.rating, Mechanical life 30,000 cycles Operating force 1.47±0.98N Operating temperature range Storage temperature range ■Part Numbering CFP2 2 Series Actuator Number of poles Code Type Fig. Number of poles P Pushbutton 1 1 pole 2 2 poles R R −40∼＋85℃ ON －（ON） A Terminal style 1 pole 2 poles Switching function F −40∼＋85℃ C4 Switching function （1.5mA 200μVAC） Dielectric strength Actuator shape Fig. Terminal style Code Actuator shape C P/C A Standard C4 Right angle W Packaging spec Code Packaging spec W Tray C6 Vertical mounting （ON） ：Momentary. CFP2 SPDT PC Switching function Part No. 5-φ0.6～0.8 CFP2-1FC-AW ON （ON） Connecting terminals 5−6 5−4 ON 2−3 5−6 （ON） 2−1 5−4 CFP2-1FC4-AW ON （ON） Connecting terminals 5−6 5−4 ON 2−3 5−6 （ON） 2−1 5−4 （Top view） PC Hole Layouts Terminal numbers are not shown on the switch. DPDT PC Switching function Part No. ☆CFP2-2RC-AW 6-φ0.6～0.8 Terminal numbers are not shown on the switch. Connecting terminals （Top view） PC Hole Layouts SPDT R/A Switching function Part No. 5-φ0.6～0.8 （Top view） PC Hole Layouts Terminal numbers are not shown on the switch. DPDT R/A Switching function Part No. ☆CFP2-2RC4-AW 8-φ0.6～0.8 Connecting terminals （Top view） PC Hole Layouts Terminal numbers are not shown on the switch. ※ The above PC Hole Layouts are top view drawings. ■Optional Accessories Part Name Dimension Gloss finish Color Cap ABS resin ：Optional Accessories. 《Sold separately》 Color Part Number White 140000481453 Red 140000481452 Black 140000481451 Gray 140000481450 The blue line shows the outline of the switch. ■Color Cap Mounting （ON） ：Momentary. ☆：Semi-standard products. CFP2 SPDT V/M Switching function Part No. CFP2-1FC6-AW ON （ON） Connecting terminals 5−6 5−4 ON 2−3 5−6 （ON） 2−1 5−4 5-φ0.8 Terminal numbers are not shown on the switch. （Top view） PC Hole Layouts DPDT V/M Switching function Part No. ☆CFP2-2RC6-AW Connecting terminals 8-φ0.8 Terminal numbers are not shown on the switch. （Top view） PC Hole Layouts ※ The above pcb hole dimengion, it is a top view drawiing when we fix the switch. ■Handling Specifications（CFP2） 1. Soldering Specifications  ⑴Manual Soldering Device：Soldering iron 350° C, Max.; 3 seconds, Max. ⑵Auto Soldering Device：Jet wave type or dip type 260° C, Max.; 3-5 seconds, Max. (One time) Total dip time: Within 10 seconds ・Pre-heating should be done at temperatures from 80° C to 120° C and within 120 seconds ⑶When soldering two or more terminals to a common land, use solder resist to separate them 2. Flux Cleaning ⑴Solvents : Fluorine or Alcohol type ⑵Cleaning after soldering should be done after the PC board is exposed to room temperature (30℃ or below) for 1 to 2 hours. ⑶Do not use ultrasonic cleaning. ■Packaging Specifications Plastic Pack 100 pcs./pack U 15 OK SO IS JI FU J FU KU 231 The blue line shows the outline of the switch. （ON） ：Momentary. 196 ☆：Semi-standard products.
