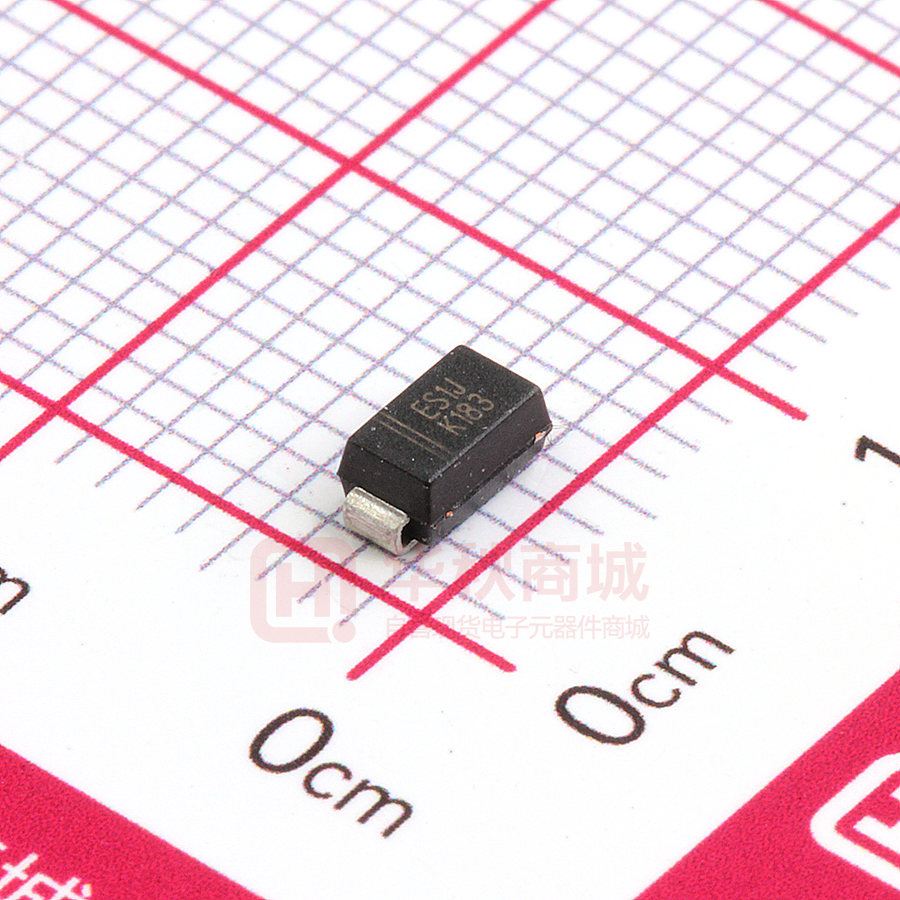

ES1A~ES1J
Rev. B Jun.-2021
DATA SHEET
描述 / Descriptions
超快恢复二极管,反向电压:50V~600V,正向电流:1.0A,SMA 封装。
Surface Mount Superfast Recovery Rectifier,Reverse Voltage:50 to600V,Forward Current:1.0A, SMA
package.
特征 / Features
玻璃钝化芯片,反向恢复时间快,无铅符合欧盟 RoHS 指令 2011/65/EU,适用于表面贴装。无卤产品。
Glass Passivated Chip Junction,Superfast reverse recovery time,Lead free in comply with EU ROHS
2011/65/EU directives,For surface mounted applications.Halogen free product.
用途 /
Applications
一般用途.
General purpose.
内部等效电路 / Equivalent Circuit
引脚排列 / Pinning
印章代码 / Marking
见印章说明。See Marking Instructions
http://www.fsbrec.com
1/7
ES1A~ES1J
Rev. B Jun.-2021
极限参数 /
DATA SHEET
Absolute Maximum Ratings(Ta=25℃)
参数
Parameter
符号
Symbol
Maximum Repetitive
Peak Reverse Voltage
Maximum RMS
voltage
Maximum DC Blocking
Voltage
Maximum Average
Forward Rectified
Current
Peak Forward Surge
Current 8.3 ms Single
Half Sine Wave
Superimposed on
Rated Load (JEDEC
Method)
Typical Junction
Capacitance at
VR =4V,f=1MHZ
Typical Thermal
)
Resistance 1
Operating and Storage
Temperature Range
数值
Rating
单位
Unit
ES1A
ES1B
ES1C
ES1D
ES1E
ES1G
ES1J
VRRM
50
100
150
200
300
400
600
V
VRMS
35
70
105
140
210
280
420
V
VDC
50
100
150
200
300
400
600
V
IF(AV)
1.0
A
IFSM
30
A
Cj
15
pF
RθJA
75
℃/W
Tj,Tstg
-55~+150
℃
Note:
1)P.C.B. mounted with 1.0X1.0"(2.54X2.54 cm) copper pad areas.
电性能参数 / Electrical Characteristics(Ta=25℃)
参数
Parameter
Maximum
Forward Voltage
Maximum DC
Reverse Current
at Rated DC
Blocking Voltage
Maximum
Reverse
Recovery Time
符号
Symbol
VF
测试条件
Test
Conditions ES1A ES1B ES1C
IF=1.0A
数值
Rating
ES1D
1.0
ES1E
ES1G
1.25
ES1J
单位
Unit
1.70
V
Ta=25℃
5.0
μA
Ta=125℃
100
μA
35
ns
IR
IF=0.5A
trr
http://www.fsbrec.com
IR=1.0A
Irr=0.25A
2/7
ES1A~ES1J
Rev. B Jun.-2021
DATA SHEET
电参数曲线图 / Electrical Characteristic Curve
http://www.fsbrec.com
3/7
ES1A~ES1J
Rev. B Jun.-2021
DATA SHEET
外形尺寸图 / Package Dimensions
http://www.fsbrec.com
4/7
ES1A~ES1J
Rev. B Jun.-2021
DATA SHEET
印章说明 / Marking Instructions
http://www.fsbrec.com
5/7
ES1A~ES1J
Rev. B Jun.-2021
DATA SHEET
印章说明 / Marking Instructions
ES1D
****
说明:
ES1D:
****
为型号代码
: 为生产批号追溯码,第 1 个*为年月代码,后面 3 个*为当月小批号代码
Note:
ES1D:
Product Type Code
****:
Lot No. Code,The 1st * means:YM Code,The last 3 * means:little Lot No
Code
http://www.fsbrec.com
6/7
ES1A~ES1J
Rev. B Jun.-2021
DATA SHEET
回流焊温度曲线图(无铅) / Temperature Profile for IR Reflow Soldering(Pb-Free)
350
Temperature(℃)
300
245±5℃
250
5±0.5 sec
200
150
60~90 sec
100
50
0
0
20
40
60
80
100
120
140
160
180
200
220
240
260
280
Time(sec)
说明:
Note:
1、预热温度 150~180℃,时间 60~90sec;
1.Preheating:150~180℃, Time:60~90sec.
2、峰值温度 245±5℃,时间持续为 5±0.5sec;
2.Peak Temp.:245±5℃, Duration:5±0.5sec.
3、焊接制程冷却速度为 2~10℃/sec.
3. Cooling Speed: 2~10℃/sec.
耐焊接热试验条件 /
Resistance to Soldering Heat Test Conditions
温度:260±5℃
时间:10±1 sec.
Temp.:260±5℃
Time:10±1 sec
包装规格 / Packaging SPEC.
卷盘包装 / REEL
Package Type
封装形式
SMA
Dimension 包装尺寸 (unit:mm3)
Units 包装数量
Units/Reel
只/卷盘
Reels/Inner Box
卷盘/盒
Units/Inner Box
只/盒
Inner Boxes/Outer Box
盒/箱
Units/Outer Box
只/箱
Reel
Inner Box 盒
Outer Box 箱
5000
2
10000
7
70000
13〞×12
336X336X40
380X335X366
使用说明 / Notices
http://www.fsbrec.com
7/7
