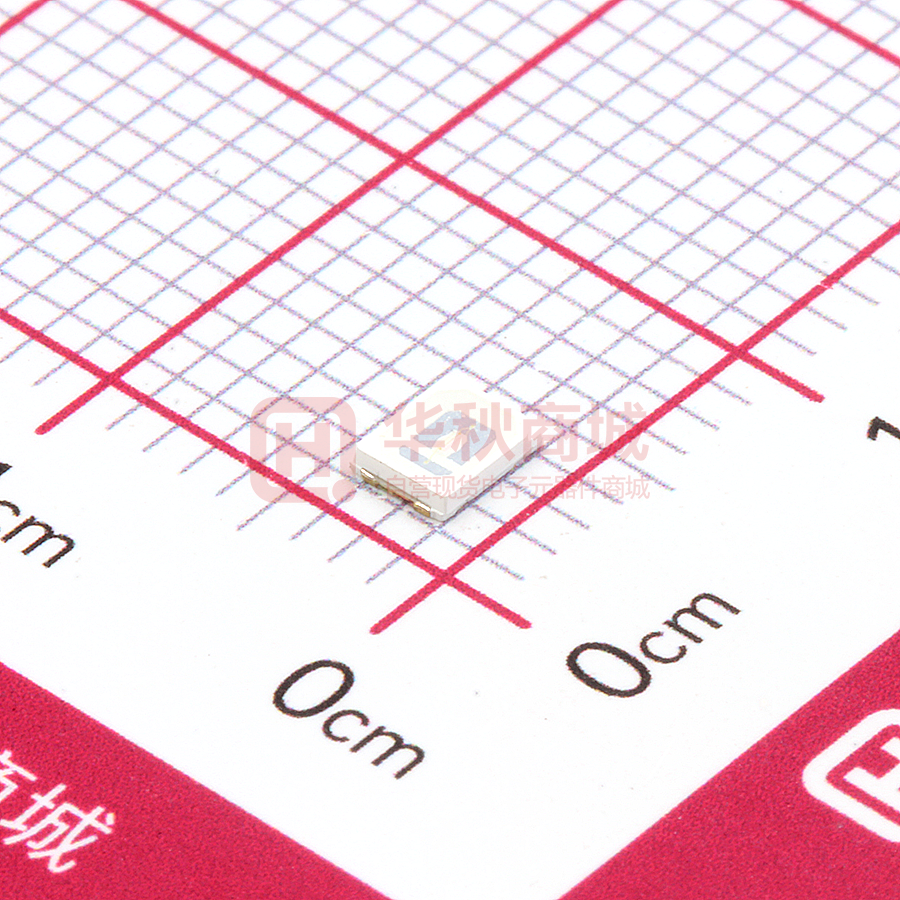

TJ-S2835B05YK18-A3

2021 Edition 承 認 書 Specification For Approval Customer: Description: Part number: TJ-S2835B05YK18-A3 Date: Approved By: Customer Check Inspection Approval Date Prepared By: TONGJIA Drawn Check Approval Date GUANGDONGTONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD 0769-86625999 400 676 8616 No.96, xintou Industrial Zone, Tangxia,Dongguan, Guangdong www.togialed.com 2021 Edition Features 2.8mm×3.5mm SMT LED,0.65mm thickness Low power consumption Wide view angle Package: 4000pcs/reel RoHS Compliant Applications Ldeal for back light and indicator Various colors and lens types available Package outlines Recommend Pad Layout Notes: 1. All dimensions are in millimeters (inches); 2. Tolerances are 0.1mm (0.004inch) unless otherwise noted. GUANGDONGTONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD 0769-86625999 400 676 8616 No.96, xintou Industrial Zone, Tangxia,Dongguan, Guangdong www.togialed.com 2021 Edition 极限参数 Absolute maximum ratings 参数 Parameter （Ta=25°C） 符号 Symbol 数值 Value 单位 Unit If 150 mA 反向耐压 Reverse voltage Vr 5 V 耗散功率 Power dissipation 工作环境温度 Operating temperature range Pd 480 mW Top -25~+80 °C Tstg -30~+85 °C Ifp 200 mA Tj 115 ℃/W ESD 2000 V 正向电流 Forward current 贮藏温度 Storage temperature range 峰 值 脉 冲 电 流 Peak pulsing current （ 1/8 duty f=1KHz） 结温 Junction Temperature 静电 Electrostatic Discharge(HBM) 光电特性 Electro-Optical characteristics (TA=25°C) 测试条件 Test Condition 符号 Symbo l 颜色 色温 Color Temperature 正向电压 Forward voltage IF=150mA CCT IF=150mA 光通量 luminous flux 参数 Parameter 数值 Value 单位 Unit Min Typ Max -- -- -- -- K Vf B 2.8 . -- 3.4 V IF=150mA φ B 8 -- 12 LM 视角 Viewing angle at 50% IV IF=150mA 2θ1/2 B -- 120 -- Deg 主波长 Dominant wavelength IF=150mA λd B 460 -- 470 nm 反向电流 Reverse current 显色性指数 Color Rendering Index Vr=5V Ir B -- 5 -- μA IF=150mA CRI -- -- -- -- Ra 1. Tolerance of radiant intensity:±15％ 2. Tolerance of dominant wavelength:±1.0nm 3. Tolerance of forward voltage:0.05V GUANGDONGTONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD 0769-86625999 400 676 8616 No.96, xintou Industrial Zone, Tangxia,Dongguan, Guangdong www.togialed.com 2021 Edition Optical characteristic curves Forward Current VS Forward Voltage Forward ） Current (mA Relative Luminous Lntensity Forward Current VS. Relative Intensity Forward Current(mA) Forward Voltage(V) Ambient Temperature VS Relative Intensity Forward ） Current (mA Relative Luminous Lntensity Ambient Temperature VS Forward Current Ambient Temperature Ta(℃） Ambient Temperature Ta(℃） 0° 30° 90° 50 0 50 90° 100 60° 60° 30° 100 Relative Luminous Intensity(%) GUANGDONGTONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD 0769-86625999 400 676 8616 No.96, xintou Industrial Zone, Tangxia,Dongguan, Guangdong www.togialed.com 2021 Edition 可靠性实验项目 Test items and results of reliability Operation Sequence Environmental Sequence 类 别 Typ e 测试项目 Test item 参照标准 Standard 测试条件 Test Conditions 备注 Note -25°C 30min ↑↓5min 80°C 30min -25°C 15min ↑↓5min 80°C 15min 高低温循环 Temperature Cycle JIS C 7021 (1977)A-4 热冲击 Thermal Shock MIL-SLD-107D 高温度热循环 High Humidity Heat Cycle JIS C 7021 (1977)A-5 高温存储 High Temperature Storage 高温高湿存储 Humidity Heat Storage 低温存储 Low Temperature Storage 数量 Quantity 不良数量 Number of Damaged 100 cycle 22 0 50 cycle 22 0 30°C〈=〉65°C 90%RH 24hrs/1cycle 10 cycle 22 0 JIS C 7021 (1977)B-10 Ta=80°C 1000hrs 22 0 JIS C 7021 (1977)B-11 Ta=60°C RH=90% 1000hrs JIS C 7021 (1977)B-12 Ta=－30°C 1000hrs 常温寿命测试 Life Test JIS C 7035 (1985) Ta=25°C IF=150mA 1000hrs 22 0 高温高湿寿命测试 High Humidity Heat Life Test  60°C RH=90% IF=150mA 500hrs 22 0 低温寿命测试 Low Temperature Life Test  Ta=-25°C IF=150mA 1000hrs 22 0 22 22 0 0 请参考可靠性测试标准规范。Refer to reliability test standard specification for in this line. 失效判定标准 Criteria For Judging Damage 测试项目 符号 测试条件 正向电压 Forward Voltage VF IF=IFT 反向电流 Reverse Current IR VR=5V IR≦10μA IF=IFT 平均 IV 衰减≦30℅，单个平均 IV 衰减≦50℅ Average IV degradation≦30℅ Single LED IV degradation≦50℅ -- 材料无内部裂痕、无材料间爆裂、剥离、无死灯 Meterial without internal cracks, no material between stripped, no deaded light. 光强 Luminous Intensity 耐焊接热 Resistance to Soldering Heat IV -- 判定标准 初始值±10℅ Initial Data±10℅ *数据工作表中所示的技术信息仅限于典型特征和电路实例引用的产品.它既不构成工业特性的保证,也不构成任何许可的授权 The technical information shown in the data sheets are limited to the typical characteristics and circuit examples of the referenced products. It does not constitute the warranting of industrial property nor the granting of any license. GUANGDONGTONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD 0769-86625999 400 676 8616 No.96, xintou Industrial Zone, Tangxia,Dongguan, Guangdong www.togialed.com 2021 Edition Reflow Profile ■ Reflow Temp/Time Notes: 1.We recommend the reflow temperature 245℃(±5℃).the maximum soldering temperature should be limited to 260℃. 2.Don’t cause stress to the epoxy resin while it is exposed to high temperature. 3.Number of reflow process shall be 2 times or less. ■ Soldering iron Basic spec is ≤ 5sec when 260℃. If temperature is higher, time should be shorter (+10℃→ -1sec ).Power dissipation of iron should be smaller than 20W, and temperatures should be controllable .Surface temperature of the device should be under 230℃ . ■ Rework 1. Customer must finish rework within 5 sec under 260℃. 2. The head of iron can not touch copper foil 3.Twin-head type is preferred. ■ Avoid rubbing or scraping the resin by any object, during high temperature, for example reflow solder etc. GUANGDONGTONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD 0769-86625999 400 676 8616 No.96, xintou Industrial Zone, Tangxia,Dongguan, Guangdong www.togialed.com 2021 Edition Test circuit and handling precautions ■ Test circuit ■ Handling precautions 1. Over-current-proof Customer must apply resistors for protection; otherwise slight voltage shift will cause big current change (Burn out will happen). 2. Storage 2.1 It is recommended to store the products in the following conditions: Humidity: 60% R.H. Max. Temperature : 5℃~30℃(41℉~86℉) 2.2 Shelf life in sealed bag: 12 month at ＜5℃~30℃ and ＜30% R.H. after the package is Opened, the products should be used within a week or they should be keeping to stored at≦20 R.H. with zip-lock sealed. 3. Baking It is recommended to baking before soldering when the pack is unsealed after 72hrs. The Conditions are as followings: 3.1 60±3℃ x(12~24hrs) and ＜5%RH, taped reel type 3.2 100±3℃ x(45min~1hr), bulk type 3.3 130±3℃ x(15~30min), bulk type GUANGDONGTONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD 0769-86625999 400 676 8616 No.96, xintou Industrial Zone, Tangxia,Dongguan, Guangdong www.togialed.com 2021 Edition Product packaging specifications and specifications 1、带盘 Tape leader and reel . M oisture Resistant Packaging 防潮带包装 2、防潮袋包装 Moisture Resistant Packaging Lable A lum inum m oisture-proof bag D esiccant Lable Notes: 1. Empty component pockets are sealed with top cover tape; 2. The maximum number of missing lamps is two; 3. The cathode is oriented towards the tape sprocket hole in accordance with ANSI/EIA RS-481 specifications. 4. 4,000 pcs/Reel. GUANGDONGTONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD 0769-86625999 400 676 8616 No.96, xintou Industrial Zone, Tangxia,Dongguan, Guangdong www.togialed.com
