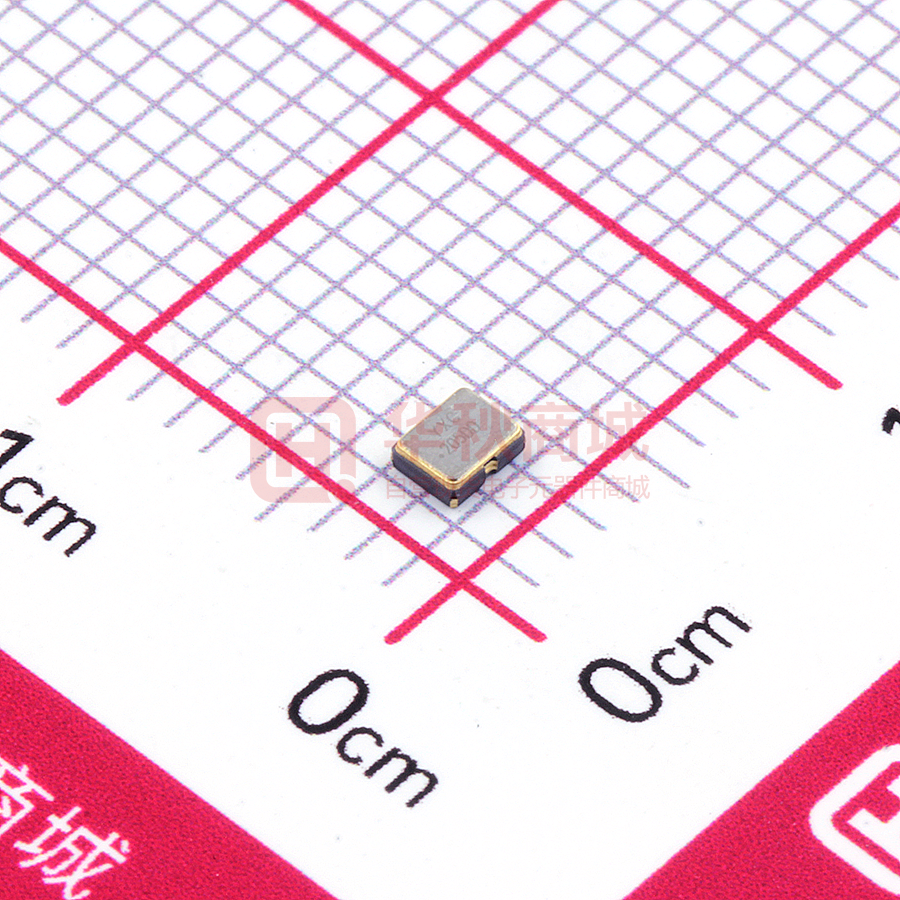

OT3JI-111-24M

Crystal Oscillator YSO110TR Applications ‧Consumer Electronics Industrial Control IOT Wide Voltage Features ‧Frequency range: 1MHz-54MHz.. ‧Package Size: 1.6*1.2, 2.0*1.6 ‧Ultra Small SMD seam sealed crystal oscillator units. 2.5*2.0, 3.2*2.5, 5.0*3.2, 7.0*5.0mm Specifications（规格参数） Item Symbol Specifications f₀ 1MHz to 54MHz,or specify Vcc 1.8V~3.3V - CMOS f_tol ±10ppm,±20ppm,or specify L_cmos 15pF Operating Temperature（工作温度） T_use -40~+85℃,or specify Storage Temperature（储存温度） T_stg -55~+125℃ Frequency Versus Temperature Characteristics（频率-温度特性） f_tem ± 20ppm, ± 30ppm, ± 50ppm, or specify Duty Cycle（占空比） SYM 45~55% Start-up Time（启动时间） t_str 3ms Max. Rise Time/Fall Time（上升沿/下降沿） tr/tf 4ns Max Phase Jitter [12 kHz ~ 20 MHz]（相位抖动） tpj 0.7ps max f_age ±3ppm/year Max. Frequency Range（额定频率范围） Supply Voltage（电源电压） Output Type（输出方式） Frequency Tolerance（频率偏差） (at 25℃ ) Output Load（输出负载） Frequency Aging（老化）(at 25℃ ) Current Consumption（消耗电流） Power Dissipation Vcc=1.8~3.3V 15pF only 1.000~40.000MHZ Supply Voltage (V) 1.8V 2.5V 3.3V 41.000~54.000MHZ 7050/5032/3225 2520/2016/1612 7050/5032/3225/2520 2016/1612 4mA max 4.5mA max 5mA max 4mA max 9mA max 10mA max 12mA max 10mA max Pin Dimension（脚位尺寸） Pin #1 #2 #3 #4 FUNCTION Tri-state GND OUTPUT VDD *The picture on the right is only for PIN function description. www.yxc.hk 1 Crystal Oscillator YSO110TR Wide Voltage Dimensions and Recommended land pattern（外观尺寸及推荐焊盘） Package Size - Dimensions(Unit:mm) Recommended Land Pattern(Unit:mm) 3.2*2.5mm www.yxc.hk 2 Crystal Oscillator YSO110TR Wide Voltage Notes: 1.A capacitor value-0.01uf~0.1uf or higher between Vdd and GND is required. Test Circuit（测试电路） CMOS www.yxc.hk 3
