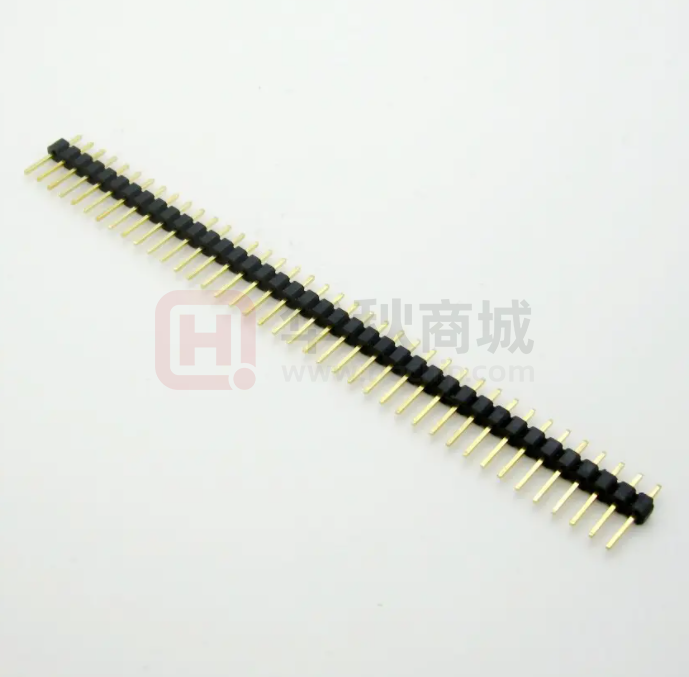

ZX-PZ2.54-1-8PZZ

SPECIFICATIONS Current Rating: 3Amps Insulation Resistance:1000M Min Contact Resistance: 20mΩ Max Withstanding Voltage: AC 1000V Operation Temperature:-40°to+105° Contact Material: Brass Standard: PA6T Insrlator Material: Polyester(UL 94V-0) Contact Plating: Gold Flash Max.Processing Temp: 240°C for30-60seconds (260°C for5seconds) RECOMMEND P.C.B LAYOUT PCB TOLERANCE:±0.05 (TOP VIEW) No. of DIM.A UNLESS OTHEWIXE SPECIFIED TOLERANCE X :±0.30 X.X :±0.25 X.XX:±0.20 CHECKED: X° :±5° X.X° :±1° X.XX°:±0.5° DRAWM NAME: SIZE REV A4 A CHECKED: 2.54PH H2.5 1xnPin 180度 PC3.0 PA6.0 PB2.5 L11.5 6T SCALE PROUCT NO. UNIT PROJECT / / APPROVED: ZX-PZ2.54-1-8PZZ 1/1 PAGE / / THESE DRAWINGS AND SPECFICATIONS ARE THE PROPERTY OF SHENZHEN YIXINYING TECHNOLOGY CO., LTD AND SHALL NOT BE REPRODUCED.COPIED OR USED IN ANY MANNER WITHOUT THE PRIOR WRITTEN CONSENT OF SHENAHEN YIXINYING TECHNOLOGY CO., LTD DIM.B No. of DIM.A DIM.B No. of DIM.A DIM.B No. of DIM.A DIM.B
