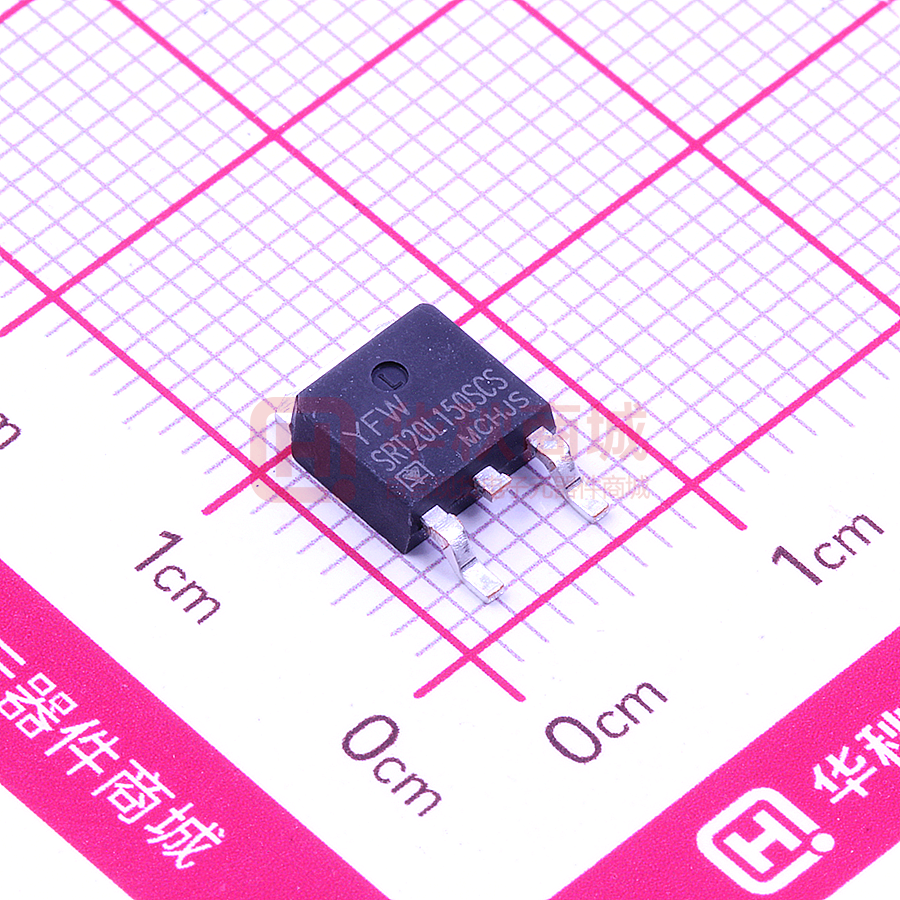

SRT20L150SCS

SRT20L150SCT-FCT-DC-CS Trench MOS Barrier Schottky Rectifier Reverse Voltage - 150 V Forward Current - 20 A Features  Very low forward voltage  High current capability  High forward surge capability  Low power losses High efficiency  Guarding for over voltage protection  Lead free in comply with EU RoHS 2011/65/EU directives MECHANICAL DATA  Case: TO-220AB/CT TO-220F/FCT TO-263/DC,TO-252/CS  Solder bath temperature275℃maximum,10s per JESD22-106 Primary Characteristic Io 20A VRRM 150V IFSM 220A VF 0.63V TJ Max 150°C Maximum Ratings (Per Leg) at Ta=25°C unless otherwise specified Parameter Symbols Value Units Maximum Repetitive Peak Reverse Voltage VRRM 150 V Maximum RMS voltage VRMS 150 V Maximum DC Blocking Voltage VDC 150 V Io 20 A Maximum Average Forward Rectified Current Peak Forward Surge Current, 8.3ms Single Half Sine-wave IFSM 220 A Operating Temperature Range TJ -50 ~ +150 °C TSTG -50 ~ +150 °C RθJA/ RθJC 2/4 °C/W Storage Temperature Range Typical Thermal Resistance (Note1) Note1: Thermal resistance from Junction to case per leg mounted on heatsink. Electrical Characteristics (Per Leg) unless otherwise specified Characteristics Symbols at IF=3A at IF=5A at IF=10A Maximum Reverse Current at VR=150V Units Max TA=25°C 0.62 0.65 TA=125°C 0.51 - 0.69 - TA=25°C VF V TA=125°C 0.56 - TA=25°C 0.77 0.84 TA=125°C 0.63 - TA=25°C 2 10 uA 1.5 - mA TA=125°C Note2:Pulse test: 300 μs pulse width, 1 % duty cycle www.yfwdiode.com Value Typ Forward Voltage Drop(Note2) IR 1/4 GuangDong YFW Electronics Co, Ltd. SRT20L150SCT-FCT-DC-CS Ratings and Characteristic Curves TA=125℃ TA=25℃ Marking On The Body Ordering Information Part Number Package Unit Weight Base Quantity Delivery mode SRT20L150SCT TO-220AB 0.07oz(1.96g) 50 pcs / tube 1000pcs/box 5000pcs/carton SRT20L150SFCT TO-220F 0.06oz(1.74g) 50 pcs / tube 1000pcs/box 5000pcs/carton SRT20L150SDC TO-263 0.04oz(1.16g) 50 pcs / tube 1000pcs/box 5000pcs/carton SRT20L150SDC-R TO-263 0.04oz(1.16g) 800 pcs / reel 800pcs/box4000pcs/carton SRT20L150SCS TO-252 0.011oz(0.32g) 2500 pcs / reel 2500pcs/box12500pcs/carton Note: For Halogen Free molding compound, add "H" suffix to part number above. www.yfwdiode.com 2/4 GuangDong YFW Electronics Co, Ltd. SRT20L150SCT-FCT-DC-CS Package Outline Dimensions Millimeters www.yfwdiode.com 3/4 GuangDong YFW Electronics Co, Ltd. SRT20L150SCT-FCT-DC-CS Package Outline Dimensions Millimeters www.yfwdiode.com 4/4 GuangDong YFW Electronics Co, Ltd.
