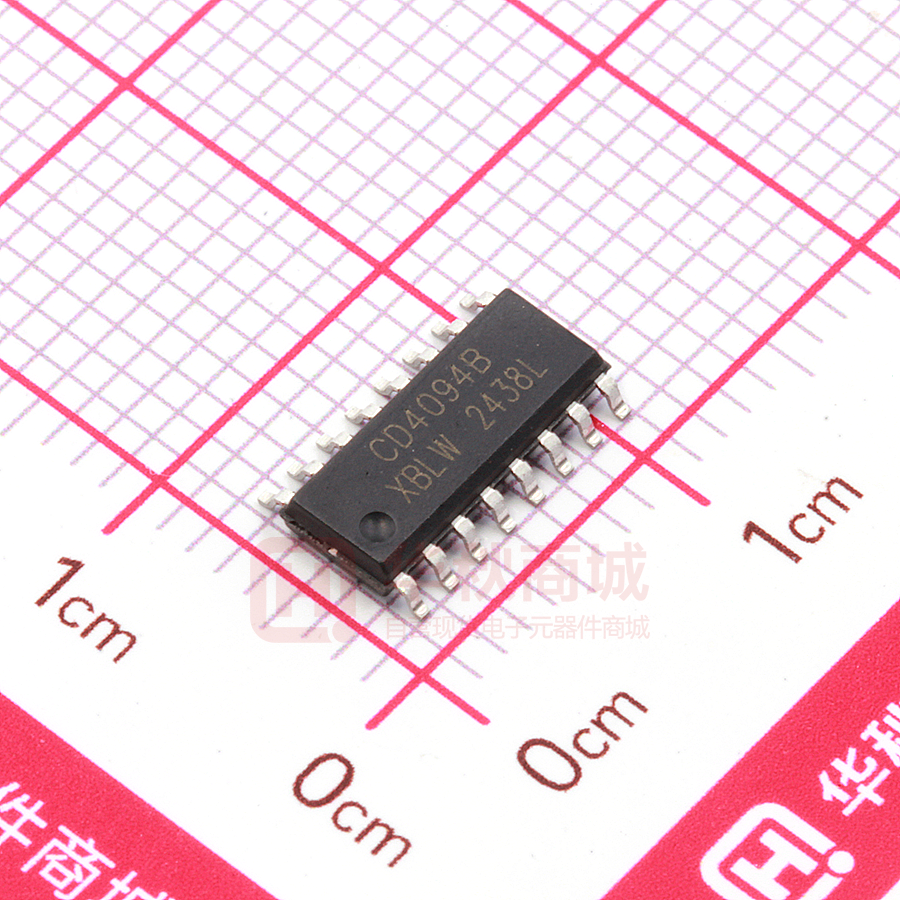

CD4094BDTR

XBLW CD4094 8-Stage Serial Shift Register General Description The CD4094 is an 8-stage serial shift register. It has a storage latch associated with each stage for strobing data from the serial input to parallel buffered 3-state outputs QP0 to QP7. The parallel outputs may be connected directly to common bus lines. Data is shifted on positive-going clock transitions. The data in each shift register stage is transferred to the storage register when the strobe (STR) input is HIGH. Data in the storage register appears at the outputs whenever the output enable (OE) signal is HIGH. Two serial outputs (QS1 and QS2) are available for cascading a number of CD4094 devices. Serial data is available at QS1 on positive-going clock edges to allow high-speed operation in cascaded systems with a fast clock rise time. The same serial data is available at QS2 on the next negative going clock edge. This is used for cascading CD4094 devices when the clock has a slow rise time. It operates over a recommended VDD power supply range of 3V to 15V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS, or another input. Features  Wide supply voltage range from 3v to 15v  Fully staic operation  5V, 10V, and 15V parametric ratings  Standardized symmetrical output characteristics  Specified from -40℃ to +85℃  Packaging information: DIP16/SOP16/TSSOP16 Ordering Information DEVICE Package Type MARKING Packing Packing QTY CD4094BE CD4094BDTR CD4094BTDTR DIP-16 SOP-16 TSSOP-16 CD4094BE CD4094B CD4094B Tube Tape Tape 1000/Box 2500/Reel 3000/Reel XBLW version 1.0 文档仅供参考，实际应用测试为准 ｗｗｗ．ｘｉｎｂｏｌｅｉｃ．ｃｏｍ　　　　技术支持热线：４００９６８２００３ 第 1 页 共 16 页 XBLW CD4094 8-Stage Serial Shift Register Block Diagram And Pin Description Block Diagram Figure 1. Logic symbol Figure 2. Functional diagram Figure 3. Logic diagram XBLW version 1.0 文档仅供参考，实际应用测试为准 ｗｗｗ．ｘｉｎｂｏｌｅｉｃ．ｃｏｍ　　　　技术支持热线：４００９６８２００３ 第 2 页 共 16 页 XBLW CD4094 8-Stage Serial Shift Register Figure 4. Timing diagram Pin Configurations XBLW version 1.0 文档仅供参考，实际应用测试为准 ｗｗｗ．ｘｉｎｂｏｌｅｉｃ．ｃｏｍ　　　　技术支持热线：４００９６８２００３ 第 3 页 共 16 页 XBLW CD4094 8-Stage Serial Shift Register Pin Description Pin No. Pin Name Description 1 2 3 4 STR D CP QP0 strobe input data input clock input parallel output 5 6 7 8 QP1 QP2 parallel output parallel output QP3 VSS QS1 QS2 QS7 QS6 QS5 QS4 OE VDD parallel output ground supply voltage 9 10 11 12 13 14 15 16 serial output serial output parallel output parallel output parallel output parallel output output enable input supply voltage Function Table Input Parallel output Serial output CP OE STR D QP0 QPn QS1 ↑ L X X Z Z Q6S ↓ L X X Z Z NC ↑ H L X NC NC Q6S ↑ H H L L QPn-1 Q6S ↑ H H H H QPn-1 Q6S ↓ H H H NC NC NC Note: H=HIGH voltage level; L=LOW voltage level; X=don’t care; Z=HIGH-impedance OFF-state; QS2 NC Q7S NC NC NC Q7S NC=no change; ↑=positive-going transition; ↓=negative-going transition; Q6S=the data in register stage 6 before the LOW to HIGH clock transition; Q7S=the data in register stage 7 before the HIGH to LOW clock transition. XBLW version 1.0 文档仅供参考，实际应用测试为准 ｗｗｗ．ｘｉｎｂｏｌｅｉｃ．ｃｏｍ　　　　技术支持热线：４００９６８２００３ 第 4 页 共 16 页 XBLW CD4094 8-Stage Serial Shift Register Electrical Parameter Absolute Maximum Ratings (Tamb=25℃, unless otherwise specified.) Characteristic Symbol Conditions Min. Max. Unit supply voltage DC input current input voltage storage temperature total power dissipation device dissipation VDD IIK VI Tstg Ptot P -0.5 -10 -0.5 -65 - +18 +18 +150 500 100 soldering temperature TL any one input all inputs Per output transistor DIP 10s SOP/TSSOP V mA V ℃ mW mW ℃ ℃ 245 260 Note: [1] For DIP16 packages: above 70℃ the value of Ptot derates linearly with 12mW/K. [2] For SOP16 packages: above 70℃ the value of Ptot derates linearly with 8mW/K. [3] For (T)SSOP16 packages: above 60℃ the value of Ptot derates linearly with 5.5mW/K. Recommended Operating Conditions Parameter Symbol Conditions Min. Typ. Max. Unit supply voltage ambient temperature VDD Tamb data setup time tSU clock pulse width tW 3 -40 125 55 35 200 100 83 clock input frequency fmax VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V - 15 +85 1.25 2.5 3 V ℃ ns ns ns ns ns ns MHz MHz MHz VDD=5V - - 15 μs VDD=10V - - 5 μs VDD=15V - - 5 μs VDD=5V 200 - - μs VDD=10V 80 - - μs VDD=15V 70 - - μs clock rise and fall time strobe setup time XBLW version 1.0 trCL,tfCL tW dc 文档仅供参考，实际应用测试为准 ｗｗｗ．ｘｉｎｂｏｌｅｉｃ．ｃｏｍ　　　　技术支持热线：４００９６８２００３ 第 5 页 共 16 页 XBLW CD4094 8-Stage Serial Shift Register Electrical Characteristics DC Characteristics 1 (Tamb=25℃, voltages are referenced to VSS (ground=0V), unless otherwise specified.) Parameter supply current LOW-level output current HIGH-level output current LOW-level output voltage HIGH-level output voltage LOW-level input voltage Symbol IDD IOL IOH VOL VOH VIL VO Conditions(V) VIN VDD Min. Tamb=25℃ Typ. Max. Unit - 0, 5 5 - 0.04 5 μA - 0, 10 10 - 0.04 10 μA - 0, 15 15 - 0.04 20 μA 0.4 0, 5 5 0.51 1 - mA 0.5 0, 10 10 1.3 2.6 - mA 1.5 0, 15 15 3.4 6.8 - mA 4.6 0, 5 5 -0.51 -1 - mA 2.5 0, 5 5 -1.6 -3.2 - mA 9.5 0, 10 10 -1.3 -2.6 - mA 13.5 0, 15 15 -3.4 -6.8 - mA - 0, 5 5 - - 0.05 V - 0, 10 10 - - 0.05 V - 0, 15 15 - - 0.05 V - 0, 5 5 4.95 5 - V - 0, 10 10 9.95 10 - V - 0, 15 15 14.95 15 - V 0.5, 4.5 - 5 - - 1.5 V 1, 9 - 10 - - 3 V 1.5, 13.5 - 15 - - 4 V 0.5, 4.5 - 5 3.5 - - V 1, 9 - 10 7 - - V 1.5, 13.5 - 15 11 - - V HIGH-level input voltage VIH input leakage current II - 0, 15 15 - ±10-5 ±0.1 μA OFF-state output current IOZ 0, 15 0, 15 15 - ±10-4 ±0.4 μA XBLW version 1.0 文档仅供参考，实际应用测试为准 ｗｗｗ．ｘｉｎｂｏｌｅｉｃ．ｃｏｍ　　　　技术支持热线：４００９６８２００３ 第 6 页 共 16 页 XBLW CD4094 8-Stage Serial Shift Register DC Characteristics 2 (Tamb=-40℃ to +85℃, voltages are referenced to VSS (ground=0V), unless otherwise specified.) Parameter supply current Symbol Tamb=+85℃ Min. Max. Unit 0, 5 5 - 5 - 150 μA - 0, 10 10 - 10 - 300 μA - 0, 15 15 - 20 - 600 μA 0.4 0.5 1.5 4.6 2.5 9.5 13.5 0.5, 4.5 1, 9 1.5, 13.5 0.5, 4.5 1, 9 1.5, 13.5 0, 5 0, 10 0, 15 0, 5 0, 5 0, 10 0, 15 0, 5 0, 10 0, 15 0, 5 0, 10 0, 15 - 5 10 15 5 5 10 15 5 10 15 5 10 15 5 10 15 5 10 15 0.61 1.5 4 -0.61 -1.8 -1.5 -4 4.95 9.95 14.95 3.5 7 11 0.05 0.05 0.05 1.5 3 4 - 0.42 1.1 2.8 -0.42 -1.3 -1.1 -2.8 4.95 9.95 14.95 3.5 7 11 0.05 0.05 0.05 1.5 3 4 - mA mA mA mA mA mA mA V V V V V V V V V V V V II - 0, 15 15 - ±0.1 - ±1 μA IOZ 0, 15 0, 15 15 - ±0.4 - ±12 μA IDD IOL HIGH-level output current IOH LOW-level output voltage VOL HIGH-level output voltage VOH LOW-level input voltage VIL HIGH-level input voltage VIH XBLW version 1.0 Tamb=-40℃ Min. Max. - LOW-level output current input leakage current OFF-state output current Conditions(V) VO VIN VDD 文档仅供参考，实际应用测试为准 ｗｗｗ．ｘｉｎｂｏｌｅｉｃ．ｃｏｍ　　　　技术支持热线：４００９６８２００３ 第 7 页 共 16 页 XBLW CD4094 8-Stage Serial Shift Register AC Characteristics (Tamb=25℃, VSS=0V, tr,tf=20ns,CL=50pF,RL=200KΩ,unless otherwise specified.) Parameter Symbol Conditions CP to QS1; see Figure 6 propagation delay time CP to QS2; see Figure 6 tPHL, tPLH CP to QPn; see Figure 6 STR to QPn; see Figure 7 HIGH to OFF-state/OFF -state to HIGH propagation delay tPHZ, tPZH OE to QPn; see Figure 8 LOW to OFF-state/OFFstate to LOW propagation delay tPLZ,tPZL OE to QPn; see Figure 8 minimum HIGH strobe pulse; see Figure 7 pulse width tW data setup time tSU D to CP; see Figure 9 transition time tt - clock input rise and fall time trCL, tfCL - Maximum clock frequency fmax see Figure 6 input CI XBLW version 1.0 minimum LOW clock pulse; see Figure 6 VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V Min. Typ. Max. Unit 15 5 5 1.25 2.5 3 300 125 95 230 110 75 420 195 135 290 145 100 140 60 45 100 50 40 100 40 35 100 50 40 60 30 20 100 50 40 2.5 5 6 5 600 250 190 460 220 150 840 390 270 580 290 200 280 120 90 200 100 80 200 80 70 200 100 83 125 55 35 200 100 80 7.5 ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns us us us MHz MHz MHz pF any input 文档仅供参考，实际应用测试为准 ｗｗｗ．ｘｉｎｂｏｌｅｉｃ．ｃｏｍ　　　　技术支持热线：４００９６８２００３ 第 8 页 共 16 页 XBLW CD4094 8-Stage Serial Shift Register capacitance Note: tt is the same as tTLH and tTHL. Testing Circuit AC Testing Circuit Figure 5. Test circuit for switching times Definitions for test circuit: DUT=Device Under Test CL=Load capacitance including jig and probe capacitance. RT=Termination resistance should be equal to the output impedance Zo of the pulse generator. RL=Load resistance VEXT=External voltage for measuring switching times XBLW version 1.0 文档仅供参考，实际应用测试为准 ｗｗｗ．ｘｉｎｂｏｌｅｉｃ．ｃｏｍ　　　　技术支持热线：４００９６８２００３ 第 9 页 共 16 页 XBLW CD4094 8-Stage Serial Shift Register AC Testing Waveforms Figure 6. Clock to outputs propagation delays, and clock pulse width and maximum frequency Figure 7. Strobe to output propagation delays, and strobe pulse width, set up and hold times XBLW version 1.0 文档仅供参考，实际应用测试为准 ｗｗｗ．ｘｉｎｂｏｌｅｉｃ．ｃｏｍ　　　　技术支持热线：４００９６８２００３ 第 10 页 共 16 页 XBLW CD4094 8-Stage Serial Shift Register Figure 8. 3-state output enable and disable times for OE input Figure 9. Data input data set up and hold times XBLW version 1.0 文档仅供参考，实际应用测试为准 ｗｗｗ．ｘｉｎｂｏｌｅｉｃ．ｃｏｍ　　　　技术支持热线：４００９６８２００３ 第 11 页 共 16 页 XBLW CD4094 8-Stage Serial Shift Register Measurement Points Supply voltage VDD 5V to 15V Input VM 0.5×VDD Output VX 0.1×VDD VM 0.5×VDD VY 0.9×VDD Test Data Supply voltage VDD VI tr, tf CL RL 5V to 15V VSS or VDD ≤20ns 50pF 1KΩ XBLW version 1.0 Input Load tPHL,tPLH Load tPHZ,tPZH tPLZ,tPZL open VSS VDD 文档仅供参考，实际应用测试为准 ｗｗｗ．ｘｉｎｂｏｌｅｉｃ．ｃｏｍ　　　　技术支持热线：４００９６８２００３ 第 12 页 共 16 页 XBLW CD4094 8-Stage Serial Shift Register Package Information DIP16 Symbol A A1 A2 B B1 C D E E1 e L E2 XBLW version 1.0 Dimensions In Millimeters Min Max 3.710 4.310 0.510 3.200 3.600 0.380 0.570 1.524(BSC) 0.204 0.360 18.800 19.200 6.200 6.600 7.320 7.920 2.540(BSC) 3.000 3.600 8.400 9.000 Dimensions In Inches Min Max 0.146 0.170 0.020 0.126 0.142 0.015 0.022 0.060(BSC) 0.008 0.014 0.740 0.756 0.244 0.260 0.288 0.312 0.100(BSC) 0.118 0.142 0.331 0.354 文档仅供参考，实际应用测试为准 ｗｗｗ．ｘｉｎｂｏｌｅｉｃ．ｃｏｍ　　　　技术支持热线：４００９６８２００３ 第 13 页 共 16 页 XBLW CD4094 8-Stage Serial Shift Register SOP16 Symbol A A1 A2 b c D E E1 e L θ XBLW version 1.0 Dimensions In Millimeters Min Max 1.350 1.750 0.100 0.250 1.350 1.550 0.330 0.510 0.170 0.250 9.800 10.200 3.800 4.000 5.800 6.200 1.270(BSC) 0.400 1.270 0° 8° Dimensions In Inches Min Max 0.053 0.069 0.004 0.010 0.053 0.061 0.013 0.020 0.007 0.010 0.386 0.402 0.150 0.157 0.228 0.244 0.050(BSC) 0.016 0.050 0° 文档仅供参考，实际应用测试为准 ｗｗｗ．ｘｉｎｂｏｌｅｉｃ．ｃｏｍ　　　　技术支持热线：４００９６８２００３ 8° 第 14 页 共 16 页 XBLW CD4094 8-Stage Serial Shift Register TSSOP16 SYMBOL A A1 A2 A3 b b1 c c1 D E E1 e L L1 θ XBLW version 1.0 MIN 0.05 0.90 0.39 0.20 0.19 0.13 0.12 4.90 6.20 4.30 0.45 0 MILLIMETER NOM 1.00 0.44 0.22 0.13 5.00 6.40 4.40 0.65BSC 0.60 1.00BSC - 文档仅供参考，实际应用测试为准 ｗｗｗ．ｘｉｎｂｏｌｅｉｃ．ｃｏｍ　　　　技术支持热线：４００９６８２００３ MAX 1.20 0.15 1.05 0.49 0.28 0.25 0.17 0.14 5.10 6.60 4.50 0.75 8° 第 15 页 共 16 页 XBLW CD4094 8-Stage Serial Shift Register Statements And Notes Part name Lead and lead compounds Lead frame ○ Plastic resin ○ ○ ○ ○ ○ ○ Chip ○ ○ ○ ○ ○ The lead Plastic sheet installed ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ explanation Cadmium and cadmium compounds ○ Hazardous substances or Elements Polybro Hexavalent Polybro minated Dibutyl chromium minated biphenyl phthalate compounds biphenyls ethers ○ ○ ○ ○ Mercury and mercury compounds ○ Butyl benzyl phthalate Di-2ethylhexyl phthalate Diisobutyl phthalate ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○: Indicates that the content of hazardous substances or elements in the detection limit of the following the SJ/T11363-2006 standard. ×: Indicates that the content of hazardous substances or elements exceeding the SJ/T11363-2006 Standard limit requirements Statement：  Shenzhen xinbole electronics co., ltd. reserves the right to change the product specifications, without notice! Before placing an order, the customer needs to confirm whether the information obtained is the latest version, and verify the integrity of the relevant information.  Any semiconductor product is liable to fail or malfunction under certain conditions, and the buyer shall be responsible for complying with safety standards in the system design and whole machine manufacturing using Shenzhen xinbole electronics co., ltd products, and take appropriate security measures to avoid the potential risk of failure may result in personal injury or property losses of the situation occurred!  Product performance is never ending, Shenzhen xinbole electronics co., ltd will be dedicated to provide customers with better performance, better quality of integrated circuit products. XBLW version 1.0 文档仅供参考，实际应用测试为准 ｗｗｗ．ｘｉｎｂｏｌｅｉｃ．ｃｏｍ　　　　技术支持热线：４００９６８２００３ 第 16 页 共 16 页
