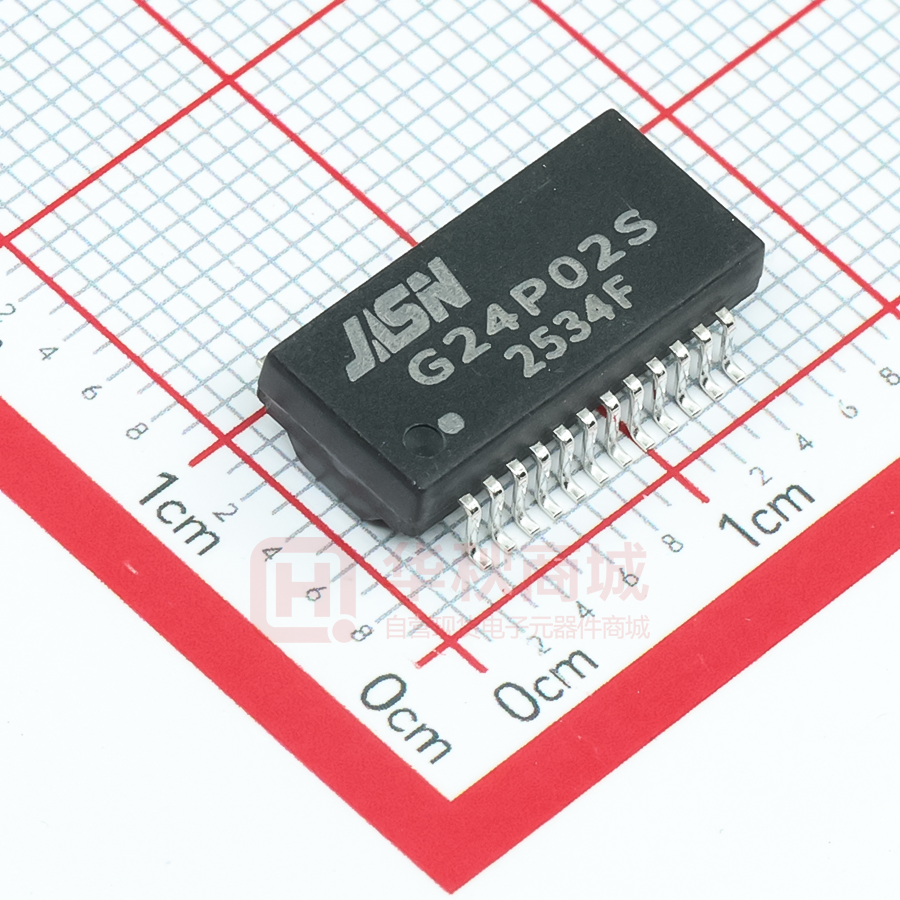

G24P02S

10/100/1000 BASE-T SINGLE PORT MAGNETICS MODULE Rev:A/0 P/N: G24P02S DATA SHEET Feature Compliant with IEEE 802.3ab standard. Comply with RoHS requirements. Operating temperature range: 0℃ to +70℃. Storage temperature range: -25℃ to +105℃. Electrical Specifications @ 25℃ OCL: 350uH Min. @100KHz/0.1V with 8mA DC Bias Hi-POT : 1500Vrms Turn Ratio: 1:1±3% LK: 0.5uH Max @100KHz/0.2V Cw/w 30PF Max @100KHz/0.2V D.C.R: 1.2 ohm Max Insertion Loss: 1-100MHz: -1.0dB Max Cross Talk : 1-100MHz：-30dB Min CMRR: 1-100MHz：-30dB Min Return Loss: 1-30MHz 40MHz 50MHz -18dB Min -14.4dB Min -13.1dB Min Schematic 60-80MHZ 80-100MHZ -12dB Min -10dB Min Mechanical 1 24 2 23 3 22 4 21 5 20 6 19 7 18 8 17 9 16 10 15 11 14 12 13 Unless otherwise specified, all tolerances are ±0.25 Http://www.jansum.cn E-mail:sales@jansum.cn Tel:+86-769-86299641 Fax:+86-769-86299645
