UMW
R
ESD5B5VL
Descriptions
The ESD5B5VL is a bi-directional TVS (Transient Voltage
Suppressor). It is specifically designed to protect sensitive
electronic components that may be subjected to ESD
Pin1
Pin2
(Electrostatic Discharge), EFT (Electrical Fast Transients)
and Lightning. It is particularly well-suited for cellular phones,
portable device, digital cameras, power supplies and many
Circuit diagram
other portable applications because of its small package and
low weight.
The ESD5B5VL may be used to provide ESD protection up to
±8kV (contact discharge) according to IEC61000-4-2, and
withstand peak pulse current up to 3.5A (8/20μs) according
to IEC61000-4-5.

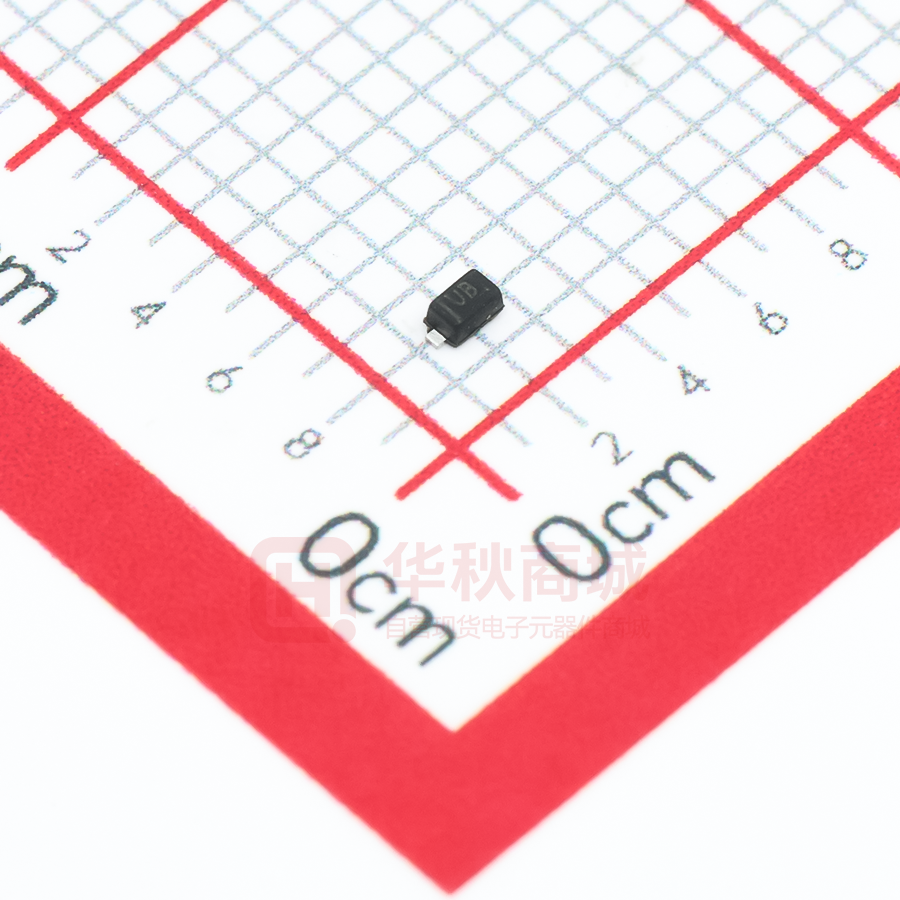

The ESD5B5VL is available in SOD-523 package. Standard
products are Pb-free and Halogen-free.
Features
Applications
Stand-off voltage: ±5V Max
Cell phone handsets and accessories
Transient protection for each line according to
Personal Digital Assistants (PDAs)
IEC61000-4-2 (ESD): ±8kV (contact discharge)
Notebooks, Desktops, and Serves
IEC61000-4-4 (EFT): 40A (5/50ns)
Portable Instrumentation
IEC61000-4-5 (surge): 3.5A (8/20μs)
Digital Cameras
Capacitance: CJ = 5pF typ.
MP3/MP4/PMP Players
Solid-state silicon technology
www.umw-ic.com
1
UTD Semiconductor Co.,Limited
UMW
R
ESD5B5VL
Absolute maximum ratings
Parameter
Symbol
Rating
Unit
Peak pulse power (tp = 8/20μs)
Ppk
50
W
Peak pulse current (tp = 8/20μs)
IPP
3.5
A
ESD according to IEC61000-4-2 air discharge
±15
VESD
ESD according to IEC61000-4-2 contact discharge
Junction temperature
TJ
Operating temperature
TOP
Lead temperature
TL
Storage temperature
kV
±8
TSTG
125
o
-40~85
o
260
o
-55~150
o
C
C
C
C
Electrical characteristics (TA=25°C, unless otherwise noted)
Parameter
Symbol
Reverse stand-off voltage
VRWM
Reverse leakage current
IR
Condition
Min.
Typ.
VRWM = 5V
Max.
Unit
±5
V
1
uA
Reveres breakdown voltage
VBR12
IT=1mA
6.5
7.7
8.1
V
Forward voltage
VBR21
IF=1mA
6.5
7.8
8.1
V
Clamping voltage
VCL
Clamping voltage
VC
Junction capacitance
www.umw-ic.com
VESD = 8kV
20
V
Ipp=1A tp=8/20us
10
V
Ipp=3.5A tp=8/20us
14
V
VR = 0V, f = 1MHz
5.0
10
pF
VR =5V, f = 1MHz
2.5
5
pF
CJ
2
UTD Semiconductor Co.,Limited
UMW
R
ESD5B5VL
Typical characteristics (TA=25oC, unless otherwise noted)
Current (%)
Peak pulse current (%)
100
90
Front time: T1= 1.25 × T = 8µs
Time to half-value: T2= 20µs
100
90
50
T2
10
0
0
10
20
T
T1
tr = 0.7~1ns
VC - Clamping voltage (V)
C - Junction capacitance (pF)
Pulse waveform: tp = 8/20µs
14
13
12
Pin2 to Pin1
11
10
9
Pin1 to Pin2
8
7
Time (ns)
Contact discharge current waveform per IEC61000-4-2
8/20μs waveform per IEC61000-4-5
15
t
60ns
30ns
Time (µs)
5.0
Fsignal =1MHz
4.5
Vsignal =50mVrms
4.0
3.5
3.0
2.5
0
1
2
3
IPP - Peak pulse current (A)
4
-5
Clamping voltage vs. Peak pulse current
-4
-3
-2 -1 0 1 2 3
VR - Reverse voltage (V)
4
5
Capacitance vs. Reverse voltage
1000
100
% of Rated power
Peak pulse power (W)
100
10
80
60
40
20
1
0
1
10
100
Pulse time (µs)
1000
25
50
75
100
125
150
o
TA - Ambient temperature ( C)
Non-repetitive peak pulse power vs. Pulse time
www.umw-ic.com
0
Power derating vs. Ambient temperature
3
UTD Semiconductor Co.,Limited
UMW
R
ESD5B5VL
ESD clamping
ESD clamping
(-8kV contact discharge per IEC61000-4-2)
(+8kV contact discharge per IEC61000-4-2)
www.umw-ic.com
4
UTD Semiconductor Co.,Limited
UMW
R
ESD5B5VL
Package outline dimensions
SOD-523
D
-X-Y2
1
E
DIMENSIONS
SYMBOL
b 2x
0.08 (0.0032)
A
b
C
D
E
HE
L
Y
X
A
C
HE
L
MILLIMETER
INCHES
MIN
MAX
MIN
MAX
0.50
0.25
0.07
1.10
0.70
1.50
0.15
0.70
0.35
0.20
1.30
0.90
1.70
0.25
0.020
0.010
0.0028
0.043
0.028
0.059
0.006
0.028
0.014
0.0079
0.051
0.035
0.067
0.010
Marking
Ordering information
Order code
UMW ESD5B5VL
www.umw-ic.com
Baseqty
Package
3000
SOD-523
5
Delivery mode
Tape and reel
UTD Semiconductor Co.,Limited
