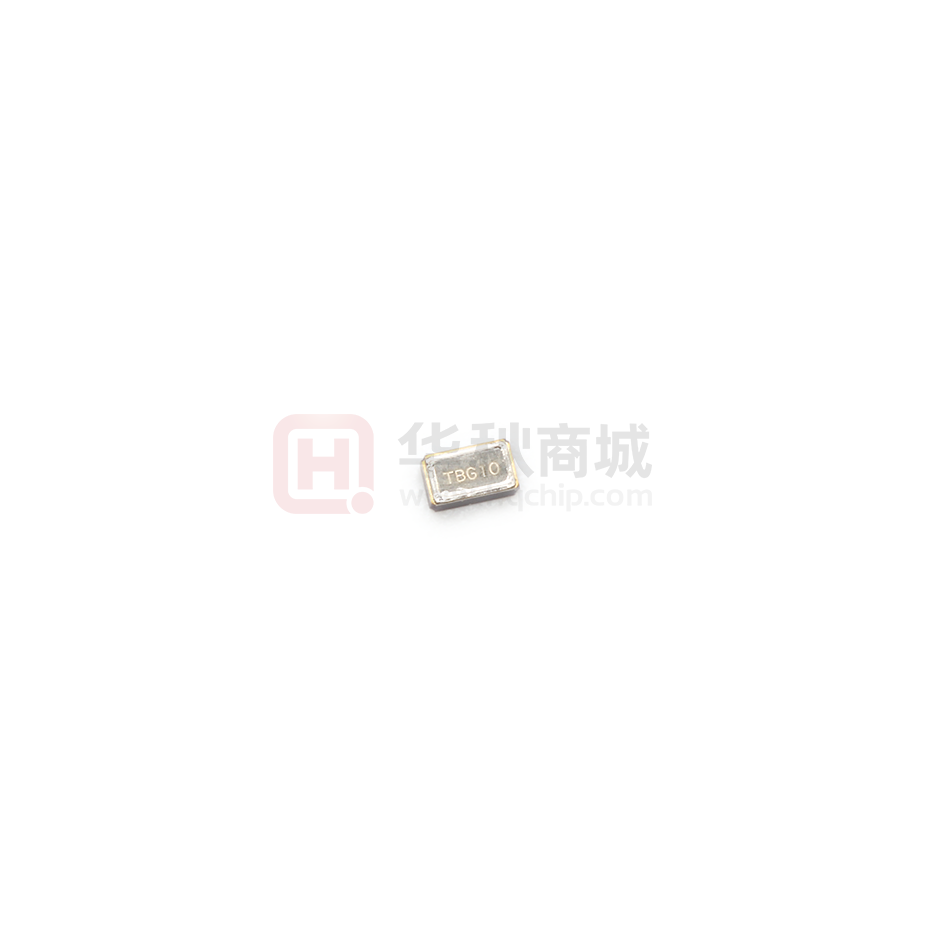

9H03200010

TXC CORPORATION 4F, NO. 16, Sec. 2 Chung Yang S Rd., Peitou, Taipei, Taiwan. TEL : 886-2-2894-1202 , 886-2-2895-2201 FAX : 886-2-2894-1206 , 886-2-2895-6207 www.txccorp.com PRODUCT SPECIFICATION SHEET PRODUCT TYPE : SMD TA TYPE NOMINAL FREQ. : 32.768KHz TXC P/N : 9H03200010 REVISION : A1 PE/RD QA MFG 2015/8/4 2015/8/4 2015/8/4 NOTE: (1)Lead Free Products are "Directive 2002/95/EC of The European Parliament of 27 January 2003 on the restriction of the use of certain hazardous substances (RoHS) in electrical and electronic equipment" Compliant (Attachment: SGS Test Report). (2)Revision "Sx" is for engineering samples only. PE/RD's approval required. (3)Revision "Ax" is production ready. PE, QA and MFG's approval required RoHS Compliant FMT-DOC024 Issue Date: 12.15'08 VER.E TXC CORPORATION Rev Revise page A NA FMT-DOC024 TXC P/N： 9H03200010 Revise contents Initial release REVISION： A1 PAGE： 1 Date Ref.No. Reviser 8-Jul-11 - Simon Wang Issue Date: 12.15'08 VER.E TXC P/N： 9H03200010 TXC CORPORATION REVISION： A1 PAGE： 2 ■ ELECTRICAL SPECIFICATIONS Parameters SYM. 1 Nominal Frequency 2 Frequency Tolerance Electrical Spec. MIN TYPE MAX F0 32.768 KHz - ± 20 ppm 3 Driver Level DL 4 Load Capacitance CL 5 Series Resistance - - - 6 Peak Temperature (Frequency) - 20 7 Frequency-Temperature coefficent - - 8 Storage Temperature - 9 Operating Temperature 0.1 0.5 at 25 ℃ uW - pF - 90 KΩ - 25 30 ℃ - -0.04 ppm/℃ -55 ~ 125 ℃ - - -40 ~ 85 ℃ - 10 Shunt Capacitance C0 - 1.3 - pF - 11 Motional Capacitance C1 - 6.4 - fF - 12 Insulation Resistance - 500 - - MΩ at DC 100V±15V 13 Aging - ppm 1st Year ■ DIMENSIONS - Notes UNITS 9.0 ±3 at 25 ℃ ±5℃ - 2 ■ RECOMMENDED SOLDER PAD (UNIT:mm) (UNIT:mm) ■ SUGGESTED REFLOW PROFILE ■ TEMPERATURE V.S FREQENCY CURVE Total time : 200 sec. Max. -40 Solder melting point :220℃ (℃) 25 85 TEMP (oC) 10 sec 260 220 -130 180 150 △f/fo(ppm) Time (sec) 120 sec FMT-DOC024 60 sec Issue Date: 12.15'08 VER.E TXC P/N： 9H03200010 TXC CORPORATION REVISION： A1 PAGE： 3 ■ MARKING TXC Use Frequency/CL Code Date Code Frequency /CL Code KHz PF CODE 32.768 12.5 A 32.768 9 B XXXXX TXC Use Code Date Code MONTH YEAR JAN FEB MAR APR MAY JUN JUL AUG SEP OCT NOV DEC 2001 2005 2009 2013 2017 A B C D E F G H J K L 2002 2006 2010 2014 2018 N P Q R S T U V W X Y Z 2003 2007 2011 2015 2019 a b c d e f g h j k l m 2004 2008 2012 2016 2020 n p q r s t u v w x y z M This date code will be cycled every four years ■ PACKING(UNIT:mm) Amount PCS/REEL 3K 3000 pieces of taped crystal units are put into a packing reels REMARK : 1. 230 mm (9.05) minimum leader which consist of carrier and/or tape followed by a minimum of 160 mm (6.3) of empty carrier tape sealed with cover tape. 2. 160 mm (6.3) minimum trailer of empty carrier tape sealed with cover tape. FMT-DOC024 Issue Date: 12.15'08 VER.E TXC CORPORATION TXC P/N： 9H03200010 REVISION： A1 PAGE： 4 ■ STRUCTURE ILLUSTRATION COMPONENTS NO MATERIALS QTY 1 FINISH/SPECIFICATIONS 1 Lid Kovar (Fe/Co/Ni) 2 Base(Package) Ceramic(AI2O3) - 1 Color Black 3 Crystal blank SiO2 1 - 4 Electrode Noble Metal 2 - 5 Internal terminals Au 2 Tungsten metallize + Ni plating + Au plating 6 Metallize for sealing Au 1 Tungsten metallize + Ni plating + Au plating 7 PAD Au 2 Tungsten metallize + Ni plating + Au plating 8 Conductive adhesive Ag 2 Silicon resin ■ UNIT WEIGHT: 0.005 g/pcs FMT-DOC024 Issue Date: 12.15'08 VER.E TXC CORPORATION TXC P/N： 9H03200010 REVISION： A1 PAGE： 5 ■ RELIABILITY SPECIFICATIONS 1.Mechanical Endurance No. Test Item 1.1 Drop Test REF. DOC Test Methods JIS C6701 150 cm height, fall freely onto concrete floor 3 times. 1.2 Mechanical Shock 1.3 Vibration Device are shocked to half sine wave ( 1000 G ) three mutually perpendicular axes each 3 times. 1m sec. duration time Frequency range 10 ~ 55 Hz Amplitude 1.5 mm,20G Sweep time 1 minute Perpendicular axes each test time JIS C60068-2-27 JIS C60068-2-6 2 hours (Total test time 6 hours) 1.4 Solderability Temperature 255 ℃ ± 5℃ Immersing depth 0.5 mm minimum Immersion time 3.5 ± 0.5 seconds Flux Rosin resin methyl alcohol MIL-STD-883 solvent ( 1 : 4 ) 2.Environmental Endurance No. Test Item 2.1 Resistance To Soldering Heat Test Methods Pre-heat temperature 160 ℃ Pre-heat time 90 ± 10 sec. Test temperature 260 ± 5 ℃ Test time 5 ± 1 sec. REF. DOC MIL-STD-202 2.2 High Temp. Storage + 100 ℃ ± 3 ℃ for 100 ± 12 hours JIS C600682-2 2.3 Low Temp. Storage - 40 ℃ ± 3 ℃ for 1000 ± 12 hours JIS C600682-1 Total 100 cycles of the following temperature cycle 2.4 Thermal Shock 100℃ JIS C0025 25℃ -40℃ 30min 30 5 min.max 2.5 Pressure Cooker Storage 121 ± 3℃, RH100%, 2 bar, for 240 hours 2.6 High Temp＆Humidity 40℃ ± 3℃, RH 90~95% , 1000Hrs FMT-DOC024 JIS C6701 JIS C600682-3 Issue Date: 12.15'08 VER.E
