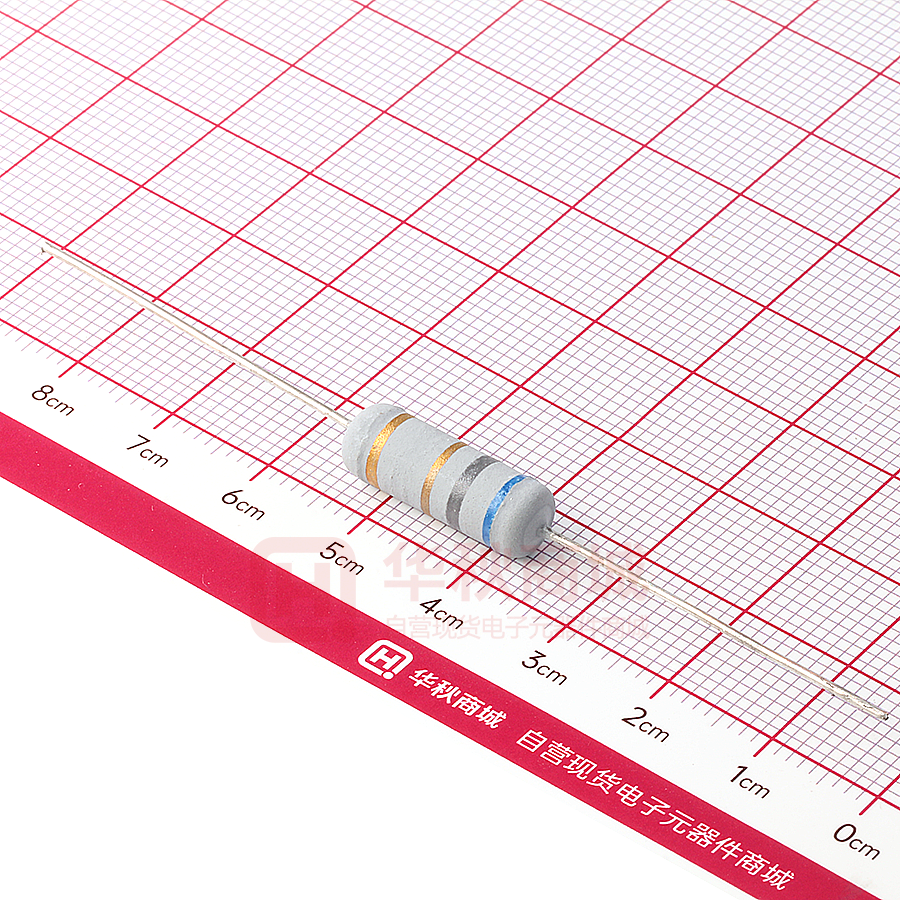

RY18JOT6R8

APPROVAL SHEET RY SERIES METAL OXIDE FILM RESISTORS PRODUCE CHECK AND APPROVE ACCEPTED BY EM CE HONORABLE CUSTOMER Edison Chen Charles Chen Feb.21, 2022 Feb.21, 2022 www.thunder-resistor.com sales@thunder-resistor.com page 1 of 10 1. PRODUCT: METAL OXIDE FILM RESISTORS FEATURES · Low TCR: lower than ±100ppm/℃. · High temperature working capability · High power load reliability · Small physical size · Flameproof · Low cost part with high cost performance · Tighten tolerance is available on request · Non-inductance performance is available upon request APPLICATIONS · Power supply with high reliability · Components burn-in devices · Special suited for circuitry where functions, environments and duty cycles demand power resistors www.thunder-resistor.com sales@thunder-resistor.com page 2 of 10 2. PART NUMBER: Part number of the metal oxide film resistor is identified by the series name, power and size code, tolerance, temperature coefficient, packing type and resistance value. Example： RY Series 17S Power (1) Series: J Tol. 1 TCR T Packing 121 Resistance RY series metal oxide film resistors (2) Power Rating: 15=1/2W; 16=1.0W; 17=2.0W; 18=3.0W; 19=5.0W; M：tiny size; S：small size; “ “ : normal size (3) Tolerance: F=±1.0%; G=±2.0%; J=±5.0% (4) T.C.R.: 2= 50ppm/℃; 1= 100ppm/℃; 0= >100ppm/℃ (5) Packaging Type: B = BULK/BOX ； T = Tape on Box Packing M = M type deforming F = F type deforming (6) Resistance Value for J tolerance: R47、1R0、100、101、102、333、104…… (7) Resistance Value for tighten tolerance: R470、1R00、10R0、1000、1001、1002 www.thunder-resistor.com sales@thunder-resistor.com page 3 of 10 3. COLOR-CODE MARKING: The standard color code per IEC EN 60062:2005 is as follows G(±2.0%)、J(±5.0%) and K(±10.0%) tolerance resistors have 2 bands for significant figures, the 3rd one is multiplier index, the 4th one is tolerance band. F(±1.0%) tolerance resistors have 3 bands for significant figures, the 4rd one is multiplier index, the 5th one is tolerance band. www.thunder-resistor.com sales@thunder-resistor.com page 4 of 10 4. ELECTRICAL CHARACTERISTICS * Unless otherwise specified, all values are tested at the following condition: Temperature: 21℃ to 25℃; Relative humidity: 45% to 70% Power Rating  Resistance Value * Rated Continuous Working Voltage (RCWV)= * Temperature coefficient out of range is available upon request. www.thunder-resistor.com sales@thunder-resistor.com page 5 of 10 5. Dimension and packing in tape/box www.thunder-resistor.com sales@thunder-resistor.com page 6 of 10 6. DERATING CURVE normal size resistors; small size and mini size resistors For resistors working at an ambiance temperature of 70℃ or above, the power rating shall be derated in accordance with the above curves. www.thunder-resistor.com sales@thunder-resistor.com page 7 of 10 7. FK type deforming for 1W and 2WS size 8. M type deforming Different dimension of deforming is available upon request. www.thunder-resistor.com sales@thunder-resistor.com page 8 of 10 9. ENVIRONMENTAL CHARACTERISTICS (1) Insulation Resistance IEC 60115-1, 4.6: in V-block for 60 seconds, the test resistance should be high than 1,000 M Ohm. (2) Dielectric Withstanding Voltage IEC 60115-1 4.7: flashover. (3) Place resistors in V-block for 60 Seconds, no breakdown or Temperature Coefficient Test IEC 60115-1, 4.8: Test of resistors at room temperature and 60°C or 100°C on request above room temperature. Then measure the resistance. The Temperature Coefficient is calculated by the following equation and its value should be within the range requested. R  R0 1 Re sistor Temperature Coefficient    10 6 R0 t  t0 R = Resistance value under the testing temperature R0 = Resistance value at the room temperature t = the 2nd testing temperature t0 = Room temperature (4) Short Time Overload Test IEC60115-1 4.13: At 10 times rated voltage or 2 times the maximum working voltage whichever is lower for 5 seconds, the resistor should be free from defects. The change of the resistance value should be within ±(0.25%+0.05 Ω) for precision type and ±(1.0%+0.05 Ω) for commercial type as compared with the value before the test. (5) Solderability IEC 60115-1, 4.17: 235±5°C for 3±0.5 Seconds, there are at least 95% solder coverage on the termination. (6) Resistance to soldering heat: IEC 60115-1, 4.18: 260±3°C for 10±1 Seconds, immersed to a point 3±0.5mm from the body. The change of the resistance value should be within ±(0.25%+0.05 Ω) for precision type and ±(1.0%+0.05 Ω) for commercial type as compared with the value before the test. www.thunder-resistor.com sales@thunder-resistor.com page 9 of 10 (7) Damp Heat Steady State IEC 60115-1, 4.24: 40±2°C, 90-95% RH for 56 days, loaded with 0.1 times RCWV or the maximum working voltage whichever is lower. The change of the resistance value should be within ±(0.50%+0.05 Ω) for precision type and ±(5.0%+0.05 Ω) for commercial type as compared with the value before the test. (8) Load Life Test IEC 60115-1, 4.25: 70±2°C at RCWV or the maximum working voltage whichever is lower for 1,000+48/-0 Hr. (1.5Hr. on, 0.5Hr. off). The resistors shall be arranged not much effected mutually by the temperature of others and the excessive ventilation shall not be performed. The change of the resistance value should be within ±(0.50%+0.05 Ω) for precision type and ±(5.0%+0.05 Ω) for commercial type as compared with the value before the test. (9) Accidental Overload Test IEC 60115-1, 4.26: 4 times RCWV for 1 Minute. No evidence of flaming or arcing (10) Resistance to Solvent IEC 60115-1, 4.30: IPA for 5±0.5 Min. with ultrasonic. No deterioration of coating and color code occurred. Disclaimer All products, product specifications and data are subject to change without notice to improve reliability, function, or design or otherwise. Thunder Precision Resistors makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product to the maximum extent permitted by applicable law. www.thunder-resistor.com sales@thunder-resistor.com page 10 of 10
