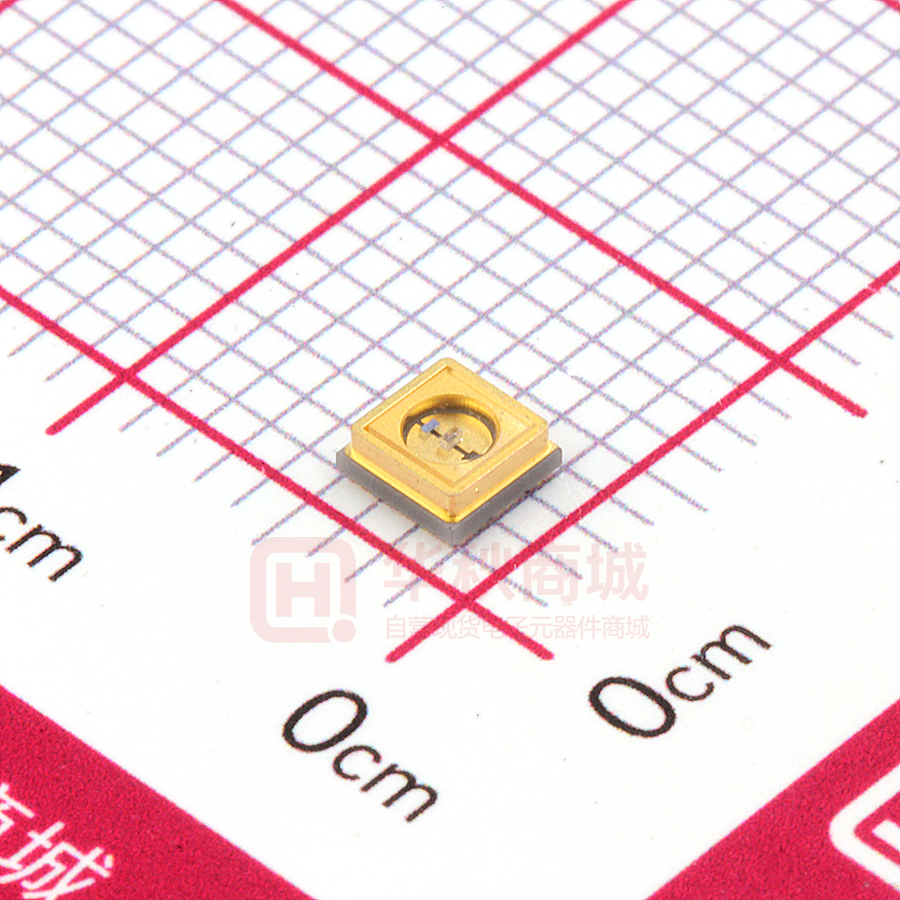

F.35.00047/TZ35UVC02-018

深圳市拓展光电有限公司 SHENZHEN DEVELOPMENT PHOTOELECTRIC CO., LTD SPECIFICATION Model: TZ35UVC02-018 Date: 2020/7/24 SZTZ-DS-047 NO: Par NO: F.35.00047 承制方确认 制作 审核 业务 品质 采购 品质 接受方确认 工程制定 工程审核 ADD:深圳市宝安区西乡铁岗宝田一路369号拓展工业区 TEL：0755-29632541 www.shineon.cn http://www.tiepianled.com 版本 修订日期 文件修订内容 备注 A0 2020/7/24 首次发行 魏峰 制作 胡满意 日期 2020年7月24日 核准 魏峰 日期 2020年7月24日 版本号 A0 受控日期 2020年7月24日 www.shineon.cn TZ35UVC02-018 Datasheet The 3535 LED light source is a high-performance energysaving device that can handle high heat and high drive current. 此 款 3535 LED光源是一种高性能节能器件，可以处理高热量和高 驱动电流。 The Purple LED light source with peak wavelength ranging from 270nm to280nm. 紫外LED光源峰值波长为270nm ~280nm. This part has a foot print that is compatible to most of the same size LED in the market today. 此器件的焊盘兼容当今市场上大部分相同大小的LED。 FEATURES/特点 ◼ ◼ ◼ ◼ ◼ ◼ APPLICATIONS/应用 Deep UV LED with emission wavelength between 270nm to 280nm 具有发射波长的深紫外光LED在270nm至 280nm. Compatible with reflow soldering process 兼容回流焊工艺 Low thermal resistance/热阻低 Wide viewing angle at 120° 120° 大发光角度 Superior ESD protection 优越的ESD保护 Environmental friendly, RoHS compliance 材质环保，符合RoHS要求 ◼ ◼ ◼ ◼ ◼ Personal hygiene 个人卫生 Portable devices 便携设备 Water disinfection 水消毒 Surface disinfection 表面消毒 Air disinfection 空气消毒 Note: The information in this document is subject to change without notice. 注：本文件中的信息如有变更，恕不另行通知。 ShenZhen TUOZHAN Optoelectronics CO.,LTD Http://www.tzled.net www.shineon.cn TZ35UVC02-018 PACKAGE DIMENSIONS 封装尺寸 Recommended Solder Pad Design 推荐焊盘设计 Notes/ 注: 1. All dimensions in millimeters.所有尺寸单位为mm 2. Thickness tolerance of copper plate is ±0.02mm. 铜材料片厚度公差为±0.02mm 3. Thickness tolerance of product is ±0.05mm. 产品厚度公差为±0.05mm 4. Tolerance is ±0.1mm unless otherwise noted. 如未特别注明，默认公差为±0.1mm ShenZhen TUOZHAN Optoelectronics CO.,LTD Http://www.tzled.net TZ35UVC02-018 ABSOLUTE MAXIMUM RATINGS最大限定参数（UVC）（Ta=25℃） Parameter 项目名称 Symbol 符号 Value 规格 Unit 单位 Forward current 正向电流 IF 50 mA Reverse Voltage 反向电压 VR 5 V Power Dissipation 消耗功率 Pd 240 mW Operating Temperature 工作温度 Topr -40~+80 ℃ Storage Temperature 储存温度 Tstg -40~+80 ℃ Soldering Temperature 焊接温度 Tsld LED Solder Temperature焊点温度 Ts Reflow Soldering: 260℃ for 10 seconds 80 ℃ CHARACTERISTICS光电参数(UVC)(Ta=25℃) Parameter 项目名称 Symbol 单位 Conditio n 条件 Min 最小值 Typ 中间值 Max 最大值 Unit 单位 Reverse Current反向电流 IR VR=5V -- -- 1 uA Forward Voltage正向电压 VF IF=40mA 5.0 6.5 8.0 V Viewing Angle发光角度 2θ1/2 IF=40mA -- 120 -- deg. Radiant Flux辐射功率 Φe IF=40mA peak wavelength峰值波长 λP IF=40mA 5 270 275 mW 285 Notes/注: 1. Radiant Flux is measured with an accuracy of ± 5%. 辐射功率的测量精度为± 5%。 2. peak wavelength is measured with an accuracy of ± 5%. 峰值波长的测量精度为± 5%。 3. All measurements were made under the standardized environment of Tuozhan 所有的测量都是在拓展的标准环境下进行的 ShenZhen TUOZHAN Optoelectronics CO.,LTD Http://www.tzled.net nm TZ35UVC02-018 RELATIVE RADIANT FLUX VS. CURRENT相对光通量VS电流 (Tj=25℃)——UVC 10 9 辐射通量(mW) 8 7 6 5 4 3 2 20 30 40 50 60 70 80 90 100 正向电流（mA） ELECTRICAL CHARACTERISTICS 电特性(Tj=25℃)——UVC 7.1 Forward Voltage正向电压（V） 7 6.9 6.8 6.7 6.6 6.5 20 30 40 50 60 Forward Current（mA）正向电流 ShenZhen TUOZHAN Optoelectronics CO.,LTD Http://www.tzled.net 70 80 TZ35UVC02-018 RELATIVE SPECTRAL POWER DISTRIBUTION 相对光谱功率分布 (Tj=25℃) 1 0.9 Relative Radiant Flux相对辐射强度 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 250 255 260 265 270 275 280 285 290 295 300 305 310 Wavelength (nm)波长 CURRENT VS. AMBIENT TEMPERATURE电流与环境温度 45 Maximum Current（mA） 40 35 30 25 20 15 RTH(j-a)=107℃/W 10 5 0 0 10 20 30 40 50 60 70 Ambient Temperature（℃） ShenZhen TUOZHAN Optoelectronics CO.,LTD Http://www.tzled.net 80 90 TZ35UVC02-018 REFLOW SOLDERING CHARACTERISTICS 回流焊特性 For Reflow Process 回流焊制程: Preheating预热 : 120℃~150℃±5℃,within 2 minutes. 2分钟 Operation heating作业加热 : 260℃(Max.) within 10 seconds.(Max) 260℃(最高) within 10 seconds.(最长) Gradual Cooling (Avoid quenching).逐渐冷却(避免淬火) Lead solder 有铅焊接 Pre-heat 预热 Pre-heat time 预热时间 Peak Temperature 峰值温度 Soldering time condition 回流焊时间 120-150℃ 120 sec.Max. 240℃ Max. 10 sec.Max. Lead-free solder 无铅焊接 Pre-heat 预热 Pre-heat time 预热时间 Peak Temperature 峰值温度 Soldering time condition 回流焊时间 150-200℃ 120 sec.Max. 260℃ Max. 10 sec.Max. Notes注: The encapsulated material of the LEDs is Glass . Therefore the LEDs have a fragile surface on the top of package. The pressure to the top surface will be influence to the reliability of the LEDs. Precautions should be taken to avoid the strong pressure on the encapsulated part. So when using the picking up nozzle, the pressure on the glass resin should be proper. 由于LED的封装材料是玻璃，led封装顶部表面是易碎的，顶部表面的压力会影响led的可靠性。应采取预防措 施，以避免密封部件受到强大的压力。因此，在使用吸嘴时，应使玻璃表面的压力适中。 ShenZhen TUOZHAN Optoelectronics CO.,LTD Http://www.tzled.net TZ35UVC02-018 TAPE AND REEL编带 Notes注: (1) Quantity : 1,000pcs/Reel 数量：1000pcs/卷 (2) Cumulative Tolerance : Cumulative Tolerance/10 pitches to be ±0.2mm 累积公差:累积公差/10间距 ±0.2毫米 (3) Adhesion Strength of Cover Tape : Adhesion strength to be 0.1-0.7N when the cover tape is turned off from the carrier tape at the angle of 10ºto the carrier tape 盖带粘附强度:盖带反向拉，与载带角度为10°，拉力为0.1-0.7N (4) Package : P/N, Manufacturing data Code No. and quantity to be indicated on a damp proof Package. 包装 :品名，生产数据代码和数量须在防潮包装上注明 ShenZhen TUOZHAN Optoelectronics CO.,LTD Http://www.tzled.net TZ35UVC02-018 Reliability Test Items 可靠性测试项目 Test Duration 测试时长 Number of Damaged 不良数 Steady State Operating Life of High Temperature (HTOL) Ts=85℃, IF=Max 高温点亮稳态老化Ts=85℃, IF=最大值 1000hrs 0/20 Steady State Operating Life of Low Temperature (LTOL) Ta=-40℃, IF=Max 低温点亮稳态老化Ts=-40℃, IF=最大值 1000hrs 0/20 500hrs 0/20 High Temperature Storage (HTS) 高温存储 80℃ 1000hrs 0/20 Low Temperature Storage (LTS) 低温存储 -40℃ 1000hrs 0/20 100cycles 0/20 Solder Resistance (SR) 265℃, 3X MSL 阻焊测试（3遍潮气敏感度试验后） 5sec 0/20 Solder Ability (SA) 245℃5sec, 95% coverage 可焊性 95%覆盖 5sec 0/11 Each6 axis 0/6 Random Vibration (RV) 随机振动 6G RMS, 10-2000Hz, 10min Per axis 0/6 Variable Vibration Frequency (VVF) 10-2000-10Hz, log or linear sweep rate, 20G for 1 min, 1.5mm each apply 3x per axis over 变频振动(VVF) 10-2000-10Hz，对数或线性扫频，20G, 1分钟， 1.5mm，每轴3遍以上 6hrs 0/6 48hrs 0/11 Test Items 测试项目 Pulse Wet Operating Life of High Temperature (PWHTOL) 高温高湿通断电老化 60℃/90%RH, IF30mins ON/30min OFF Thermal Shock (TS) -45℃~125℃ 30min dwell 20sec transfer 冷热冲击-45℃ 30min~125℃ 30min ，转换时间20秒 Mechanical Shock (MS) 1500G 0.5msec pulse shock 机械冲击(MS) 1500G 0.5毫秒脉冲冲击 Salt Spread (SS) 35℃, 30g/m2/day 盐雾试验35℃,30克/平方米/天 Item 项目 Symbo l 符号 Test Condition 测试条件 Forward Voltage 正向电压 VF IF=Typical Current 典型电流 Radiant Flux 光功率 mW IF=Typical Current peak wavelength 峰值波长 nm IF=Typical Current Criteria for Judgment 判定标准 Min. 最小 Max. 最大 U.S.L x1.1 L.S.L x0.6 ShenZhen TUOZHAN Optoelectronics CO.,LTD Http://www.tzled.net U.S.L x1.1 TZ35UVC02-018 PRECAUTION FOR USE 使用注意事项 (1) This device should not be used in any type of fluid such as water, oil, organic solvent, etc. When washing is required, IPA should be used. 本器件不得用于水、油、有机溶剂等任何流体中。如需清洁，请使用异丙醇进行清洗。 (2) When the LEDs are illuminating, operating current should be decided after considering the ambient maximum temperature. 当LED发光工作时，应根据环境最高温度来确定工作电流。 (3) LEDs must be stored to maintain a clean atmosphere. If the LEDs are stored for 3months or more after being shipped from TuoZhan, a sealed container with a nitrogen atmosphere should be used for storage. LED储存环境须保持清洁。如果LED从拓展发货后需储存3个月或更长时间，则应使用氮气柜进行储存。 (4) The LEDs must be used within seven days after opening the moisture proof packing. Repack unused Products with anti-moisture packing, fold to close any opening and then store in a dry place. LED须在打开防潮包装后七天内使用。用防潮包装重新包装未使用的产品，折叠以封住开口，然后存放在干 燥的地方。 (5) The appearance and specifications of the product may be modified for improvement without notice. 产品外观及规格如有改进，恕不另行通知。 (6) This LED is sensitive to the static electricity and surge. It is recommended to use a wrist Band or anti-electrostatic glove when handling the LEDs. LED对静电和浪涌很敏感。在处理LED时，建议使用防静电腕带或防静电手套。 (7) On manual soldering, a solder tip must be needed as grounded for usage. If over voltage which exceeds the absolute maximum rating is applied to LEDs, it will cause damage LEDs and result in destruction. Damaged LEDs will show some unusual characteristics such as leak current remarkably increase ,turn-on voltage becomes lower and the LEDs get unlighted at low current. 手工焊接时，焊接头必须接地。如果对led施加超过绝对最大额定值的过电压，会对led造成损坏。损坏的 led会出现一些不寻常的特性，如漏电流明显增加，接通电压降低，低电流时led不亮。 (8)Warm prompt “The UV damage eyes，Do not stare at the light source，And don't shine a light into someone's eyes” 温馨提示：“UV伤眼！不要盯着光源看，也不要用光源照射别人的眼睛！” ShenZhen TUOZHAN Optoelectronics CO.,LTD Http://www.tzled.net
