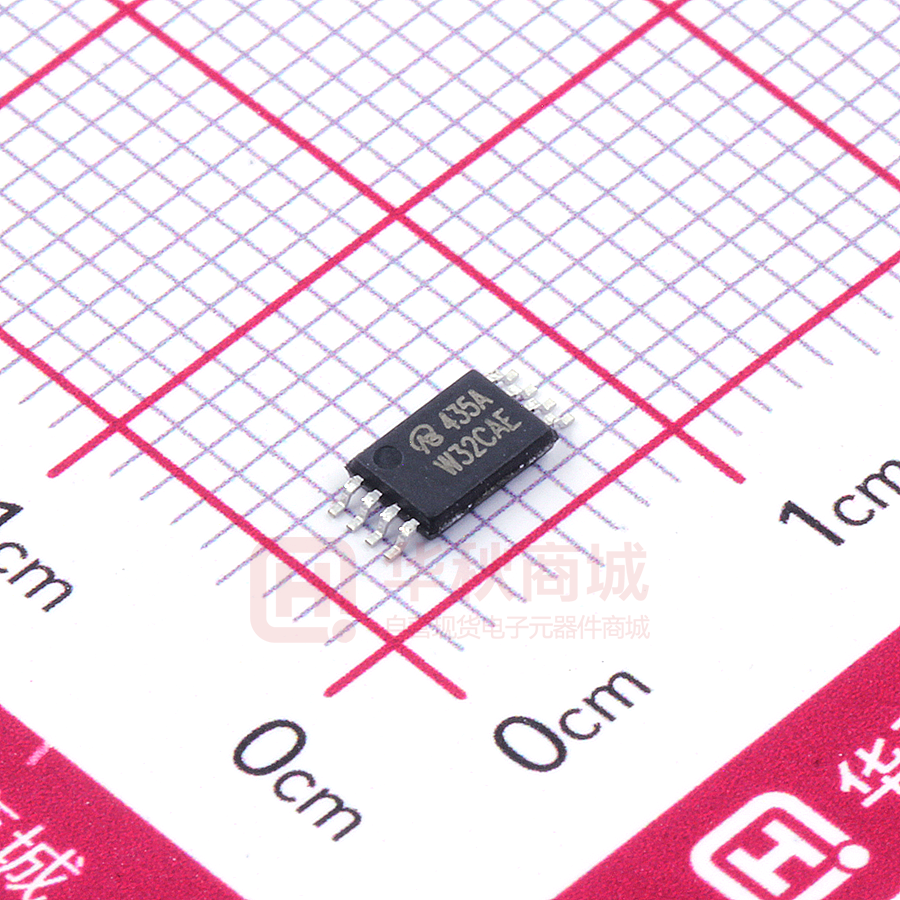

SI6435ADQ-T1-GE3
www.VBsemi.com
P-Channel 20-V (G-S) MOSFET
FEATURES
PRODUCT SUMMARY
VDS (V)
-20
RDS(on) (Ω)
ID (A)
0.012 at V GS = - 4.5 V
- 9.0
0.015 at V GS = - 2.5 V
- 7.8
0.020 at VGS = - 1.8 V
- 6.0
• Halogen-free
• TrenchFET® Power MOSFETs
Pb-free
Available
RoHS*
COMPLIANT
S*
TSSOP-8
D
1
S
2
S
3
G
4
G
8 D
7 S
* Source Pins 2, 3, 6 and 7
must be tied common.
6 S
5 D
Top View
D
P-Channel MOSFET
ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted
Parameter
Symbol
10 s
Steady State
Drain-Source Voltage
VDS
-20
Gate-Source Voltage
VGS
± 12
Continuous Drain Current (TJ = 150 °C)a
TA = 25 °C
TA = 70 °C
Continuous Source Current (Diode Conduction)a
IS
TA = 25 °C
TA = 70 °C
PD
-7.8
- 6.8
-5.8
- 30
- 1.35
- 0.95
1.5
1.05
1.0
0.67
TJ, Tstg
Operating Junction and Storage Temperature Range
V
- 9.0
IDM
Pulsed Drain Current (10 µs Pulse Width)
Maximum Power Dissipationa
ID
Unit
- 55 to 150
A
W
°C
THERMAL RESISTANCE RATINGS
Parameter
Maximum Junction-to-Ambienta
Maximum Junction-to-Foot (Drain)
Symbol
t ≤ 10 s
Steady State
Steady State
RthJA
RthJF
Typical
Maximum
65
83
100
120
43
52
Unit
°C/W
Notes:
a. Surface Mounted on 1" x 1" FR4 board.
服务热线:400-655-8788
1
SI6435ADQ-T1-GE3
www.VBsemi.com
SPECIFICATIONS TJ = 25 °C, unless otherwise noted
Parameter
Symbol
Test Conditions
Min.
Typ.
- 0.45
-
Max.
Unit
Static
VGS(th)
VDS = VGS, ID = - 450 µA
Gate-Body Leakage
IGSS
VDS = 0 V, VGS = ± 8 V
Zero Gate Voltage Drain Current
IDSS
On-State Drain Currenta
ID(on)
VDS = - 5 V, VGS = - 4.5 V
VGS = - 4.5 V, ID = - 8.0 A
0.010
RDS(on)
VGS = - 2.5 V, ID = - 7.0 A
0.012
VGS = - 1.8 V, ID = - 5.8 A
0.016
gfs
VDS = - 5 V, ID = - 8.0 A
44
VSD
IS = - 1.5 A, VGS = 0 V
- 0.56
- 1.1
46
70
Gate Threshold Voltage
Drain-Source On-State
Resistancea
Forward Transconductancea
Diode Forward
Voltagea
VDS = - 20 V, VGS = 0 V
VDS = -20V, V
GS =
1.0
V
± 100
nA
-1
0 V, TJ = 70 °C
- 25
- 20
µA
A
Ω
S
V
Dynamicb
Total Gate Charge
Qg
Gate-Source Charge
Qgs
Gate-Drain Charge
Qgd
Turn-On Delay Time
td(on)
VDS = - 10 V, VGS = - 4.5 V, ID = - 8.0 A
15.5
VDD = - 10 V, R
L=6Ω
ID ≅ - 1 A, VGEN = - 4.5 V, Rg = 6 Ω
tr
Rise Time
td(off)
Turn-Off Delay Time
Fall Time
tf
Source-Drain Reverse Recovery Time
trr
nC
5
IF = - 1.5 A, di/dt = 100 A/µs
45
70
85
130
220
400
155
235
140
210
ns
Notes:
a. Pulse test; pulse width ≤ 300 µs, duty cycle ≤ 2 %.
b. Guaranteed by design, not subject to production testing.
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation
of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum
rating conditions for extended periods may affect device reliability.
TYPICAL CHARACTERISTICS 25 °C, unless otherwise noted
30
30
VGS = 5 thru 2 V
24
24
I D - Drain Current (A)
I D - Drain Current (A)
1.5 V
18
12
6
18
12
6
25 °C
1V
0
0
1
2
3
4
TC = 125 °C
5
0
0.0
0.5
- 55 °C
1.0
1.5
VDS - Drain-to-Source Voltage (V)
VGS - Gate-to-Source Voltage (V)
Output Characteristics
Transfer Characteristics
2.0
服务热线:400-655-8788
2
SI6435ADQ-T1-GE3
www.VBsemi.com
TYPICAL CHARACTERISTICS 25 °C, unless otherwise noted
6000
5000
0.024
C - Capacitance (pF)
R DS(on) - On-Resistance (Ω)
0.030
VGS = 1.8 V
0.018
VGS = 2.5 V
0.012
VGS = 4.5 V
0.006
Ciss
4000
3000
Coss
2000
Crss
1000
0.000
0
0
6
12
18
24
30
0
2
ID - Drain Current (A)
4
8
10
12
VDS - Drain-to-Source Voltage (V)
On-Resistance vs. Drain Current
Capacitance
1.4
6
VGS = 4.5 V
ID = 8 A
VDS = 6 V
ID = 8 A
5
1.2
R DS(on) - On-Resistance
(Normalized)
V GS - Gate-to-Source Voltage (V)
6
4
3
2
1.0
0.8
1
0.6
- 50
0
0
12
24
36
48
60
- 25
25
50
75
100
125
150
TJ - Junction Temperature (°C)
Qg - Total Gate Charge (nC)
Gate Charge
On-Resistance vs. Junction Temperature
0.06
30
10
0.05
TJ = 150 °C
1
RDS(on) - On-Resistance (Ω)
I S - Source Current (A)
0
TJ = 25 °C
0.04
ID = 8 A
0.03
0.02
0.01
0.1
0.0
0.00
0.2
0.4
0.6
0.8
1.0
VSD - Source-to-Drain Voltage (V)
Source-Drain Diode Forward Voltage
1.2
0
1
2
3
4
5
6
7
8
VGS - Gate-to-Source Voltage (V)
On-Resistance vs. Gate-to-Source Voltage
服务热线:400-655-8788
3
SI6435ADQ-T1-GE3
www.VBsemi.com
TYPICAL CHARACTERISTICS 25 °C, unless otherwise noted
0.4
50
40
0.2
ID = 250 µA
30
Power (W)
V GS(th) Variance (V)
0.3
0.1
20
0.0
10
- 0.1
- 0.2
- 50
- 25
0
25
50
75
100
125
0
10-2
150
10-1
1
10
100
TJ - Temperature (°C)
Time (s)
Threshold Voltage
Single Pulse Power, Junction-to-Ambient
100
Limited
by RDS(on)*
I D - Drain Current (A)
10
10 ms
1
100 ms
1s
0.1
10 s
DC
TC = 25 °C
Single Pulse
0.01
0.1
1
10
100
VDS - Drain-to-Source Voltage (V)
* VGS > minimum VGS at which RDS(on) is specified
Safe Operating Area, Junction-to-Case
2
Normalized Effective Transient
Thermal Impedance
1
Duty Cycle = 0.5
0.2
Notes:
0.1
PDM
0.1
0.05
t1
t2
1. Duty Cycle, D =
t1
t2
2. Per Unit Base = R thJA = 100 °C/W
0.02
3. T JM - TA = PDMZthJA(t)
Single Pulse
4. Surface Mounted
0.01
10-4
10-3
10-2
10-1
1
Square Wave Pulse Duration (s)
10
100
600
Normalized Thermal Transient Impedance, Junction-to-Ambient
服务热线:400-655-8788
4
SI6435ADQ-T1-GE3
www.VBsemi.com
TYPICAL CHARACTERISTICS 25 °C, unless otherwise noted
2
Normalized Effective Transient
Thermal Impedance
1
Duty Cycle = 0.5
0.2
0.1
0.1
0.05
0.02
Single Pulse
0.01
10-4
10-3
10-2
10-1
1
10
Square Wave Pulse Duration (s)
Normalized Thermal Transient Impedance, Junction-to-Foot
服务热线:400-655-8788
5
SI6435ADQ-T1-GE3
TSSOP:
www.VBsemi.com
8ĆLEAD
JEDEC Part Number: MO-153
R 0.10
Corners)
A1
A
A2
D
e
0.25 (Gage Plane)
E1
MILLIMETERS
E
C
L
B
R 0.10
(4 Corners)
oK1
L1
Dim
A
A1
A2
B
C
D
E
E1
e
L
L1
Y
oK1
Min
Nom
Max
–
–
1.20
0.05
0.10
0.15
0.80
1.00
1.05
0.19
0.28
0.30
–
0.127
–
2.90
3.00
3.10
6.20
6.40
6.60
4.30
4.40
4.50
–
0.65
–
0.45
0.60
0.75
0.90
1.00
1.10
–
–
0.10
0_
3_
6_
ECN: S-03946—Rev. G, 09-Jul-01
DWG: 5844
服务热线:400-655-8788
6
SI6435ADQ-T1-GE3
www.VBsemi.com
RECOMMENDED MINIMUM PADS FOR TSSOP-8
0.092
(2.337)
0.026
(4.623)
0.182
0.040
(1.016)
0.262
(6.655)
(0.660)
0.014
0.012
(0.356)
(0.305)
Recommended Minimum Pads
Dimensions in Inches/(mm)
服务热线:400-655-8788
7
SI6435ADQ-T1-GE3
Disclaimer
www.VBsemi.com
All products due to improve reliability, function or design or for other reasons, product specifications and
data are subject to change without notice.
Taiwan VBsemi Electronics Co., Ltd., branches, agents, employees, and all persons acting on its or their
representatives (collectively, the "Taiwan VBsemi"), assumes no responsibility for any errors, inaccuracies or
incomplete data contained in the table or any other any disclosure of any information related to the
product.(www.VBsemi.com)
Taiwan VBsemi makes no guarantee, representation or warranty on the product for any particular purpose of
any goods or continuous production. To the maximum extent permitted by applicable law on Taiwan VBsemi
relinquished: (1) any application and all liability arising out of or use of any products; (2) any and all liability,
including but not limited to special, consequential damages or incidental ; (3) any and all implied warranties,
including a particular purpose, non-infringement and merchantability guarantee.
Statement on certain types of applications are based on knowledge of the product is often used in a typical
application of the general product VBsemi Taiwan demand that the Taiwan VBsemi of. Statement on whether the
product is suitable for a particular application is non-binding. It is the customer's responsibility to verify specific
product features in the products described in the specification is appropriate for use in a particular application.
Parameter data sheets and technical specifications can be provided may vary depending on the application and
performance over time. All operating parameters, including typical parameters must be made by customer's
technical experts validated for each customer application. Product specifications do not expand or modify Taiwan
VBsemi purchasing terms and conditions, including but not limited to warranty herein.
Unless expressly stated in writing, Taiwan VBsemi products are not intended for use in medical, life saving,
or life sustaining applications or any other application. Wherein VBsemi product failure could lead to personal
injury or death, use or sale of products used in Taiwan VBsemi such applications using client did not express their
own risk. Contact your authorized Taiwan VBsemi people who are related to product design applications and
other terms and conditions in writing.
The information provided in this document and the company's products without a license, express or implied,
by estoppel or otherwise, to any intellectual property rights granted to the VBsemi act or document. Product
names and trademarks referred to herein are trademarks of their respective representatives will be all.
