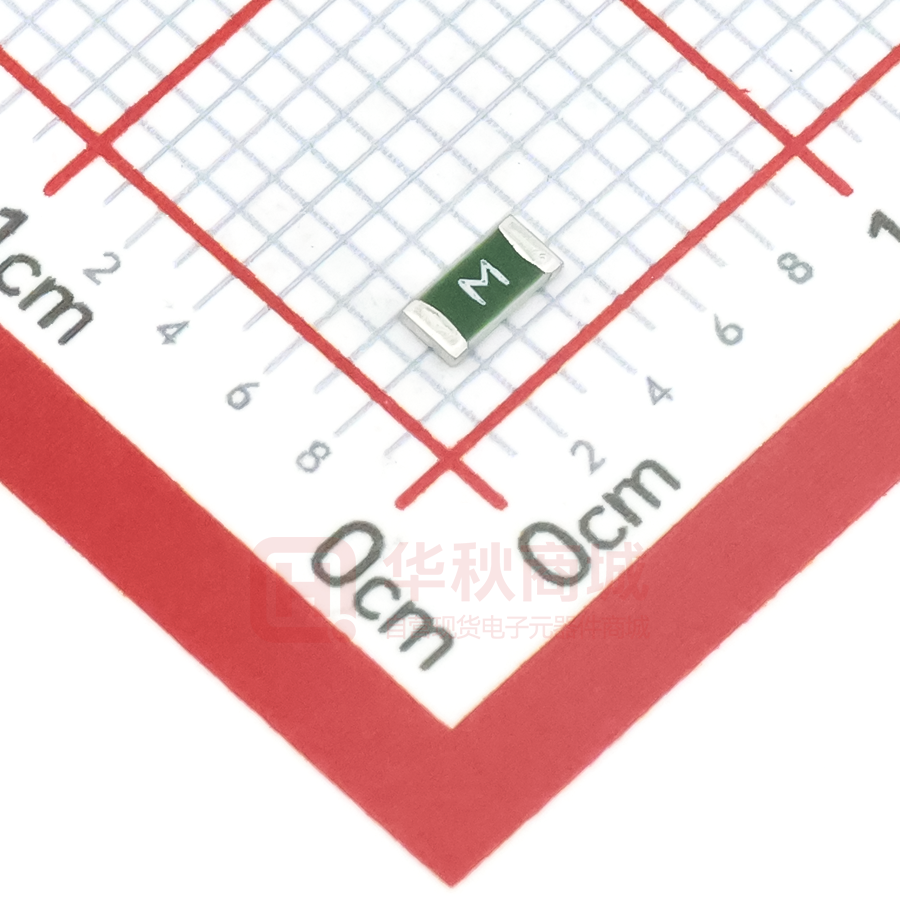

JFC1206-1800TS

PRODUCT DATASHEET JFC1206TS TIME-LAG FUSE Nano Fuses ·Surface Mount JFC1206TS TIME-LAG FUSE Description JFC1206TS Series are the fuses set the industry standard for performance, reliability and quality. The solder‐free design provides excellent on‐off and temperature cycling characteristics during use and also makes our SMD fuses more heat and shock tolerant than typical subminiature fuses. Features ● High inrush current withstanding capability Agency Approvals Agency ● Compatible with reflow and wave solder ● Ceramic and glass construction Agency File Number ● Excellent environmental integrity ● One time positive disconnect E486200 ● Lead Free and Halogen free material Electrical Characteristics Rated Current 1.0In 2.5In 3.0In 3.5In 10.0In 0.25A~0.75A 4.0 hour min - - 5.0 sec max 0.2ms-20ms 1~3A 4.0 hour min 1.0 sec-60 sec 0.1 sec-3.0 sec - 0.2ms-20ms 3.5A~5A 4.0 hour min 5.0 sce max 0.1 sec-3.0 sec - 0.2ms-10ms 6A~8A 4.0 hour min - 0.1 sec-3.0 sec 5.0 sec max 0.2ms-10ms 10A~15A 4.0 hour min - - 5.0 sec max 0.2ms-10ms 20A 4.0 hour min - - 5.0 sec max 0.2ms-10ms 25~50A 4.0 hour min - 0.1 sec-3.0 sec 5.0 sec max 0.2ms-10ms Dimensions Drawing not to scale (Unit: mm) Recommended land pattern Unit: mm(inch) 3.20±0.20 1.52(0.06) Topview 1.60±0.20 2.03(0.08) 0.50 1.52(0.06) Sidview JDT FUSE Industrial Co., Ltd www.jdtfuse.com 0.60 +0.20 -0.15 Page 1/4 Revised 03/10/23 JFC1206TS TIME-LAG FUSE Performance Specification Part No. Rated Voltage DC(V) Rated Current (A) Breaking Capacity* Typical Cold. Resistance (mOhms)** Typical Voltage Drop (mV) Typical Pre-Arcing I2t (A2Sec)*** Aplha Marking JFC1206-0250TS 0.25 3248 1267 0.00043 .25 JFC1206-0375TS 0.375 1691 647 0.00086 E JFC1206-0500TS 0.50 926 583 0.0025 B 543 553 0.0061 .75 441 457 0.12 H 330 405 0.15 H 216 332 0.17 K 119 285 0.46 N JFC1206-0750TS JFC1206-1100TS JFC1206-1125TS JFC1206-1150TS JFC1206-1200TS 72 63 32 24 0.75 1.0 1.25 1.5 2.0 50A@72Vdc 50A@63Vdc 150A@32Vdc 300A@24Vdc JFC1206-1250TS 2.5 69 216 0.73 O JFC1206-1300TS 3.0 43 169 1.52 P JFC1206-1350TS 3.5 36 161 1.84 R JFC1206-1400TS 4.0 32 152 1.91 S JFC1206-1450TS 4.5 27 144 2.89 X JFC1206-1500TS 5.0 22 127 3.17 T JFC1206-1600TS 6.0 14 123 12.3 F JFC1206-1700TS 7.0 10 121 13.7 7 JFC1206-1800TS 8.0 7.7 99 15.4 M 10 6.2 91 22.0 U 4.3 76 22.7 12 3.6 69 28.2 15 1.6 53 51.9 20 JFC1206-2100TS JFC1206-2120TS JFC1206-2150TS 24 32 12 15 150A@32Vdc 300A@24Vdc 150A@32Vdc 300A@24Vdc JFC1206-2200TS 20 JFC1206-2250TS 25 1.4 79 66.0 L JFC1206-2300TS 30 1.1 79 109 Z JFC1206-2400TS 40 0.76 86 176 XL JFC1206-2500TS 50 0.68 93 256 50 200A@32Vdc 200A@24Vdc * DC Interrupting Rating (Measured at rated voltage, time constant of less than 50 microseconds, battery source) ** DC Cold Resistance are measured at
