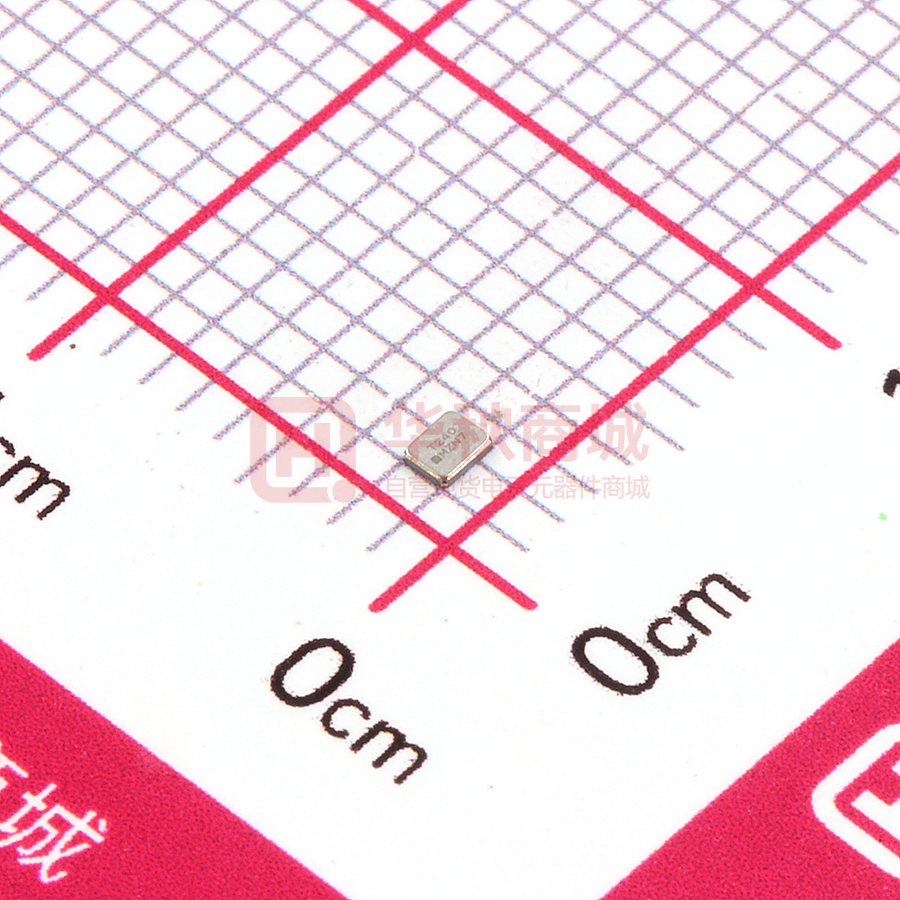

8Q24000022

TXC CORPORATION www.txccorp.com SPECIFICATION FOR APPROVAL CUSTOMER : PRODUCT TYPE : SMD Crystal 1.6×1.2 NOMINAL FREQ. : 24.000000MHz TXC P/N : 8Q24000022 REVISION : A2 CUSTOMER P/N : PM / SALES : DATE : CUSTOMER SIGNATURE & Date (1) TXC requires one copy returned with signature and title of authorized individual that signifies acceptance of the attached specifications. (2) Orders received and accepted by TXC after return of signed copy of specification will be produced per these specifications. (3) Any changes to these specifications must be agreed upon by both parties and new revision of the Product Specification Sheet will be issued. (4) Any issuance of purchase order prior to consigning back the Approval page of "Specification Sheets" from customers will be regarded as the agreement on the contents of these specifications. MSL:Level 1 RoHS Compliant FMT-DOC024 VER.G TXC confidential and proprietary document TXC CORPORATION www.txccorp.com PRODUCT SPECIFICATION SHEET PRODUCT TYPE : SMD Crystal 1.6×1.2 NOMINAL FREQ. : 24.000000MHz TXC P/N : 8Q24000022 REVISION : A2 PE/RD QA MFG Robin Huang Samson Xiong Jake Liu 10-Feb-23 10-Feb-23 10-Feb-23 NOTE: (1)The green product standard set by TXC is based upon the international standards. Related information is publicly described on the TXC's Website, and updated regularly. The document is compliant with the latest green product quality system directives at the time. (2)Revision "Sx" is for engineering samples only. PE/RD's approval required. (3)Revision "Ax" is production ready. PE, QA and MFG's approval required MSL:Level 1 RoHS Compliant FMT-DOC024 VER.G TXC confidential and proprietary document TXC CORPORATION Rev Revise page S1 N/A S2 TXC P/N： REVISION： A2 PAGE： 1 Date Ref.No. Reviser Initial released 1-Sep-21 N/A Xiaoyan Jiang 3 Load Capacitance 7pF Change To 8.5pF 28-Sep-21 PNR21092705 Xiaoyan Jiang S3 3 Load Capacitance 8.5pF Change To 7.5pF 3-Dec-21 PNR21113017 Xiaoyan Jiang A1 N/A S Turn A 5-Jan-22 N/A Xiaoyan Jiang A2 N/A change tape from 3000pcs/reel to 5000pcs/reel 10-Feb-23 ECR2023N020702 Xiaoyan Jiang FMT-DOC024 VER.G Revise contents 8Q24000022 TXC confidential and proprietary document TXC CORPORATION TXC P/N： 8Q24000022 REVISION： A2 PAGE： 2 Spec Sheet Contents No. Content Page 1 ELECTRICAL SPECIFICATIONS P.3 2 DIMENSIONS P.4 3 MARKING P.4 4 FACTORY LOCATION P.4 5 SUGGESTED REFLOW PROFILE& MANUAL SOLDER CONDITION P.4 6 STRUCTURE ILLUSTRATION P.5 7 EMBOSS CARRIER TAPE & REEL P.6 8 PACKING P.7 9 RELIABILITY SPECIFICATIONS 10 APPLICATION NOTE FMT-DOC024 VER.G P.8～9 P.9 TXC confidential and proprietary document TXC CORPORATION 8Q24000022 TXC P/N： REVISION： A2 PAGE： 3 ■ ELECTRICAL SPECIFICATIONS Standard atmospheric conditions Unless otherwise specified, the standard range of atmospheric conditions for making measurement and tests are as follow: Ambient temperature : 25±5℃ Relative humidity 40%~70% : If there is any doubt about the results, measurement shall be made within the following limits: Ambient temperature : 25±3℃ Relative humidity 40%~70% : Measure equipment Electrical characteristics measured by S&A250B or equivalent. Crystal cutting type The crystal is using AT CUT (thickness shear mode). Unit Weight: 0.003g/pcs Typ. Parameters 1 Nominal Frequency Symbol Electrical Spec. Min. Typ. Max. Notes Units FL 24.000000 MHz - - Fundamental - - CL 7.5 pF - 4 Frequency Tolerance - ±10 ppm at 25 ℃ ± 3 ℃ 5 Frequency Stability - ±10 ppm Over Operating Temp. Range (Reference 25℃） 6 Operating Temperature - 7 Aging - 2 Oscillation Mode 3 Load Capacitance -30 ~ 85 ppm ±3 - ℃ 1st Year@25 ℃ 8 Drive Level DL - 100 - uW - 9 Effective Series Resistance Rr - - 70 Ω - 10 Shunt Capacitance C0 C0 - - 2 pF - 11 Insulation Resistance IR 500 - - MΩ - -40 ~ 85 ℃ 12 Storage Temperature Range FMT-DOC024 VER.G TXC confidential and proprietary document at DC 100V - TXC CORPORATION 8Q24000022 TXC P/N： A2 REVISION： PAGE： 4 ■ DIMENSIONS (Unit:mm) *Coplanarity of solderable areas Camber 0.05 mm Max ■ MARKING T□□□ TXC Logo Frequency Code Pin 1 Location ■ MHz = 240 Ex. 24.000000 □□□□ Lot Code Date Code Production control code 　 Date Code: MONTH YEAR JAN FEB MAR APR MAY JUN JUL AUG SEP OCT NOV DEC 2021 2025 2029 2033 2037 A B C D E F G H J K L M 2022 2026 2030 2034 2038 N P Q R S T U V W X Y Z 2023 2027 2031 2035 2039 a b c d e f g h j k l m 2024 2028 2032 2036 2040 n p q r s t u v w x y z *This date code will be cycled every four years Production Location:Taiwan, China(Ningbo), China(Chungking). ■ SUGGESTED REFLOW PROFILE Solder melting point :220±10 ℃, 60 sec. Min. Peak Temperature: 260 ± 5 ℃, 10 sec. Max. Reflow Times: 3 times reflow is allowed (℃) 10 sec 260 220 180 150 Time (sec) 120 sec FMT-DOC024 VER.G TXC confidential and proprietary document 60 sec TXC CORPORATION TXC P/N： 8Q24000022 REVISION： A2 PAGE： 5 ■ STRUCTURE ILLUSTRATION NO COMPONENTS MATERIALS FINISH/SPECIFICATIONS 1 Lid Kovar (Fe/Co/Ni)+AuSn - 2 Base(Package) Ceramic (AI2O3)+Pad(Au) Tungsten metalize + Ni plating + Au plating 3 Crystal blank SiO2 - 4 Conductive adhesive Resin+Ag - 5 Electrode Noble Metal - FMT-DOC024 VER.G TXC confidential and proprietary document TXC CORPORATION TXC P/N： 8Q24000022 REVISION： A2 PAGE： 6 ■ PACKING TOP VIEW INDEX MARK A B C D E F G H I 0.45 1.79 1.39 4.00 8.00 4.00 1.55 1.75 3.50 ± 0.15 ± 0.1 ± 0.1 ± 0.1 ±0.2 ± 0.1 ± 0.05 ± 0.1 ±0.05 DIMENSIONS (UNIT : mm) REMARK : DIMENSIONS FMT-DOC024 VER.G L 178 ±1.00 L1 60.2 ±0.50 W 11.5 ±0.2 W1 8 +1/-0 Standard Reel Quantity is 5,000 pcs per reel (UNIT:mm) TXC confidential and proprietary document TXC CORPORATION TXC P/N： 8Q24000022 REVISION： A2 PAGE： 7 ■ PACKING Reel Quantity : 1. Reel X 6 (6 Reels) 2. Reel X 12 (12 Reels) 3. Reel X 25 (12 Reels + 13 Reels) 4. Reel X 50 ( 12 Reelsx2 + 13 Reelsx2 ) Label B Box Size: 1. L200 X W200 X H140mm 2. L200 X W200 X H250mm 3. L400 X W200 X H250mm 4. L400 X W400 X H280mm Tape Tape Label A Label B QA Pass (Label A) Size:100 X 100mm (Lable B) Size:80 X 40mm * If customers have special requirements, we can paste labels according to it. FMT-DOC024 VER.G TXC confidential and proprietary document TXC CORPORATION TXC P/N： 8Q24000022 REVISION： S1 PAGE： 8 ■ RELIABILITY SPECIFICATIONS 1.Mechanical Endurance No. Test Item 1.1 Drop Test Test Methods 150 cm height, 3 times on concrete floor. 1.2 Mechanical Shock 1.3 Vibration Device are shocked to half sine wave ( 1000 G ) three mutually perpendicular axes each 3 times. 0.5m sec. duration time Frequency range 10 ~ 2000 Hz Amplitude 1.52 mm/20G Sweep time 20 minutes perpendicular axes each test time 4 Hrs Test Criteria A.C A.C A.C (Total test time 12 Hrs) 1.4 Solder ability Temperature 245 ℃ ± 5℃ Immersing depth 0.5 mm minimum Immersion time 5 ± 1 seconds Flux Rosin resin methyl alcohol E solvent ( 1 : 4 ) 2.Environmental Endurance No. Test Item 2.1 Resistance To Soldering Heat Test Methods Pre-heat temperature 125 ℃ Pre-heat time 60 ~ 120 sec. Test temperature 260 ± 5 ℃ Test time 10 ± 1 sec. Test Criteria B.C.D 2.2 High Temp. Storage + 125 ℃ ± 3 ℃ for 500 ± 12 Hrs B.C.D 2.3 Low Temp. Storage - 40 ℃ ± 3 ℃ for 500 ± 12 Hrs B.C.D Total 100 cycles of the following temperature cycle 2.4 Temperature cycle 2.5 High Temp＆Humidity FMT-DOC024 VER.G B.C.D 85℃ ± 3℃, RH 85% , 500Hrs TXC confidential and proprietary document B.C.D TXC CORPORATION TXC P/N： 8Q24000022 REVISION： A2 PAGE： 9 ■RELIABILITY SPECIFICATIONS Specifications A Frequency change: Within ±5ppm or in customer's specification. B Frequency change: Within ±10ppm or in customer's specification. C Equivalent series resistance(E.S.R) change: Within ±15% or 10Ω(larger value). D After conditioning , quartz crystal units shall be subjected to standard atmospheric conditions for 2 hour, and measured. E Minimum 95% of immersed terminal shall be covered with new uniform solder. Measurement condition Electrical characteristics measured by S&A250B or equivalent. ■ APPLICATIAON NOTE 1.Don't be caught in the rain. 2.The storage environment shall be 5℃ ~40℃ temperature and 30% ~ 75%RH humidity and free from the sun shine. 3.It is recommended to use product within 1 year after arrival because characteristics will deteriorate with time. 4.The product shall not be used for military uses, aerospace equipment, medical instruments to sustain life, automotive application, and others equivalen. 5.The product is intended for general use in electronic equipment, please contact us when using this product for industrial equipment. 6.Since the ultrasonic welding process may damge crystal resonator interior, we strongly recommend to verify the product by ultrasonic welding before using it if utrasonic welding process has to be used. 7.Be careful that the temperature should not be higher than 280 °C, because it is possibile that the AuSn would be remelt. FMT-DOC024 VER.G TXC confidential and proprietary document
