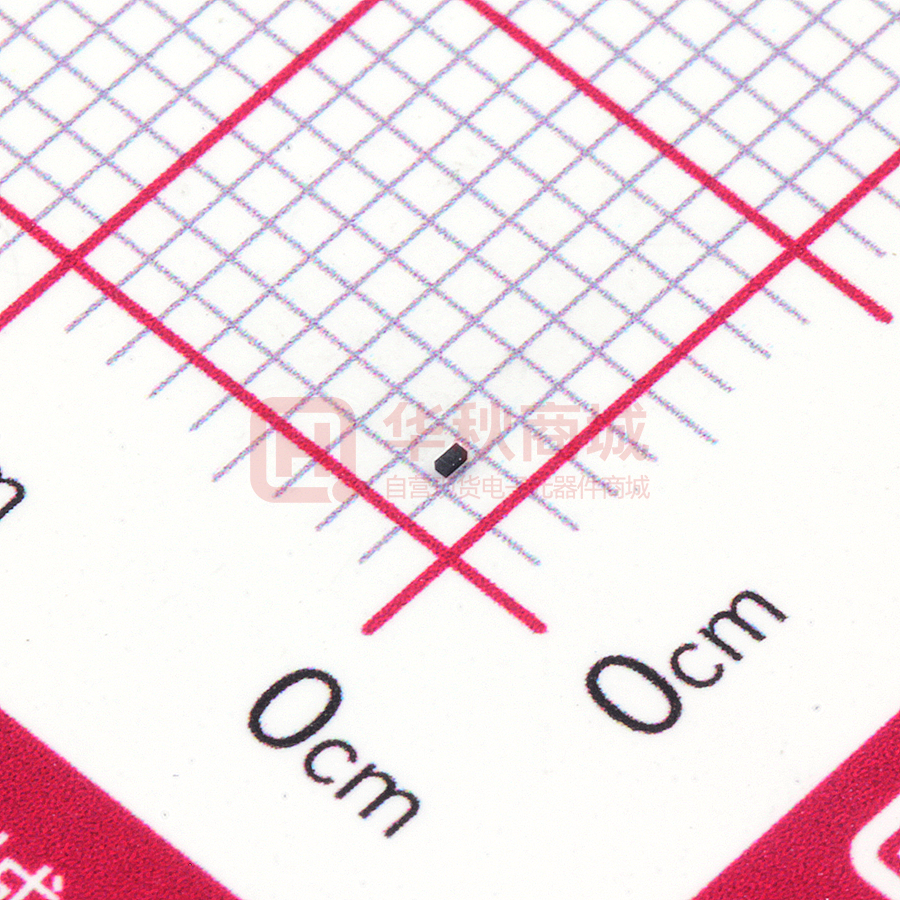

SE03N2C01HL

Transient Voltage Suppressors for ESD Protection SE03N2C01HL Features  Working voltage : 3.3V  Low capacitance: 0.4pF (Typical)  Low leakage current: 1.0μA @ VRWM  Low clamping voltage  Response Time is < 1 ns DFN0603 Applications Functional Diagram  Cell Phone Handsets and Accessories  Portable Instrumentation  Notebooks, Desktops, and Servers  Digital CamerasMDDI Ports Mechanical Characteristics  DFN0603-2L Package  Molding Compound Flammability Rating : UL 94V-0  Quantity Per Reel : 10,000pcs  Reel Size : 7 inch Absolute Maximum Rating Symbol Parameter Value Units TLST Lead Soldering Temperature 260 (10 sec.) ℃ TSTG Storage Temperature Range -55 to +150 ℃ TOPT Operating Temperature Range -55 to +125 ℃ VESD Revision January 14, 2019 ESD per IEC 61000-4-2(Air) ±20 ESD per IEC 61000-4-2 (Contact) ±15 1/4 KV Transient Voltage Suppressors for ESD Protection SE03N2C01HL I-V Curve Characteristics Symbol Parameter IPP Maximum Peak Pulse Current VC Clamping Voltage @ IPP VRWM Working Peak Reverse Voltage IR Maximum Reverse Leakage Current @ VRWM Vt1 Trigger Voltage It1 Trigger Current @ Vt1 Vh Holding Voltage Ih Holding Current @ Vh Electrical Characteristics (@ TA=25℃ Unless Otherwise Specified ) Symbol Test Condition Minimum Typical Maximum Units VRWM -- -- -- 3.3 V IR VRWM=3.3V, T=25℃ -- -- 1.0 μA VBR IT = 1mA 4.1 -- 7.0 V VC IPP=1A, tp=8/20μs -- -- 12 V VC IPP=4A, tp=8/20μs -- -- 27 V CJ VR=0V, f=1MHz -- 0.4 -- pF Characteristic Curves Fig1. 8/20μs Pulse Waveform Fig2. ESD Pulse Waveform (according to IEC61000-4-2) tr 100 Peak Value IPP 80 100% TEST WAVEFORM PARAMETERS tr=8μs td=20μs Percent of Peak Pulse Current % IPP - Peak Pulse Current - % of IPP 120 60 40 td=t IPP/2 20 0 0 5 10 15 20 25 30 10% tr = 0.7~1ns 30ns 60ns t - Time (μs) Revision January 14, 2019 90% 2/4 Time (ns) Transient Voltage Suppressors for ESD Protection SE03N2C01HL Characteristic Curves (Continue) Fig3. Clamped +8 kV ESD Voltage Waveform Fig4. Clamped -8 kV ESD Voltage Waveform DFN0603-2LPackage Outline & Dimensions Plastic surface mounted package; Unit mm 2 leads DFN0603 A A1 b D E Min. 0.27 0.000 0.21 0.57 0.28 Max. 0.33 0.025 0.29 0.65 0.35 Revision January 14, 2019 3/4 e 0.355 L 0.14 0.22 Transient Voltage Suppressors for ESD Protection SE03N2C01HL Recommended Soldering Footprint (Unit: mm) Tape and Reel Specification (Unit: mm) A0 0.37 +/- 0.03 B0 0.67 +/- 0.03 Tape and Reel Specification Revision January 14, 2019 4/4 K0 0.32 +/- 0.02
