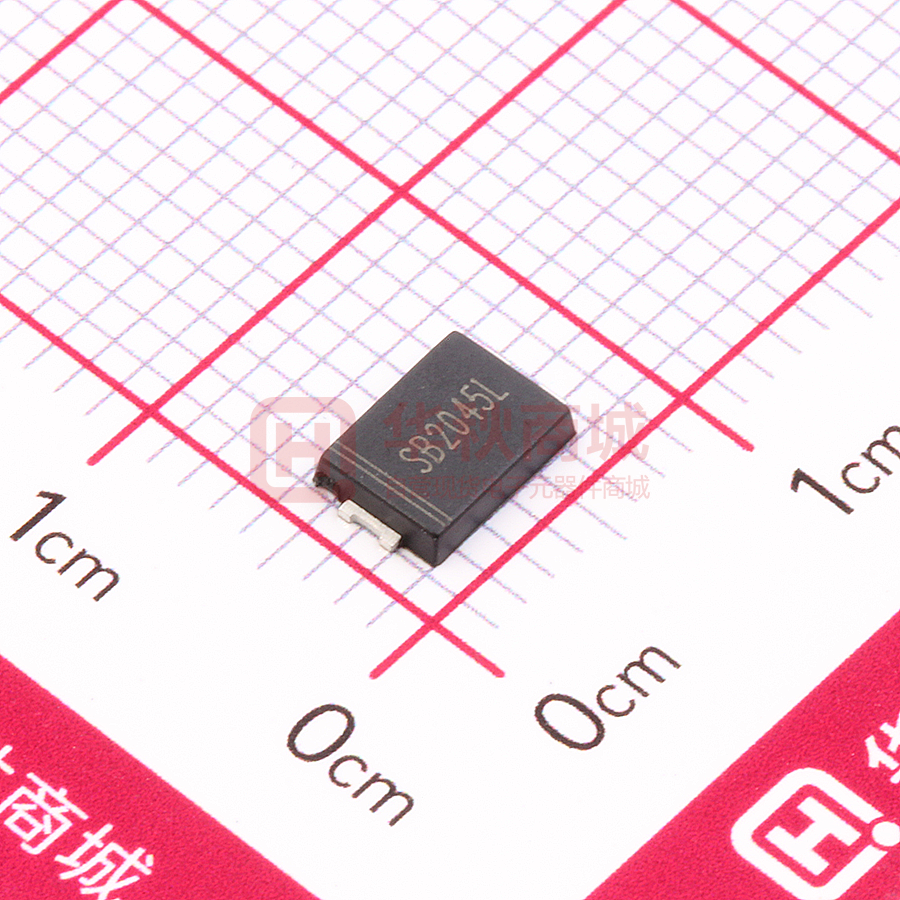

www.msksemi.com SB2045L Semiconductor Compiance ■ Features • Low forward voltage drop. • Excellent high temperature stability. • Fast switching capability. • Suffix "G" indicates Halogen-free part, ex.CP10S45SG. • Lead-free parts meet environmental standards of MIL-STD-19500 /228 ■ Mechanical data • Epoxy : UL94-V0 rated flame retardant. • Case : Molded plastic, TO-277 . • Lead : Solder plated, solderable per MIL-STD-750, Method 2026. • Polarity: Indicated by cathode band . • Mounting Position : Any. • Weight : Approximated 0.093 grams . MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating 25 C ambient temperature uniess otherwies specified. Single phase half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. TYPE NUMBER SB2045L UNITS 45 32 45 V V V 20.0 A 200 A V mA Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current See Fig. 1 Peak Forward Surge Current, 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) Maximum Instantaneous Forward Voltage at 20.0A Maximum DC Reverse Current Ta=25 C at Rated DC Blocking Voltage Typical Junction Capacitance (Note1) Typical Thermal Resistance RqJA (Note 2) Operating Temperature Range TJ Storage Temperature Range TSTG 0.52 0.3 20 Ta=100 C 650 31 -65 +150 -65 +150 mA pF C/W C C Note : 1.FR-4 PCB, 2oz.Copper. 2.Polymide PCB, 2oz.Copper.Cathode pad dimensions 18.8mm x 14.4mm.Anode pad dimensions 5.6mm x 14.4mm. www.msksemi.com SB2045L Semiconductor Compiance RATING AND CHARACTERISTIC CURVES Fig. 1 - Forward Power Dissipation Fig. 2 - Instantaneous Forward Characteristics 100 Instantaneous Forward Current,I F (A) 5 Power Dissipation,P D (W) 4 3 2 1 1 0 T A =150°C T A = 125 ° C 1 T A =100°C T A =75°C 0.1 T A =50°C T A =25°C 0 0.01 0 5 10 15 0 Average Forward Current,I F ( AV ) (A) 0.1 0.2 0.3 0.4 0.5 Instantaneous Forward Voltage,V F (Volts) Fig. 3 - Reverse Characteristics Fig.4 - Forward Current Derating Curve Instantaneous Reverse Current,I R (mA) 100 Average Forward Current,I F ( AV ) (A) T A =150 O C T A =125 O C 10 O T A =100 C 1 O T A =75 C O T A =50 C 0.1 24 Based on Lead Temp(T L ) 16 Note 2 8 Note 1 0 25 50 75 100 125 150 175 O T A =25 C 0.01 0 10 20 30 Ambient Temperature,T A ( O C) 40 50 Reverse Voltage,V R (V) Fig. 5 - Total Capacitance VS. Reverse Voltage Fig. 6 - Maximum Avalanche Power Curve 1000000 Maximum Avalanche Power,P M (W) Total Capacitance,C T (pF) 1000000 10000 f = 1MHz 1000 100 10 1 0.1 10000 1000 1 10 Reverse Voltage,V R (V) 100 1 10 100 1000 10000 Pulse Duration,T P (us) www.msksemi.com SB2045L Semiconductor DIM HE E D B1 B2 A C L L1 L2 L3 D1 E1 Unit: mm Unit: inch MIN MAX 6.4 6.6 5.6 5.8 4.1 4.3 1.7 1.9 0.8 1 1.05 1.2 0.3 0.4 0.85 1.1 4.2 4.4 3.52 Typ. 1.1 1.4 3 3.3 1.86 Typ. MIN MAX 0.252 0.260 0.220 0.228 0.161 0.169 0.067 0.075 0.031 0.039 0.041 0.047 0.012 0.016 0.033 0.043 0.165 0.173 0.139 Typ. 0.043 0.055 0.118 0.130 0.073 Typ. Compiance TO-277 REEL SPECIFICATION P/N SB2045L PKG QTY TO-277 5000 www.msksemi.com SB2045L Semiconductor Compiance Attention ■ Any and all MSKSEMI Semiconductor products described or contained herein do not have specifications that can handle applications that require extremely high levels of reliability, such as life-support systems, aircraft's control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your MSKSEMI Semiconductor representative nearest you before using any MSKSEMI Semiconductor products described or contained herein in such applications. ■ MSKSEMI Semiconductor assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specificationsof any andall MSKSEMI Semiconductor products described orcontained herein. ■ Specifications of any and all MSKSEMI Semiconductor products described or contained herein stipulate the performance, characteristics, and functions of the described products in the independent state, and are not guarantees of the performance, characteristics, and functions of the described products as mounted in the customer’s products or equipment. To verify symptoms and states that cannot be evaluated in an independent device, the customer should always evaluate and test devices mounted in the customer’sproducts orequipment. ■ MSKSEMI Semiconductor. strives to supply high-quality high-reliability products. However, any and all semiconductor products fail with someprobability. It is possiblethat these probabilistic failures could give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire, or that could cause damage to other property. When designing equipment, adopt safety measures so that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective circuits anderror prevention circuitsfor safedesign, redundant design, and structural design. ■ In the event that any or all MSKSEMI Semiconductor products(including technical data, services) described or contained herein are controlled under any of applicable local export control laws and regulations, such products must not be exported without obtaining the export license from theauthorities concerned in accordance with the above law. ■ No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or any information storage or retrieval system, or otherwise, without the prior written permission of MSKSEMI Semiconductor. ■ Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not guaranteed for volume production. MSKSEMI Semiconductor believes information herein is accurate and reliable, but no guarantees are made or implied regarding its use or any infringementsof intellectual property rights or other rightsof third parties. ■ Any and all information described or contained herein are subject to change without notice due to product/technology improvement, etc. Whendesigning equipment, referto the "Delivery Specification" for the MSKSEMI Semiconductor productthat you intend to use. www.msksemi.com
