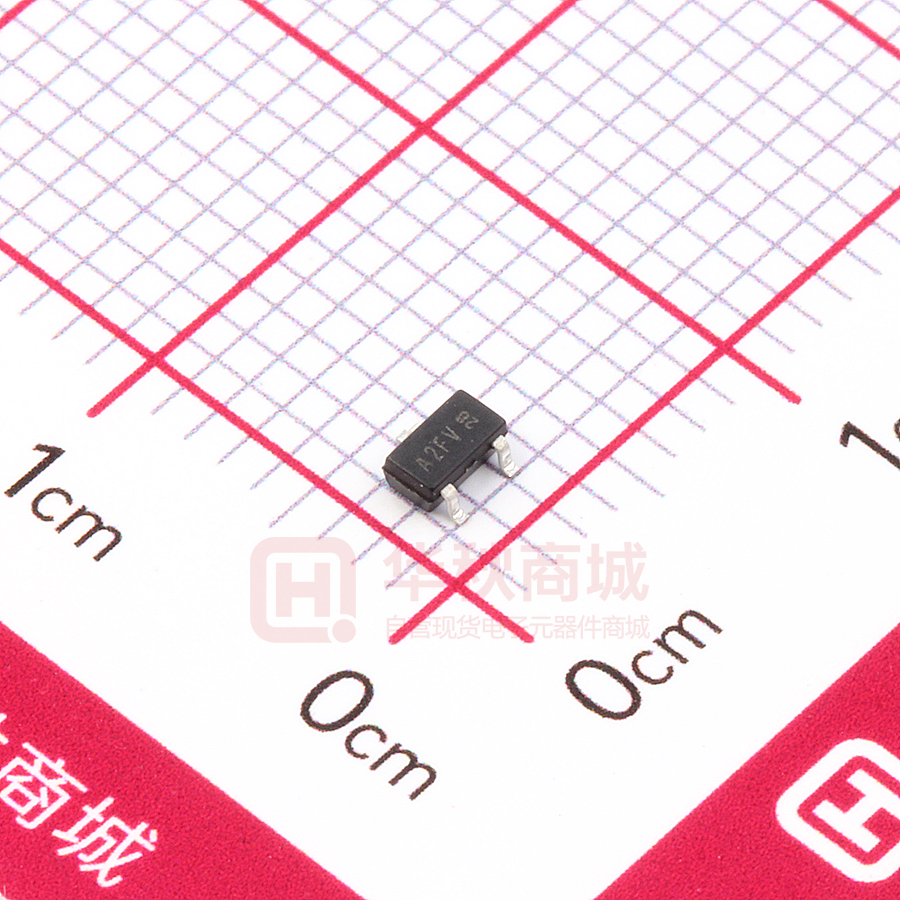

AO3402

www.msksemi.com AO3402 Semiconductor Compiance Features 30V, 4.0 A, RDS(ON) =47mΩ@VGS = 4.5V Improved dv/dt capability Ｄ Fast switching Green Device Available Ｇ Applications Ｓ Notebook SOT-23-3L Load Switch LED applications D BVDSS G RDSON 30V ID 4.0A 47m S Absolute Maximum Ratings Tc=25 Symbol unless otherwise noted Rating Units VDS Drain-Source Voltage 30 V VGS Gate-Source Voltage ±12 V Drain Current – Continuous (TC=25℃) 4.0 A Drain Current – Continuous (TC=100℃) 3.0 A Drain Current – Pulsed1 16 A Power Dissipation (TC=25℃) 1.4 W 0.012 W/℃ ID IDM PD Parameter Power Dissipation – Derate above 25℃ TSTG Storage Temperature Range -55 to 150 ℃ TJ Operating Junction Temperature Range -55 to 150 ℃ Thermal Characteristics Symbol RθJA Parameter Thermal Resistance Junction to ambient Typ. --- Max. Unit 80 ℃/W www.msksemi.com AO3402 Semiconductor Compiance Min. Typ. Max. Unit VGS=0V , ID=250uA 30 --- V Reference to 25℃ , ID=1mA --- --0.06 V/℃ VDS=30V , VGS=0V , TJ=25℃ --- --- --1 VDS=24V , VGS=0V , TJ=125℃ --- --- 10 uA VGS= ±12V , VDS=0V --- --- ±100 nA VGS=4.5V , ID=4A --- 47 60 VGS=2.5V , ID=3A --0.5 60 85 0.9 1.4 V --- -3 --- mV/℃ --- 7 --- S --- 8.4 --- --- 1 --- --- 2.2 --- --- 4.5 --- --- 13 --- --- 27 --- --- 8.3 --- --- 695 --- --- 45 --- --- 36 --- --- 1.5 --- Min. Typ. Max. Unit --- --- 4.0 A --- --- 8.0 A --- --- 1.2 V Off Characteristics Symbol BVDSS Parameter Drain-Source Breakdown Voltage △BVDSS/△TJ BVDSS Temperature Coefficient IDSS Drain-Source Leakage Current IGSS Gate-Source Leakage Current Conditions uA On Characteristics RDS(ON) Static Drain-Source On-Resistance VGS(th) Gate Threshold Voltage △VGS(th) gfs VGS(th) Temperature Coefficient Forward Transconductance VGS=VDS , ID =250uA VDS=10V , IS=3A m Dynamic and switching Characteristics Qg Total Gate Charge2 , 3 Qgs Gate-Source Charge2 , 3 Qgd Gate-Drain Charge2 , 3 Td(on) Turn-On Delay Time2 , 3 Tr Td(off) Tf Rise VDD=10V , VGS=4.5V , RG=25 Time2 , 3 Turn-Off Delay Time2 , 3 ID=1A Fall Time2 , 3 Ciss Input Capacitance Coss Output Capacitance Crss Reverse Transfer Capacitance Rg VDS=10V , VGS=4.5V , ID=3A Gate resistance VDS=10V , VGS=0V , F=1MHz VGS=0V, VDS=0V, F=1MHz nC nS pF Drain-Source Diode Characteristics and Maximum Ratings Symbol Parameter IS Continuous Source Current ISM Pulsed Source Current VSD Diode Forward Voltage Conditions VG=VD=0V , Force Current VGS=0V , IS=1A , TJ=25℃ Note : 1. Repetitive Rating : Pulsed width limited by maximum junction temperature. 2. The data tested by pulsed , pulse width ≦ 300us , duty cycle ≦ 2%. 3. Essentially independent of operating temperature. www.msksemi.com AO3402 Semiconductor Compiance PACKAGE MECHANICAL DATA Symbol A A1 A2 b c D E1 E e e1 L  Dimensions In Millimeters Max. Min. 1.050 1.250 0.000 0.100 1.050 1.150 0.300 0.500 0.100 0.200 2.820 3.020 1.500 1.700 2.650 2.950 0.950(BSC) 1.800 2.000 0.300 0.600 0° 8° Dimensions In Inches Min. Max. 0.041 0.049 0.000 0.004 0.041 0.045 0.012 0.020 0.004 0.008 0.111 0.119 0.059 0.067 0.104 0.116 0.037(BSC) 0.071 0.079 0.012 0.024 0° 8° REEL SPECIFICATION P/N AO3402 PKG SOT-23-3L QTY 3000 www.msksemi.com AO3402 Semiconductor Compiance Attention ■ Any and all MSKSEMI Semiconductor products described or contained herein do not have specifications that can handle applications that require extremely high levels of reliability, such as life-support systems, aircraft's control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your MSKSEMI Semiconductor representative nearest you before using any MSKSEMI Semiconductor products described or contained herein in such applications. ■ MSKSEMI Semiconductor assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specificationsof any andall MSKSEMI Semiconductor products described orcontained herein. ■ Specifications of any and all MSKSEMI Semiconductor products described or contained herein stipulate the performance, characteristics, and functions of the described products in the independent state, and are not guarantees of the performance, characteristics, and functions of the described products as mounted in the customer’s products or equipment. To verify symptoms and states that cannot be evaluated in an independent device, the customer should always evaluate and test devices mounted in the customer’sproducts orequipment. ■ MSKSEMI Semiconductor. strives to supply high-quality high-reliability products. However, any and all semiconductor products fail with someprobability. It is possiblethat these probabilistic failures could give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire, or that could cause damage to other property. When designing equipment, adopt safety measures so that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective circuits anderror prevention circuitsfor safedesign, redundant design, and structural design. ■ In the event that any or all MSKSEMI Semiconductor products(including technical data, services) described or contained herein are controlled under any of applicable local export control laws and regulations, such products must not be exported without obtaining the export license from theauthorities concerned in accordance with the above law. ■ No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or any information storage or retrieval system, or otherwise, without the prior written permission of MSKSEMI Semiconductor. ■ Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not guaranteed for volume production. MSKSEMI Semiconductor believes information herein is accurate and reliable, but no guarantees are made or implied regarding its use or any infringementsof intellectual property rights or other rightsof third parties. ■ Any and all information described or contained herein are subject to change without notice due to product/technology improvement, etc. Whendesigning equipment, referto the "Delivery Specification" for the MSKSEMI Semiconductor productthat you intend to use. www.msksemi.com
