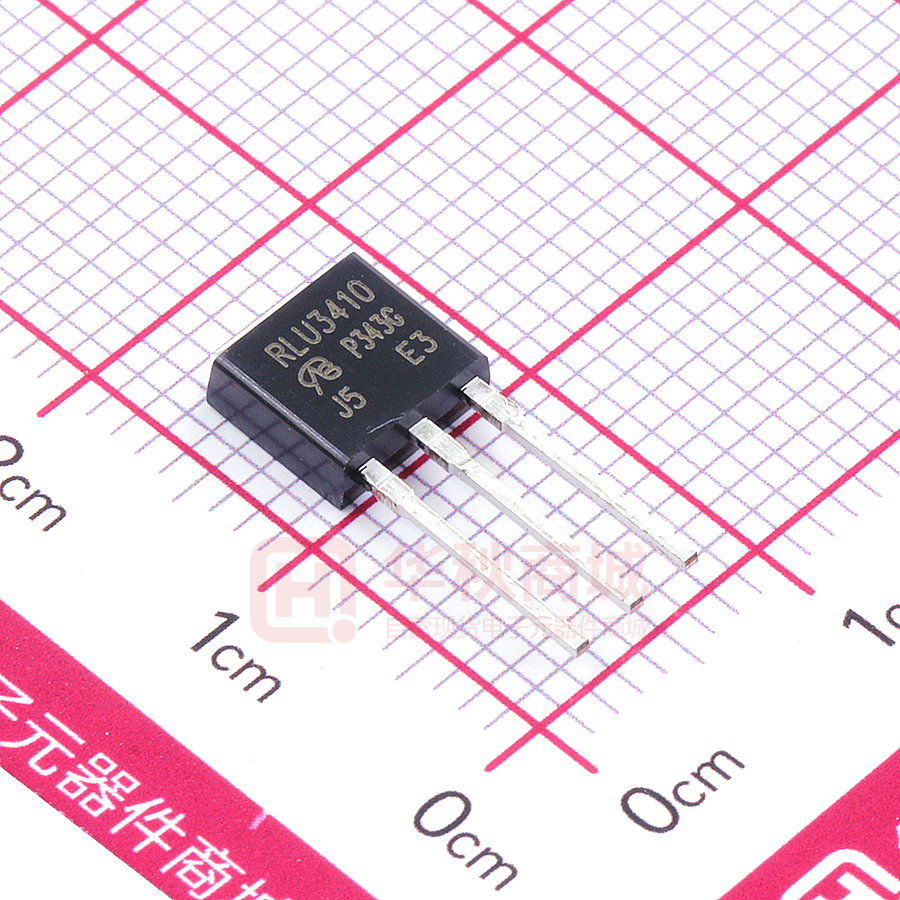

IRLU3410PBF-VB

IRLU3410PBF www.VBsemi.com N-Channel 100 V (D-S) MOSFET FEATURES PRODUCT SUMMARY VDS (V) 100 RDS(on) () ID (A) 0.110 at VGS = 10 V 15 0.115 at VGS = 6 V 15 • DT-Trench Power MOSFET • 175 °C Junction Temperature • 100 % Rg Tested APPLICATIONS • Primary Side Switch TO-251 D G S G D S Top View N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) Symbol Limit Drain-Source Voltage Parameter VDS 100 Gate-Source Voltage VGS ± 20 Continuous Drain Current (TJ = 175 °C)b TC = 25 °C TC = 125 °C 8.7 45 Continuous Source Current (Diode Conduction) IS 15 Avalanche Current IAR 15 EAR 11.3 Repetitive Avalanche Energy (Duty Cycle  1 %) Maximum Power Dissipation L = 0.1 mH TC = 25 °C TA = 25 °C 61 PD A mJ b W 2.7a TJ, Tstg Operating Junction and Storage Temperature Range V 15 ID IDM Pulsed Drain Current Unit - 55 to 175 °C THERMAL RESISTANCE RATINGS Parameter Junction-to-Ambienta Junction-to-Case Symbol t  10 s Steady State RthJA RthJC Typical Maximum 16 20 45 55 2 2.4 Unit °C/W Notes: a. Surface mounted on 1" x 1" FR4 board. b. See SOA curve for voltage derating. 服务热线：400-655-8788 1 IRLU3410PBF www.VBsemi.com SPECIFICATIONS (TJ = 25 °C, unless otherwise noted) Symbol Parameter Test Conditions Min. Typ.a Max. Unit Static Drain-Source Breakdown Voltage Gate Threshold Voltage Gate-Body Leakage VDS VGS = 0 V, ID = 250 µA 100 VGS(th) VDS = VGS, ID = 250 µA 1.0 IGSS VDS = 0 V, VGS = ± 20 V ± 100 VDS = 100 V, VGS = 0 V 1 VDS = 100 V, VGS = 0 V, TJ = 125 °C 50 Zero Gate Voltage Drain Current IDSS On-State Drain Currentb ID(on) 3.0 VDS = 100 V, VGS = 0 V, TJ = 175 °C Drain-Source On-State Resistanceb Forward Transconductanceb VDS =5 V, VGS = 10 V RDS(on) gfs V nA µA 250 15 A VGS = 10 V, ID = 15 A 0.110 VGS = 10 V, ID = 15 A, TJ = 125 °C 0.170 VGS = 10 V, ID = 15 A, TJ = 175 °C 0.230 VGS = 6 V, ID = 10 A 0.115 VDS = 15 V, ID = 15 A 25  S Dynamica Input Capacitance Ciss Output Capacitance Coss Reverse Transfer Capacitance Crss Total Gate Chargec Qg Gate-Source Chargec Qgs c 110 20 VDS = 75 V, VGS = 10 V, ID = 15 A Rise Timec Fall Timec 1 td(on) tr c td(off) 25 5.5 nC 7 Rg Gate Resistance Turn-On Delay Timec pF 70 Qgd Gate-Drain Charge Turn-Off Delay Time 892 VGS = 0 V, VDS = 25 V, f = 1 MHz VDD = 75 V, RL = 5  ID  15 A, VGEN = 10 V, RG = 2.5  tf 3.2 8 12 35 55 17 25 30 45  ns Source-Drain Diode Ratings and Characteristic (TC = 25 °C) 45 ISM Pulsed Current A Voltageb VSD IF = 15 A, VGS = 0 V 0.9 1.5 V Source-Drain Reverse Recovery Time trr IF = 15 A, dI/dt = 100 A/µs 55 85 ns Diode Forward Notes: a. Guaranteed by design, not subject to production testing. b. Pulse test; pulse width  300 µs, duty cycle  2 %. c. Independent of operating temperature. Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. 服务热线：400-655-8788 2 IRLU3410PBF www.VBsemi.com TYPICAL CHARACTERISTICS (25 °C unless noted) 25 25 VGS = 10 thru 5V 20 I D - Drain Current (A) I D - Drain Current (A) 20 15 4V 10 5 15 10 TC = 125 °C 5 25 °C 3V - 55 °C 0 0 0 2 4 6 8 10 0 1 2 3 4 5 6 VGS - Gate-to-Source Voltage (V) VDS - Drain-to-Source Voltage (V) Output Characteristics Transfer Characteristics 0.14 40 TC = - 55 °C VGS = 6 V 25 °C 24 RDS(on)- On-Resistance () g fs - Transconductance (S) 0.12 32 125 °C 16 8 0.10 VGS = 10 V 0.08 0.06 0.04 0.02 0.00 0 0 5 10 15 20 0 25 5 10 ID - Drain Current (A) 20 25 ID - Drain Current (A) Transconductance On-Resistance vs. Drain Current 1500 V GS - Gate-to-Source Voltage (V) 20 1200 C - Capacitance (pF) 15 Ciss 900 600 300 Crss Coss 0 VDS = 75 V ID = 15 A 16 12 8 4 0 0 20 40 60 80 VDS - Drain-to-Source Voltage (V) Capacitance 100 0 8 16 24 32 40 Qg - Total Gate Charge (nC) Gate Charge 服务热线：400-655-8788 3 IRLU3410PBF www.VBsemi.com TYPICAL CHARACTERISTICS (25 °C unless noted) 100 VGS = 10 V ID = 15 A 2.4 2.0 I S - Source Current (A) R DS(on)- On-Resistance (Normalized) 2.8 1.6 1.2 0.8 TJ = 150 °C 10 TJ = 25 °C 0.4 0.0 - 50 - 25 0 25 50 75 100 125 150 1 175 0.3 0 0.6 0.9 1.2 TJ - Junction Temperature (°C) VSD - Source-to-Drain Voltage (V) On-Resistance vs. Junction Temperature Source-Drain Diode Forward Voltage THERMAL RATINGS 100 20 I D - Drain Current (A) I D - Drain Current (A) 10 µs Limited by R DS(on)* 15 10 5 100 µs 10 1 ms 1 10 ms 100 ms 1 s, DC TC = 25 °C Single Pulse 0 0 25 50 75 100 125 TC - Case Temperature (°C) 150 175 0.1 0.1 Maximum Avalanche Drain Current vs. Case Temperature 1 10 1000 100 VDS - Drain-to-Source Voltage (V) * VGS > minimum VGS at which RDS(on) is specified Safe Operating Area 2 Normalized Effective Transient Thermal Impedance 1 Duty Cycle = 0.5 0.2 0.1 0.1 0.02 0.05 Single Pulse 0.01 10 -4 10 -3 10 -2 10 -1 Square Wave Pulse Duration (sec) 1 10 Normalized Thermal Transient Impedance, Junction-to-Case 服务热线：400-655-8788 4 IRLU3410PBF www.VBsemi.com TOĆ251AA (DPAK) E A L2 b2 Dim A A1 b b1 b2 c c1 D E e L L1 L2 L3 D L3 L1 b1 L b MILLIMETERS c1 e c A1 INCHES Min Max Min Max 2.21 2.38 0.087 0.094 0.89 1.14 0.035 0.045 0.71 0.89 0.028 0.035 0.76 1.14 0.030 0.045 5.23 5.43 0.206 0.214 0.46 0.58 0.018 0.023 0.46 0.58 0.018 0.023 5.97 6.22 0.235 0.245 6.48 6.73 0.255 0.265 2.28 BSC 0.090 BSC 8.89 9.53 0.350 0.375 1.91 2.28 0.075 0.090 0.89 1.27 0.035 0.050 1.15 1.52 0.045 0.060 ECN: S-03946—Rev. E, 09-Jul-01 DWG: 5346 Note: Dimension L3 is for reference only. 服务热线：400-655-8788 5 IRLU3410PBF www.VBsemi.com Disclaimer All products due to improve reliability, function or design or for other reasons, product specifications and data are subject to change without notice. Taiwan VBsemi Electronics Co., Ltd., branches, agents, employees, and all persons acting on its or their representatives (collectively, the "Taiwan VBsemi"), assumes no responsibility for any errors, inaccuracies or incomplete data contained in the table or any other any disclosure of any information related to the product.(www.VBsemi.com) Taiwan VBsemi makes no guarantee, representation or warranty on the product for any particular purpose of any goods or continuous production. To the maximum extent permitted by applicable law on Taiwan VBsemi relinquished: (1) any application and all liability arising out of or use of any products; (2) any and all liability, including but not limited to special, consequential damages or incidental ; (3) any and all implied warranties, including a particular purpose, non-infringement and merchantability guarantee. Statement on certain types of applications are based on knowledge of the product is often used in a typical application of the general product VBsemi Taiwan demand that the Taiwan VBsemi of. Statement on whether the product is suitable for a particular application is non-binding. It is the customer's responsibility to verify specific product features in the products described in the specification is appropriate for use in a particular application. Parameter data sheets and technical specifications can be provided may vary depending on the application and performance over time. All operating parameters, including typical parameters must be made by customer's technical experts validated for each customer application. Product specifications do not expand or modify Taiwan VBsemi purchasing terms and conditions, including but not limited to warranty herein. Unless expressly stated in writing, Taiwan VBsemi products are not intended for use in medical, life saving, or life sustaining applications or any other application. Wherein VBsemi product failure could lead to personal injury or death, use or sale of products used in Taiwan VBsemi such applications using client did not express their own risk. Contact your authorized Taiwan VBsemi people who are related to product design applications and other terms and conditions in writing. The information provided in this document and the company's products without a license, express or implied, by estoppel or otherwise, to any intellectual property rights granted to the VBsemi act or document. Product names and trademarks referred to herein are trademarks of their respective representatives will be all. Material Category Policy Taiwan VBsemi Electronics Co., Ltd., hereby certify that all of the products are determined to be oHS compliant and meets the definition of restrictions under Directive of the European Parliament 2011/65 / EU, 2011 Nian. 6. 8 Ri Yue restrict the use of certain hazardous substances in electrical and electronic equipment (EEE) - modification, unless otherwise specified as inconsistent.(www.VBsemi.com) Please note that some documents may still refer to Taiwan VBsemi RoHS Directive 2002/95 / EC. We confirm that all products identified as consistent with the Directive 2002/95 / EC European Directive 2011/65 /. Taiwan VBsemi Electronics Co., Ltd. hereby certify that all of its products comply identified as halogen-free halogen-free standards required by the JEDEC JS709A. Please note that some Taiwanese VBsemi documents still refer to the definition of IEC 61249-2-21, and we are sure that all products conform to confirm compliance with IEC 61249-2-21 standard level JS709A.
