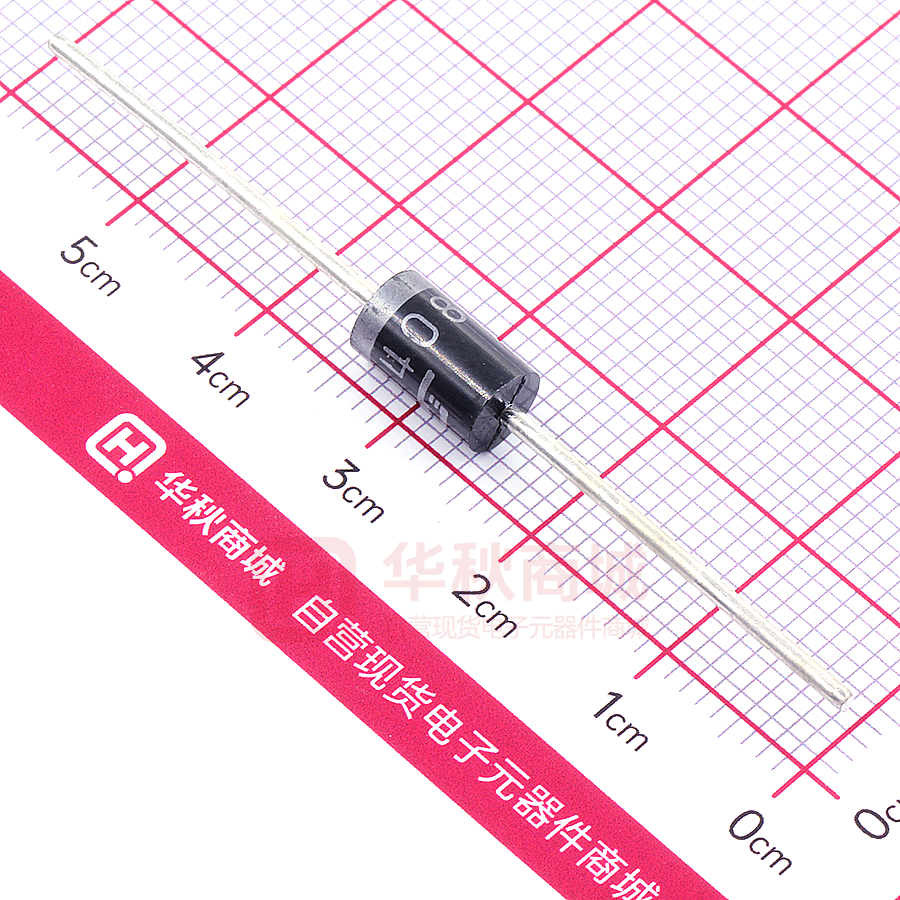

1N5408

1N5400 - 1N5408 AXIAL LEADED SILICON RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 3.0 A Features ! High Current Capability and Low Forward Voltage Drop ! Low Reverse Leakage Current B A A ! Plastic Material: UL Flammability Classification Rating 94V-0 Mechanical Data ! ! ! ! ! ! C D Case: DO-201AD Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 Polarity: Cathode Band Mounting Position: Any Marking: Type Number Weight: 1.1 grams (approx.) DO-201AD Dim Min Max A 25.40 ¾ B 7.20 9.50 C 1.20 1.30 D 4.80 5.30 All Dimensions in mm Maximum Ratings and Electrical Characteristics @ TA = 25°C unless otherwise specified Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Output Current @ TA = 105°C (Note 1) Non-Repetitive Peak Forward Surge Current 8.3ms Single half sine-wave superimposed on rated load (JEDEC Method) Symbol 1N 5400 1N 5401 1N 5402 1N 5404 1N 5406 1N 5407 1N 5408 Unit VRRM VRWM VR 50 100 200 400 600 800 1000 V VR(RMS) 35 70 140 280 420 560 700 V IO 3.0 A IFSM 200 A @ IF = 3.0A VFM 1.0 V Peak Reverse Current at Rated DC Blocking Voltage @ TA = 25°C @ TA = 150°C IRM 10 100 mA Typical Junction Capacitance (Note 2) Cj Forward Voltage Typical Thermal Resistance Junction to Ambient Operating and Storage Temperature Range Notes: 50 25 pF RqJA 15 K/W Tj, TSTG -65 to +150 °C 1. Valid provided that leads are kept at ambient temperature at a distance of 9.5mm from the case. 2. Measured at 1.0MHz and applied reverse voltage of 4.0V DC. 1 of 2 www.sunmate.tw 3.0 2.0 1.0 0 25 50 75 100 125 150 175 200 IF, INSTANTANEOUS FORWARD CURRENT (A) I(AV), AVERAGE FORWARD CURRENT (A) 4.0 200 100 10 1.0 0.2 TA, AMBIENT TEMPERATURE (°C) Fig. 1 Forward Current Derating Curve 0.4 0.8 1.2 1.6 2.0 2.4 2.8 3.2 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 2 Typical Forward Characteristics 200 100 1N5400 - 1N5405 100 Cj, CAPACITANCE (pF) IFSM, PEAK FORWARD SURGE CURRENT (A) Tj = 25ºC 1N5406 - 1N5408 10 Tj = 25°C Pulse width = 8.3ms f = 1MHz Tj = 25ºC 1.0 10 1.0 10 1.0 100 10 100 VR, REVERSE VOLTAGE (V) Fig. 4 Typical Junction Capacitance NUMBER OF CYCLES AT 60Hz Fig. 3 Maximum Non-Repetitive Surge Current 2 of 2 www.sunmate.tw
