贴片型铝电解电容器
PRODUCT NAME:
V-chip Aluminum Electrolytic Capacitors
系列：
SERIES:
规格
DESCRIPTION
RVT Series, 105C, 20%, Standard
料号:
（详见电气参数及料号）
Material NO:（See electrical parameters and material number）
客户承认栏
APPROVAL COLUMN
审核
CHECKED BY
发行确认栏
APPROVED BY
确认
APPROVED BY
审核
CHECKED BY
确认
APPROVED BY
章江峰
罗飞
签认后, 敬请惠返一份, 多谢！
Please chop, sign and return to us a copy after approval. Thank you!
1
ROQANG RVT
NO
1
Seri
es
RVT
料号

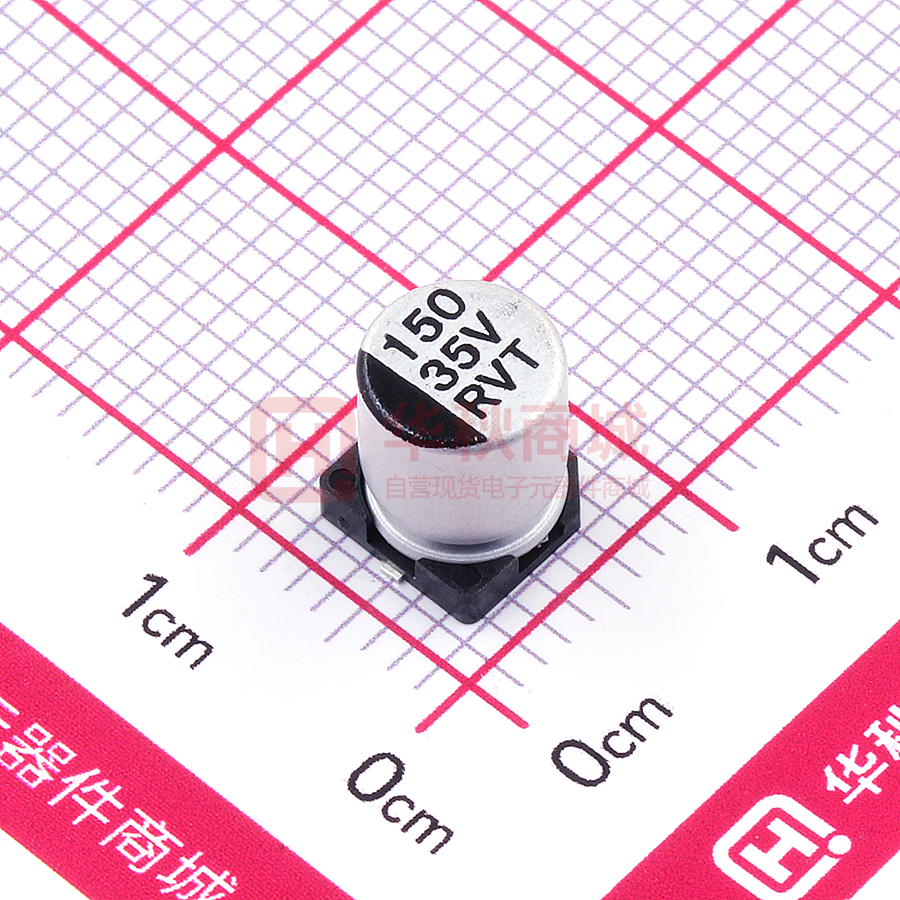

RVT1V151M0607
SERIES
V-chip Aluminum Electrolytic Capacitors
WV
Cap.
(V)
(uF)
35
150
Cap.
DF
LC
tol.
（％）
（uA）
(%)
120Hz
（2min）
120Hz
20℃
≤
20℃
≤
±20
16
Allowable
DΦ* L
P
±0.5
ripple
current (mA
Remarks
rms) at 105C,
120Hz
52.5
6.3*7.7
2.2
122
2
3
4
5
6
7
8
9
10
11
12
13
14
2
ROQANG RVT
SERIES
V-chip Aluminum Electrolytic Capacitors
产品承认书目录
一、承认书封面 …………………………………………………………………第 1 页
二、规格目录
…………………………………………………………………第 2 页
三、承认书目录 …………………………………………………………………第 3 页
四、工艺流程
…………………………………………………………………第 4 页
五、承认书内容
1.范围
………………………………………………………第 5 页
2.参考标准
………………………………………………………第 5 页
3.环境保护标准
………………………………………………………第 5 页
4.使用温度范围
………………………………………………………第 5 页
5.电压范围
………………………………………………………第 5 页
6.容量范围
………………………………………………………第 5 页
7.容量偏差范围
………………………………………………………第 5 页
8.漏电流
………………………………………………………第 5 页
9.损耗角
………………………………………………………第 5 页
10.低温特性
………………………………………………………第 5 页
11.耐久性
………………………………………………………第 6 页
12.高温储存
………………………………………………………第 6 页
13.耐焊接热
………………………………………………………第 6 页
14.产品标识
………………………………………………………第 7 页
15.产品图样
………………………………………………………第 7 页
16.产品尺寸
………………………………………………………第 8 页
17.编带说明
………………………………………………………第 8 页
18.无铅回流焊接
………………………………………………………第 11 页
19.引线原材料
………………………………………………………第 12 页
20.电容器代码标志
………………………………………………………第 12 页
21.电容器结构
………………………………………………………第 13 页
22.纹波电流的频率系数……………………………………………………第 13 页
23.电气参数及料号
……………………………………………………第 13 页
24.片式铝电解电容器一般使用注意事项…………………………………第 14 页
A.电路设计
………………………………………第 14 页
B.安装
………………………………………第 16 页
C.安装后
………………………………………第 17 页
D.维护和检验
………………………………………第 18 页
E.紧急情况
………………………………………第 18 页
F.储存
………………………………………第 18 页
G.处置
………………………………………第 19 页
3
ROQANG RVT
SERIES
V-chip Aluminum Electrolytic Capacitors
4
ROQANG RVT
1.范围:
V-chip Aluminum Electrolytic Capacitors
SERIES
Scope
适用“RVT 系列”立式片式铝电解电容器
This specification covers “RVT Series” V-chip aluminum electrolytic capacitors.
2.参考标准:
Reference Standard
国际标准 IEC 60384 与日本工业标准 JIS C-5101
The international standard IEC 60384 and Japanese industrial standard JIS C-5101.
3.环境保护标准： Environmental Protection Standard
遵照欧盟指令 2002/95/EC.
Comply with the EU directive 2002/95/EC.
4.使用温度范围： Operating Temperature Range
-40C ~ +105C
5.电压范围： Voltage Range
DC: 4 ~ 100V
6.容量范围： Capacitance Range
CAP: 0.1~ 6800F
7.容量偏差范围： Capacitance Tolerance
20% at 120Hz, +20C
8.漏电流： Leakage Current
Ф4～Ф10
Ф12.5～Ф16
2 分钟后读数
I ≤ 0.01 CV or 3 (A) whichever is greater
（After 2 minutes of reading）
1 分钟后读数
I ≤ 0.03 CV or 4 (A) whichever is greater
（After 1 minutes of reading）
9.损耗角： Tan
测试频率：120Hz，温度：20℃
Measurement frequency: 120Hz, Temperature: 20C
Rated Voltage (V)
4
6.3
10
16
25
35
Ф4～Ф10
0.35 0.32 0.24 0.20 0.18 0.16
Tan (max.)
Ф12.5～Ф16 0.40 0.38 0.34 0.30 0.26 0.22
注：容量超过 1，000uF 者，每增加 1，000uF 则 tanδ设定增加 0.02.
50
0.14
0.18
63
0.14
0.14
100
0.14
0.14
10.低温特性： Stability at Low Temperature 测试频率：120Hz （Measurement frequency: 120Hz）
Low Temperature
Stability
Impedance Ratio
(MAX)120Hz
Rated Voltage (V)
Z-25C/Z+20C
Ф4～Ф10
Z-40℃/Z+20℃
Z-25C/Z+20C
Ф12.5～Ф16
Z-40℃/Z+20℃
4
7
17
7
17
6.3
4
10
5
12
10
3
8
4
10
16
2
6
3
8
25
2
4
2
5
35
2
3
2
4
50
2
3
2
3
63
2
3
2
3
100
3
4
2
3
5
ROQANG RVT
SERIES
V-chip Aluminum Electrolytic Capacitors
11．耐久性： Load Life
在 105℃环境中，按照规定时间连续加载额定电压后，待温度恢复到 25℃进行测量时，应满足以下
要求.
The following specifications shall be satisfied when the capacitors are restored to 25℃
after the rated voltage is applied for the specifiedperiod of time at 105℃, Should meet
the following requirements
尺寸代码 Size code
规定时间 Time
容量变化率
Capacitance Change
损耗角正切值
Dissipation Factor
漏电流
Leakage Current
4*5.4～6.3*5.4L
2000 小时（2,000 hours）
±30%初始值内
Within 30% of initial
value
≤300%初始规定值
Not more than 200% of
the specified value
≤初始规定值
Not more than the
specified value
6.3*7.7～10*13.5L
2000 小时
（2,000 hours）
±25%初始值内
Within 25% of initial
value
≤300%初始规定值
Not more than 200% of
the specified value
≤初始规定值
Not more than the
specified value
12.5*13.5～16*16.5L
2000 小时（2,000 hours）
±20%初始值内
Within 20% of initial
value
≤200%初始规定值
Not more than 200% of
the specified value
≤初始规定值
Not more than the
specified value
12.高温储存： Shelf Life
在 105℃环境中，无负荷放置 1,000 小时（Ф4*5.4～Ф6.3*5.4L：500 小时）后待温度恢复到 25℃，
进行试验前处理 (JIS C 5101-4 4.1 项) 后进行测量时，应满足上述耐久性的标准值.
The following specifications shall be satisfied when the capacitors are restored to 25℃
after exposing them for 1,000 hours (500 hours for Ф4*5.4 toФ6.3*5.4L size) at 105℃
without voltage applied. Before the measurement, the capacitor shall be preconditioned by
applying voltage according to Item 4.1 of JIS C 5101-4,Should meet the above durability
of the standard value.
13.耐焊接热：Resistance to Soldering Heat
在 250℃的条件下，电容器在热板上保持 30 秒，然后从热板上取下电容器，让其在室温下恢复，电
容器应满足以下要求：
The capacitors shall be kept on then hot plate maintained at 250℃ for 30 seconds.After
removing from the hot plate and restored at room
temperature, they meet the following
requirement ：
容量变化率
Capacitance Change
损耗角正切值
Dissipation Factor
漏电流
Leakage Current
±10%初始值内
Within ±10% of the initial value
≤初始规定值
Not more than the specified value
≤初始规定值
Not more than the specified value
6
ROQANG RVT
V-chip Aluminum Electrolytic Capacitors
SERIES
14.标识： Marking
电容器标识内容如下：
Capacitors shall be legibly marked with the following:
1） 产品系列：
Manufacture’s mark
2） 额定电压和标称容量：
Rated voltage and nominal capacitance
3） 负极标识：
Negative polarity
≥
标称容量
负极标识
额定电压
系列名称
15.图样： Drawing (Unit: mm)
(4～6.3)端子代码：A 型
470
25V
RVT
标称容量
负极标识
额定电压
系列名称
标称容量
1000
25V
RVT
额定电压
系列名称
Positive
Plastic platefom
B±0.2
E±0.2
E±0.2
P
A±0.2
D±0.5
0.3max.
C±0.2
47
16V
RVT
0.4Max.
负极标示
Negative
L±0.3
W
(8,～ 10) 端子代码：A 型
C±0.2
P
E0.2
D±0.5
A±0.2
E0.2
B±0.2
0.3max.
0.4Max.
Positive
Plastic platform
Negative
L0.5
W
7
ROQANG RVT
SERIES
V-chip Aluminum Electrolytic Capacitors
(8,～ 16) 端子代码：G 型
B±0.2
C±0.2
E0.2
P
(b)
D±0.5
A±0.2
E0.2
0.3max.
0.4Max.
Positive
Plastic platform
(a)
L0.5
Negative
W
16.尺寸：Dimensions (Unit: mm)
Size
A
B
C
P
L
W
Ф4×5.4
4.3
4.3
5.1
1.0
5.4
Size
A
B
C
P
L
（a）
（b）
W
Ф8×10.2
8.3
8.3
9.2
3.1
10.2
0.5
1.8
17.编带说明：
Ф5×5.4
5.3
5.3
6.1
1.3
5.4
Ф6.3×5.4 Ф6.3×7.7
6.6
6.6
6.6
6.6
7.4
7.4
2.2
2.2
5.4
7.7
0.5 ~ 0.8
Ф10×10.2
10.3
10.3
11.2
4.5
10.2
0.5
2.1
0.7 ~ 1.1
Ф10×13.5
10.3
10.3
11.2
4.5
13.5
0.5
2.1
Ф8×6.5
8.3
8.3
9.2
3.1(2.2)
6.5
Ф12.5×13.5
13.0
13.0
13.8
4.5
13.5
1.3
3.0
Ф12.5×16
13.0
13.0
13.8
4.5
16.0
1.3
3.0
1.0 ~ 1.3
Ф16×16.5
17.0
17.0
18.0
6.5
16.5
2.0
3.0
Taping Specifications
符合标准 JIS C0806 与 IEC 602863.(Applicable standard JIS C0806 and IEC 60286)
17.1.盒带图样尺寸与包装
Cassette pattern size and packaging
Fig.1 (4 ~ 10)
8
ROQANG RVT
SERIES
V-chip Aluminum Electrolytic Capacitors
尺寸
Size
W
P
F
A0
B0
T2
(MM)
(MM)
(MM)
(MM)
(MM)
(MM)
Φ4*5.4
12
8
5.5
4.7
4.7
5.8
--
Φ5*5.4
12
12
5.5
6.0
6.0
5.8
--
Φ6.3*5.4
16
12
7.5
7.0
7.0
5.8
--
Φ6.3*7.7
16
12
7.5
7.0
7.0
8.3
--
Φ8*6.5
16
12
7.5
8.7
8.7
7.0
--
Φ8*10.2
24
16
11.5
8.7
8.7
11.0
--
Φ10*10.2
24
16
11.5
10.7
10.7
11.0
--
Φ10*13.5
24
16
11.5
10.7
10.7
14.1
--
S
形状
Applicabl
e
Fig.1
Fig.2 (Φ12 以上产品)
W
P
F
A0
B0
T2
(MM)
(MM)
(MM)
(MM)
(MM)
(MM)
Φ12.5*13.5
32
24
14.2
14.0
14.0
14.1
28.4
Φ12.5*16
32
24
14.2
14.0
14.0
16.4
28.4
Φ16*16.5
44
28
20.2
17.5
17.5
16.9
40.4
尺寸
Size
S
形状
Applicabl
e
Fig.2
9
ROQANG RVT
SERIES
V-chip Aluminum Electrolytic Capacitors
17.2.卷盘 : Reel
2
130.5
D Max.
50 Min.
23
2.0
A
17.3. 包装数量: Package quantity
规格
Specification
卷装数量
Quantity/Reel
盒装数量
Quantity/Bag
A±0.3
(MM)
D±2
(MM)
Φ4*5.4
2000 pcs
20000 pcs
14
382
Φ5*5.4
1000 pcs
10000 pcs
14
382
Φ6.3*5.4
1000 pcs
10000 pcs
18
382
Φ6.3*7.7
1000 pcs
10000 pcs
18
382
Φ8*6.5
1000 pcs
10000 pcs
18
382
Φ8*10.2
500 pcs
5000 pcs
26
382
Φ10*10.2
500 pcs
5000 pcs
26
382
Φ10*13.5
300 pcs
3000 pcs
26
382
Φ12.5*13.5
200 pcs
600 pcs
34
332
Φ12.5*16
150 pcs
450 pcs
34
332
Φ16*16.5
125 pcs
250 pcs
46
332
10
ROQANG RVT
SERIES
V-chip Aluminum Electrolytic Capacitors
18. 无铅回流焊接：Lead-free Reflow Soldering Condition
A. 回流焊条件推荐：Recommended Conditions for Reflow Soldering：
（1）应采用红外线及热风回流焊接，不宜采用汽相加热回流焊接；
A thermal condition system such as infrared radiation (IR) or hot blast should be
adopted, and vapor heat transfer systems (VPS) are not recommended.
（2）推荐回流焊只进行一次，回流焊次数如果需要二次，必须相隔 60 分钟以上；
Reflow soldering should be performed one time. If the capacitor has to be reflowed
twice, 60 minutes must be layout between each time.
（3）无铅回流焊，请符合下述条件：
For lead-free type reflow soldering, please observe proper conditions below:
a)从 150℃至 180℃的预热时间＜120 秒以内；
The time of preheating from 150°C to 180°C shall be within maximum 120 seconds;
b)电容器顶部温度超过 217℃的焊接时间不超过 tL 时间；
The time of soldering temperature at 217°C measured on capacitors' top shall not
exceed tL (second);
c)电容器顶部温度超过 230℃的焊接时间不超过 td 时间；
The time of soldering temperature at 230°C measured on capacitors' top shall not
exceed td (second);
d)电容器顶部尖峰温度不超过 Tp℃，在 5℃范围内的实际尖峰温度时间不超过 tp 时间
The peak temperature on capacitors' top shall not exceed Tp(°C), and the time
within 5°C of actual peak temperature shall not exceed tp (second).
B.回流焊曲线图： Classification
Reflow
Profile：
11
ROQANG RVT
SERIES
V-chip Aluminum Electrolytic Capacitors
C. 尖峰温度允许范围：Allowable Range of Peak Temperature
Size
4~6.3*7.7L
8*6.5L
8/1013.5L
12.5～16
Thickness (mm)
2.5
2.5
2.5
3.0
Tp(°C)
260±0
240±0
235±0
230±0
tL (second)
≤60
≤30
≤40
≤20
td (second)
≤20
≤10
≤10
--
tp (second)
≤5
≤5
≤5
≤3
D.表面安装推荐尺寸： Recommended Land Size (Unit: mm)
尺寸 Size
Φ4
Φ5
Φ6.3
Φ8
Φ10
Φ12.5
Φ16
X
1.6
1.6
1.6
2.5
2.5
3.0
3.5
Y
2.6
3.0
3.5
3.5
4.0
5.7
6.5
a
1.0
1.4
1.9
3.0
4.0
4.0
6.0
19.引线原材料： The Raw Materials of Lead Wire
Name
Material
Fe
Cu
Sn
TPCS
Percentage
71.35%
20%
8.65%
20.电容器代码标志： Explanation of Part Number
1
2
3
Series
4
Voltage (WV)
5
6
7
Capacitance (F)
8
9
10
-
Cap. Tol. (%)
11
12
Case Size
Series:
产品系列
Voltage：
产品额定工作电压
Capacitance：
产品标称静电容量
Cap. Tol：
产品静电容量误差范围
Case Size：
产品外壳尺寸
例如：
Example:
1A
RVT
221
M
0605
产品外壳尺寸 Case Size6.3*5.4
产品静电容量误差范围 Cap. Tol：±20%
产品标称静电容量 Capacitance：220μF
产品额定工作电压 Voltage：10V
产品系列 Series
额定电压
R.W.Voltage(V)
代 号
Code
4
6.3
10
16
25
35
50
63
100
0G
0J
1A
1C
1E
1V
1H
1J
2A
12
ROQANG RVT
SERIES
V-chip Aluminum Electrolytic Capacitors
21. 结构:Construction
铝壳 Aluminum case
电解纸 Electrolytic paper
铝箔 (阳极和阴极)
Aluminum foil (Anode & cathode foil)
电解液 Electrolytic
封口胶粒 Rubber seal
底座 Base plate
引出线 Lead wire
22. 额定纹波电流的频率导数 ：Frequency Coefficient of Allowable Ripple Current
尺寸代码
4*5.4～
10*13.5
12.5*13.5～
16*16.5
频率（Hz)
静电容量（UF)
0.1～100
150～3300
47～68
100～680
1000～6800
120Hz
1KHz
10KHz
100KHz
1.00
1.00
1.00
1.00
1.00
1.30
1.05
1.57
1.30
1.05
1.40
1.08
2.00
1.40
1.08
1.50
1.08
2.00
1.50
1.08
※ 铝电解电容器由于在纹波电流叠加时自我发热，温度上升而老化，每升温 5℃寿命减少一半,
要想保持长寿命请在使用过程中降低纹波电流.
23. 电气参数及料号：Electric parameter and Material number
电气参数：Electric parameter
NO
Series
Name
(WV / uF)
ΦD * L
Cap. tol.
(%)
120Hz
20℃
1
2
RVT
RVT
35V220
35V10
8*10.2
4*5.4
±20%
±20%
DF
（％）
120Hz
P
±0.5
Allowable
ripple
current
(mA rms) at
105C,
120Hz
3.1
1.0
195
15
LC
（uA）
20℃
（2min）
≤
≤
16
16
77
3.5
ESR
100KHz
(Ω)
20℃
≤
Remarks
13
ROQANG
RVT
SERIES
V-chip Aluminum Electrolytic Capacitors
料号：Material Number
NO
1
2
Series
RVT
RVT
Name
35V220
35V10
ΦD * L
8*10.2
4*5.4
Material number
RVT1V221M0810VG
RVT1V100M0405VG
Remarks
24. 片式铝电解电容器一般使用注意事项
Application guideline for V-CHIP aluminum electolytic capacitors
A) 电路设计: Circuit Design
1) 充分考虑电容器使用和安装条件在产品目录的规定范围内.
Please make sure the environmental and mounting conditions to which the capacitor will be
exposed are within the conditions specified in catalogue.
2) 工作温度和施加的纹波电流应在产品目录的规定范围内.
Operating temperature and applied ripple shall be within specification.
3) 在设计电路时，应选择符合寿命要求的产品.
Appropriate capacitors which comply with the life requirement of the products should be
selected when designing the circuit.
4) 铝电解电容器是有极性的，不应加反向电压或交流电压。对可能出现反向电压的电路，应选择双极
性电容器。注意：即使双极性电容器，也不能直接用于纯交流电路.
Aluminum electrolytic capacitors are polar. Make sure that no reverse voltage or AC voltage
is applied to the capacitors. Please use bi-polar capacitors for a circuit that can possibly
see reversed polarity.
Note: Even bi-polar capacitors cannot be used for AC voltage application.
5）对需要快速和频繁充放电的电路，不应使用铝电解电容器而应选择特别设计的具有长寿命的电容器.
Do not use aluminum electrolytic capacitors in a circuit that requires rapid and very
frequent charge / discharge.
In this type of circuit, it is necessary to use a special design capacitor with extended
life characteristics.
6）不应使用过载电压.Do not apply excess voltage.
1
直流电压与纹波电压叠加后的峰值电压不应超过额定工作电压.
Please pay attention to that the peak voltage, which is DC voltage overlapped by ripple
current, will not exceed the rated voltage.
ROQANG RVT
SERIES
V-chip Aluminum Electrolytic Capacitors
14
若 2 个以上电容器串联，应确保施加电压低于额定值，而且要并联一个平衡电阻，以使每个电
容器所加电压相等.
In the case where more than 2 aluminum electrolytic capacitors are used in series, please
make sure that applied voltage will be lower than rated voltage and the voltage will
be applied to each capacitor equally by using a balancing resistor in parallel with the
capacitor
7）电容器不能应用于下述环境条件下：
Aluminum electrolytic capacitors shall not be used under the following environmental
conditions:
①(a) 电容器被暴露于水（包括浓缩液）、盐水或油中.
Capacitors will be exposed to water (including condensation), brine or oil.
2
(b) 周围环境中有氢化硫、亚硫酸、亚硝酸、氯气、溴气、溴化甲烷、氨气等有毒气体.
Ambient conditions that include toxic gases such as hydrogen sulfide, sulfurous acid,
nitrous acid, chlorine, bromine, methyl bromide, ammonium, etc.
(c) 周围环境中有臭氧、紫外线及辐射。
Ambient conditions that expose the capacitor to ozone, ultraviolet ray and radiation.
2
严重的振动及机械冲击超过产品目录的规定范围.
Severe vibration and physical shock conditions that exceed specification.
振动的测试条件如下
Vibration test condition:
振动频率范围
：
10-55-10Hz
vibration frequency range
: 10～55～10Hz
扫描频率
： 10-55-10Hz/分钟
sweep rate
: 10～55～10Hz/minute
扫描方式 ： 对数
sweep method : logarithmic
振幅或加速度 ：1.5mm (最大加速度为 10G)
amplitude or acceleration
: 1.5mm (max. acceleration is 10G)
振动方向 ： X、Y、Z 方向
direction of vibration : X, Y, Z direction
测试时间：每个方向 2 小时
testing time: 2 hours per each direction
冲击一般不适用.
Shock is not applicable normally.
如有特殊要求，请与我们销售部门联系.
If a particular condition is required, please contact our sales office.
8）
电解液主要化学溶剂及电解纸为易燃物，且电解液导电。当电解液与 PC 板接触时，可能会腐蚀
PC 板上的线路，或造成短路，以致产生烟或着火。因此在电容器封口下端不应有任何线路.
The main chemical solution of the electrolyte and the separator paper used in the
capacitors are combustible. The electrolyte is conductive. When it comes in contact with
the PC board, there is a possibility of pattern corrosion or short circuit between the
circuit pattern, which could result in smoking or catching fire. Do not locate any circuit
pattern beneath the capacitor end seal.
9） 设计线路板时应确保发热元器件不靠近铝电解电容器或 PC 板的另一面，避免其正好在电容器下面.
Do not design a circuit board that the heat generating components are placed near the
aluminum electrolytic capacitor or on the reverse side of PC board, if that just under
the capacitor.
ROQANG RVT
SERIES
V-chip Aluminum Electrolytic Capacitors
15
10） 设计线路板时应考虑到电容器的电性能可能随温度和频率的变化而变化.
Electrical characteristics may vary depending on changes in temperature and frequency.
Please consider this variation when you design circuits.
11） 当 2 个以上电容器并联时，应考虑到通过这些电容器的电流平衡。
When you install more than 2 capacitors in parallel, please consider the balance of current
flowing into the capacitors.
12） 在双面线路板上安装电容器时，电容器的安装位置应避开多余的基板孔和过孔。
While mounting capacitors on double-side PC board, the capacitors should be away from
those unnecessary base plate holes and connection holes.
B）安装:Mounting
1） 一旦电容器经过安装及加载，不要再试图用于其他线路板或其他用途.
Once a capacitor has been assembled in the set and power applied, do not attempt to re-use
the capacitor in other circuits or application.
2） 贮存超过 2 年的电容器，其漏电流可能增大。若漏电流增大，请使用 1KΩ电阻做充电处理.
Leakage current of the capacitors that have been stored for more than 2 years may increase.
When leakage current has increased, please perform a voltage treatment using a 1kΩ
resistor.
3） 在将电容器安装在 PC 板之前，请确认其规格和极性.
Please confirm specifications and polarity before installing capacitors on the PC board.
4） 不要将电容器掉在地上，或不要使用掉在地上的电容器.
Do not drop capacitors on the floor, nor use a capacitor that was dropped.
5） 安装时请不要损伤电容器.
Do not deform the capacitor during installation.
6） 请注意贴片机的吸头、产品检测夹具或对中装置对电容器的机械冲击.
Please pay attention to the mechanical shock to the capacitor by suction nozzle of the
automatic insertion machine or automatic mounter, or by product checker, or by centering
mechanism.
7） 回流焊:
Reflow soldering
1 请遵守产品目录中的回流焊条件.
Please follow “Reflow Soldering Conditions” in catalogue.
当使用红外线加热时，请注意加热程度，因为红外线吸收率会随着电容器颜色和大小的不同而
改变.
When an infrared heater is used, please pay attention to the extent of heating since
the absorption rate of infrared will vary due to difference in the color and size of
the capacitor.
8） 将电容器焊接在 PC 板后，不要倾斜或扭动电容器.
Do not tilt lay down or twist the capacitor body after the capacitor are soldered to the
PC board.
2
9） 不要抓住焊接后的电容器搬动 PC 板.
Do not carry the PC board by grasping the soldered capacitor.
10)不要让任何物品接触焊接后的电容器,如果 PC 板堆放储存，请确保 PC 板或其他零部件不触到电容器.
Please do not allow anything to touch the capacitor after soldering. If PC boards are stored
in stack, please make sure the PC board or other components away from the capacitor.
ROQANG RVT
SERIES
V-chip Aluminum Electrolytic Capacitors
16
11）焊接后的电容器不应受到任何已焊接 PC 板或其他元器件热辐射的影响.
The capacitors shall not be effected by any radiated heat from the soldered PC board or
other components after soldering.
12）清洗：
Cleaning
①不能用卤化清洗剂清洗电容器。如必须使用卤化清洗剂，请与我们销售部门联系.
Do not clean capacitors with halogenated cleaning agent. However, if it is necessary
to clean with halogenated cleaning agent, please contact our sales office.
②推荐清洗方法：
Recommended cleaning method
使用范围：任何类型及规格
Applicable : Any type, any ratings
清洗方法：浸泡、超声波或其他方法的总清洗时间应在 2 分钟内。清洗剂温度应在 40℃以下。
清洗后，应将电容器与 PC 板一起用热风吹至少 10 分钟。热风温度应低于电容器工作温度。水洗
后若不充分吹干，可能导致外观不良，如座板发胀等。
Cleaning conditions : Total cleaning time shall be within 2 minutes by immersion,
ultrasonic or other methods. Temperature of the cleaning agents
shall be 40℃ or below. After cleaning, capacitors should be dried
by using hot air for the minimum 10 minutes along with the PC board
mounted. Hot air temperature should be within the maximum
operating temperature of the capacitor. Insufficient dryness
after water rinse may cause appearance problems, such as
bottom-plate bulge and etc.
3
避免使用破坏臭氧层的清洗剂以保护环境.
Avoid using ozone destructive substances as cleaning agents for protecting global
environment.
C）安装后
In the Equipment
1）不要直接用手接触电容器正负极.
Do not directly touch terminal by hand.
2）不要在正负极之间用导体连接，也不要在电容器及其附近溅撒导电液体，如酸碱溶液等.
Do not link positive terminal and negative terminal by conductor, nor spill conductible
liquid such as alkaline or acidic solution on or near the capacitor.
3）在使用环境中应避免溅上水或油，避免阳光直射、紫外线照射、辐射、有毒气体、振动或机械冲
击.
Please make sure that the ambient conditions where the set is installed are free from
spilling water or oil, direct sunlight, ultraviolet rays, radiation, poisonous gases,
vibration or mechanical shock.
ROQANG RVT
SERIES
V-chip Aluminum Electrolytic Capacitors
17
D） 维护和检验
Maintenance and Inspection
请定期检测安装在工业设备上的电容器。检测项目如下：
Please periodically inspect the aluminum capacitors that are installed in industrial
equipment. The following items should be checked:
外观：明显缺陷，如防爆阀打开、电解液泄露等.
Appearance: remarkable abnormality such as pressure relief vent opening, electrolyte
leaking, etc.
电性能：电容量、损耗角正切、漏电流等，具体数据参见产品目录和相关产品规格书.
Electrical characteristics: capacitance, dielectric loss tangent, leakage current and
etc., which are specified in catalogue or alternate product specification.
E）紧急情况
In an Emergency
1）若看见因防爆阀动作而产生的烟气，请关闭主开关或拔开离合器.
If you see smoke due to operation of safety vent, please turn off the main switch or
pull out the plug from the outlet.
2）若吸入气体或咽下电解液，应立即用水清洗口腔和喉咙.
If you breathe the gas or ingest the electrolyte, please wash out your mouth and throat
with water immediately.
3）若皮肤沾上电解液，请用肥皂和水清洗干净.
If your skin is exposed to the electrolyte, please wash it away using soap and water.
F） 储存
Storage
1） 不要将电容器储存在温度和湿度高的地方,储存环境应为温度：5℃-35℃，相对湿度：
工商网监
湘ICP备2023018690号
