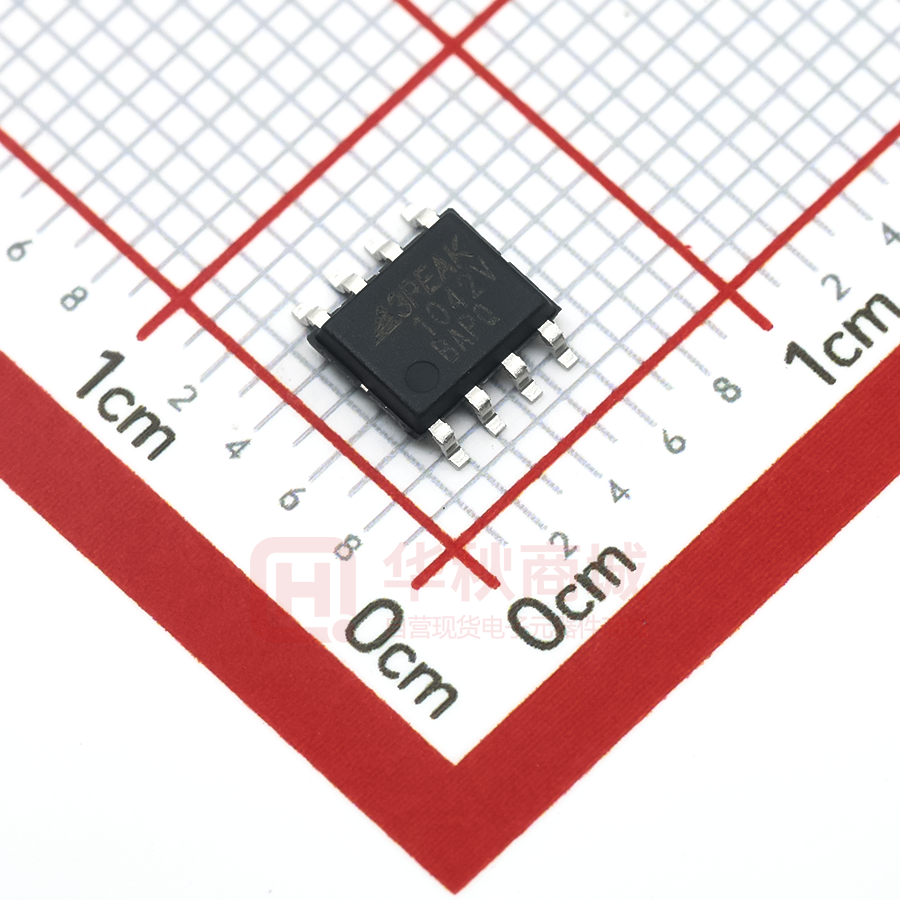

TPT1042, TPT1042V
Fault Protected High-speed CAN FD
Transceiver with Standby Mode
Features
Applications
Meet the ISO 11898-2:2016 and SAE J2284-1 to
SAE J2284-5 Physical Layer Standards
Support CAN FD and Data Rates up to 5 Mbps
Short propagation delay times and fast loop
times
5 V power supply, I/O voltage range supports 3V
to 5.5V MCU interface
Very low current standby mode with bus wake-up
capability
Ideal passive behavior to CAN bus when
unpowered
Common-Mode Input Voltage: ±30 V
Protection feature:
All Devices Supporting Highly Loaded CAN
Networks
Automotive and Transportation
Field Industrial Automation, Sensor and Drive
Systems
Building, Security Control Systems
− IEC 61000-4-2 ESD proteciton up to ±15kV
− Bus Fault protection: ±70V
− VCC and VIO(V variants only) undervoltage
protection
− TXD dominant time-out function and Busdominant time-out function
− Thermal shutdown protection
Available in SOP8 package and leadless
DFN3X3 package
Qualified for Automotive Applications with AECQ100 Reliability Test
Description
The TPT1042 is a CAN transceiver that meets the
ISO11898 high-speed CAN (Controller Area Network)
physical layer standard. The device is designed in
CAN FD networks up to 5 Mbps and enhances timing
margin and higher data rates in long and highly
loaded networks. As the design, the device features
cross-wire, overvoltage and loss of ground protection
from −70 V to +70 V, overtemperature shutdown, and
a −30 V to +30 V common-mode input Voltage range.
The TPT1042V has a secondary power supply input
for I/O level shifting the input pin thresholds and RXD
output level. This family has low current standby
mode with CAN BUS waked up capability. Additionally,
all devices include many protection features to
enhance the device and network robustness.
The TPT1042 and TPT1042V are available in SOP-8
and DFN3X3-8L packages and is characterized from
−40°C to +125°C.
Functional Block Diagram
www.3peakic.com.cn
1 / 18
Rev.Pre.9
TPT1042, TPT1042V
Fault Protected High-speed CAN FD
Transceiver with Standby Mode
Package Outline Dimensions
SO1R(SOP-8)
www.3peakic.com.cn
16 / 18
Rev.Pre.9
TPT1042, TPT1042V
Fault Protected High-speed CAN FD
Transceiver with Standby Mode
DF6R (DFN3X3-8L)
www.3peakic.com.cn
17 / 18
Rev.Pre.9
TPT1042, TPT1042V
Fault Protected High-speed CAN FD
Transceiver with Standby Mode
Order Information
Operating Temperature
Range
Package
Marking
Information
MSL
Transport Media,
Quantity
Eco Plan
TPT1042V-SO1R-S (1)
−40 to 125°C
SOP8
T42VQ
MSL1
Tape and Reel, 4000
Green
(1)
Order Number
TPT1042V-DF6R-S
−40 to 125°C
DFN3x3-8
T42VQ
MSL1
Tape and Reel, 4000
Green
(1)
−40 to 125°C
SOP-8
1042Q
MSL1
Tape and Reel, 4000
Green
TPT1042-DF6R-S (1)
−40 to 125°C
DFN3x3-8
1042Q
MSL1
Tape and Reel, 4000
Green
TPT1042V-SO1R (1)
−40 to 125°C
SOP8
T42VQ
MSL1
Tape and Reel, 4000
Green
TPT1042V-DF6R (1)
TPT1042-SO1R-S
−40 to 125°C
DFN3x3-8
T42VQ
MSL1
Tape and Reel, 4000
Green
TPT1042-SO1R
(1)
−40 to 125°C
SOP-8
1042Q
MSL1
Tape and Reel, 4000
Green
TPT1042-DF6R
(1)
−40 to 125°C
DFN3x3-8
1042Q
MSL1
Tape and Reel, 4000
Green
(1) Future product, contact 3PEAK factory for more information and sample
(2) Green: 3PEAK defines "Green" to mean RoHS compatible and free of halogen substances.
(3) MSL will be updated depending on the qualification report.
