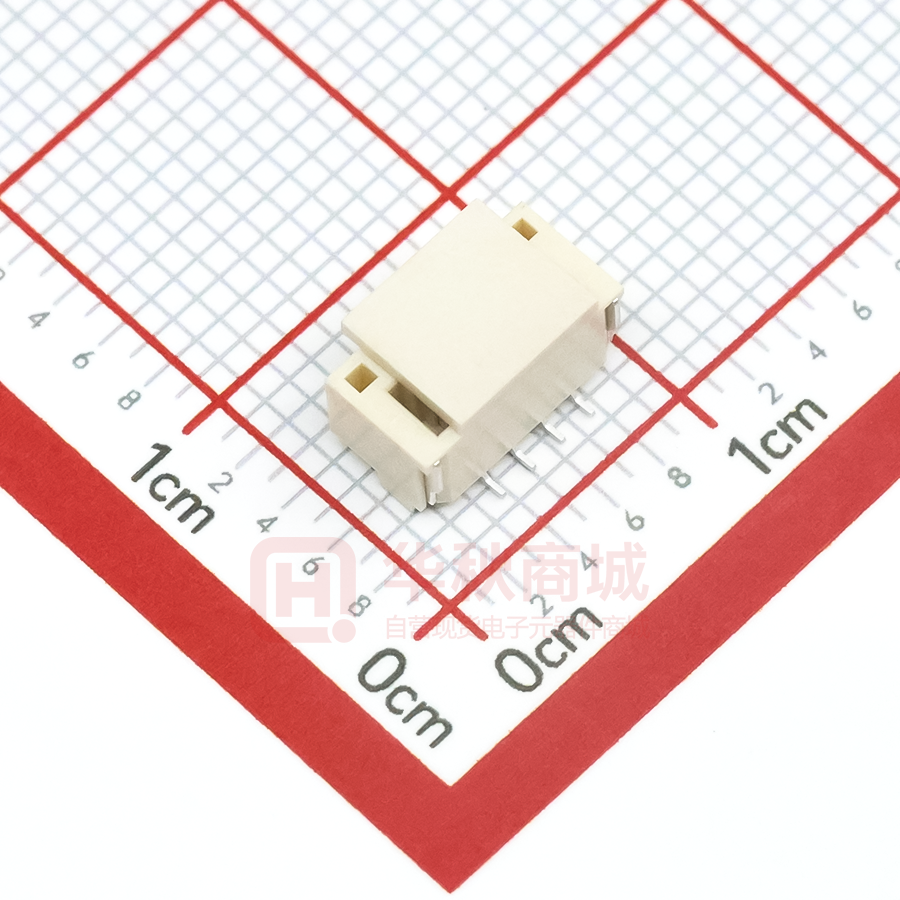

A1257WV-S-4P-LCP

A1257 SERIES 1.25mm pitch wire to board connector Specifications Current rating:1A AC,DC Voltage rating:50V AC,DC Temperature range:-40°C~+105°C Contact resistance:30m Max. Insulation resistance:100M Min. Withstanding voltage:500V AC/minute *Compliant with RoHS and REACH* *Meet the HF/Halogen Free,need to customize* *Contact CJT for details* Standards E326732 E326732 4.59 0.80 0.80 4.59 7.20 REF. 7.10 REF. CHANGJIANG CONNECTORS TEL:86-755-29959119 29959129 FAX:86-755-29959139 Http://www.CJT.cn A-54 A1257 SERIES A1257-T 1.25mm pitch wire to board connector 1.25mm pitch Crimp Terminal Reference Informations: *Used in CJT A1257 series Housing 1.42±0.25 1.40±0.25 0.12 0.40±0.20 0.90±0.25 SEC: A-A A 1.00±0.25 A SEC: B-B 0.55±0.10 Ordering information & Specifications: Wire Range Part NO Insulation O.D. 1.00mm(max) A1257-TP AWG#28-#32 1.00mm(max) A1257-GP AWG#28-#32 0.55±0.10 2.20±0.10 C 1.56±0.20 C 2.35±0.20 B 0.80±0.20 B 4.75±0.25 0.25±0.10 +0.05 0.80-0.15 0.40±0.10 SEC:C-C Unit:mm Qty/reel Material Finish Phosphor Bronze Tin over Nickel 20,000 PCS Phosphor Bronze Gold over Nickel 20,000 PCS Optional Gold plating available but MOQ requested A1257H 1.25mm pitch Housing A±0.20 1.25±0.10 3.55±0.25 2.80±0.20 Reference Informations: *Material:Nylon 66,UL94V-0 *Suitable CJT A1257 series Terminal *Mates with CJT A1257 series Wafer *Color:White Ordering Information & Dimensions: PART NO. Circuit 1 4.20±0.25 5.75±0.25 B±0.25 2.00±0.20 A1257H-2P A1257H-3P A1257H-4P A1257H-5P A1257H-6P A1257H-7P A1257H-8P A1257H-9P A1257H-10P A1257H-11P A1257H-12P A1257H-13P A1257H-14P A1257H-15P Dimensions A B 1.25 2.50 3.75 5.00 6.25 7.50 8.75 10.00 11.25 12.50 13.75 15.00 16.25 17.50 3.75 5.00 6.25 7.50 8.75 10.00 11.25 12.50 13.75 15.00 16.25 17.50 18.75 20.00 Unit: mm CHANGJIANG CONNECTORS TEL:86-755-29959119 29959129 FAX:86-755-29959139 Http://www.CJT.cn A-55 A1257 SERIES A1257HA 1.25mm pitch wire to board connector 1.25mm pitch Housing Reference Informations: *Material:PBT,UL94V-0 *Suitable CJT A1257 series Terminal *Mates with CJT A1257 series Wafer *Color:White A±0.20 6.70±0.25 6.00±0.20 3.30±0.20 3.70±0.20 4.15±0.25 Circuit 1 1.25±0.10 3.75 5.00 7.50 8.75 11.25 6.05 7.30 9.80 11.05 13.56 Unit: mm 1.35±0.10 Ordering Information & Dimensions: 1.00±0.10 A±0.10 P.C.B LAYOUT B±0.20 4.25±0.20 4.95±0.20 PART NO. 2.80±0.10 1.25±0.05 0.60±0.05 3.90±0.10 5.60±0.10 1.25±0.05 4.05±0.20 0.20±0.05 Dimensions A B 1.25mm pitch 180° Wafer-SMT TYPE Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:Nylon 9T,UL94V-0 *Mates with CJT A1257 series Housing *Color:Ivory Circuit 1 PART NO. A1257HA-4P A1257HA-5P A1257HA-7P A1257HA-8P A1257HA-10P B±0.25 A1257WV-S Ordering Information & Dimensions: A1257WV-S-2P A1257WV-S-3P A1257WV-S-4P A1257WV-S-5P A1257WV-S-6P A1257WV-S-7P A1257WV-S-8P A1257WV-S-9P A1257WV-S-10P A1257WV-S-11P A1257WV-S-12P A1257WV-S-13P A1257WV-S-14P A1257WV-S-15P Dimensions A B 1.25 2.50 3.75 5.00 6.25 7.50 8.75 10.00 11.25 12.50 13.75 15.00 16.25 17.50 5.75 7.00 8.25 9.50 10.75 12.00 13.25 14.50 15.75 17.00 18.25 19.50 20.75 22.00 Unit: mm CHANGJIANG CONNECTORS TEL:86-755-29959119 29959129 FAX:86-755-29959139 Http://www.CJT.cn A-56 A1257 SERIES A1257WR-S 1.25mm pitch wire to board connector 1.25mm pitch 90° Wafer-SMT TYPE Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:Nylon 9T,UL94V-0 *Mates with CJT A1257 series Housing *Color:Ivory 1.35±0.10 A±0.10 Ordering Information & Dimensions: PART NO. 1.00±0.10 P.C.B LAYOUT B±0.20 0.20±0.05 4.90±0.20 4.05±0.20 4.25±0.20 4.35±0.20 2.70±0.10 1.25±0.05 Circuit 1 0.60±0.05 3.70±0.10 5.40±0.10 1.25±0.05 A1257WR-S-2P A1257WR-S-3P A1257WR-S-4P A1257WR-S-5P A1257WR-S-6P A1257WR-S-7P A1257WR-S-8P A1257WR-S-9P A1257WR-S-10P A1257WR-S-11P A1257WR-S-12P A1257WR-S-13P A1257WR-S-14P A1257WR-S-15P Dimensions A B 1.25 2.50 3.75 5.00 6.25 7.50 8.75 10.00 11.25 12.50 13.75 15.00 16.25 17.50 5.75 7.00 8.25 9.50 10.75 12.00 13.25 14.50 15.75 17.00 18.25 19.50 20.75 22.00 Unit: mm CHANGJIANG CONNECTORS TEL:86-755-29959119 29959129 FAX:86-755-29959139 Http://www.CJT.cn A-57
