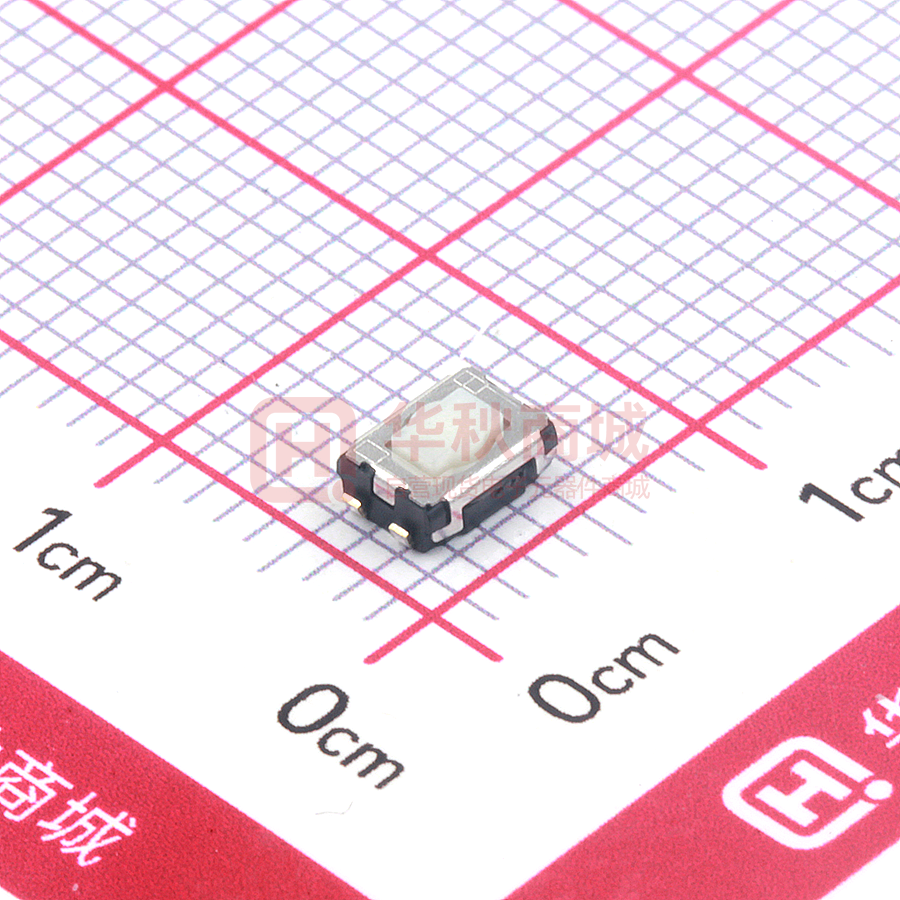

EVQP2R02M

Light Touch Switches/EVQP2/P9/3P2 ■ Dimensions in mm (not to scale) No. 2 (General dimension tolerance±0.2) EVQP2 EVQP9 1.6 H 2.1 +0.2 –0.1 Short push travel With J-bent terminals (With Ground terminal) 2.5 +0.2 –0.1 H 0.6     +0 5.5 –0.3 2.6 4.7±0.1 f2   Circuit diagram   1.65±0.1 3.5±0.1 1.7±0.1 0.6±0.1 2.7±0.1 0.7±0.1 6.6±0.1 3.7±0.1 PWB land pattern for reference Part Numbers Ground Terminal Operating Force H=Height Push Plate Color Operating Life EVQP2P02M With 1.0 N 2.1 mm White 1000000 cycles EVQP2P02W With 1.0 N 2.5 mm White 1000000 cycles EVQP2R02M With 1.6 N 2.1 mm White 1000000 cycles EVQP2R02W With 1.6 N 2.5 mm White 1000000 cycles EVQP2T02M With 2.4 N 2.1 mm White 500000 cycles EVQP2T02W With 2.4 N 2.5 mm White 500000 cycles EVQP2V02M With 3.5 N 2.1 mm White 200000 cycles EVQP2V02W With 3.5 N 2.5 mm White 200000 cycles EVQP9H02M With 5.0 N 2.1 mm White 200000 cycles EVQP9H02W With 5.0 N 2.5 mm White 200000 cycles EVQP2002M Without 1.0 N 2.1 mm White 1000000 cycles EVQP2002W Without 1.0 N 2.5 mm White 1000000 cycles EVQP2202M Without 1.6 N 2.1 mm White 1000000 cycles EVQP2202W Without 1.6 N 2.5 mm White 1000000 cycles EVQP2402M Without 2.4 N 2.1 mm White 500000 cycles EVQP2402W Without 2.4 N 2.5 mm White 500000 cycles EVQP2602M Without 3.5 N 2.1 mm White 200000 cycles EVQP2602W Without 3.5 N 2.5 mm White 200000 cycles EVQP9W02W Without 4.0 N 2.5 mm White 200000 cycles EVQP9P02M Without 5.0 N 2.1 mm White 200000 cycles EVQP9P02W Without 5.0 N 2.5 mm White 200000 cycles 01 Apr. 2015
