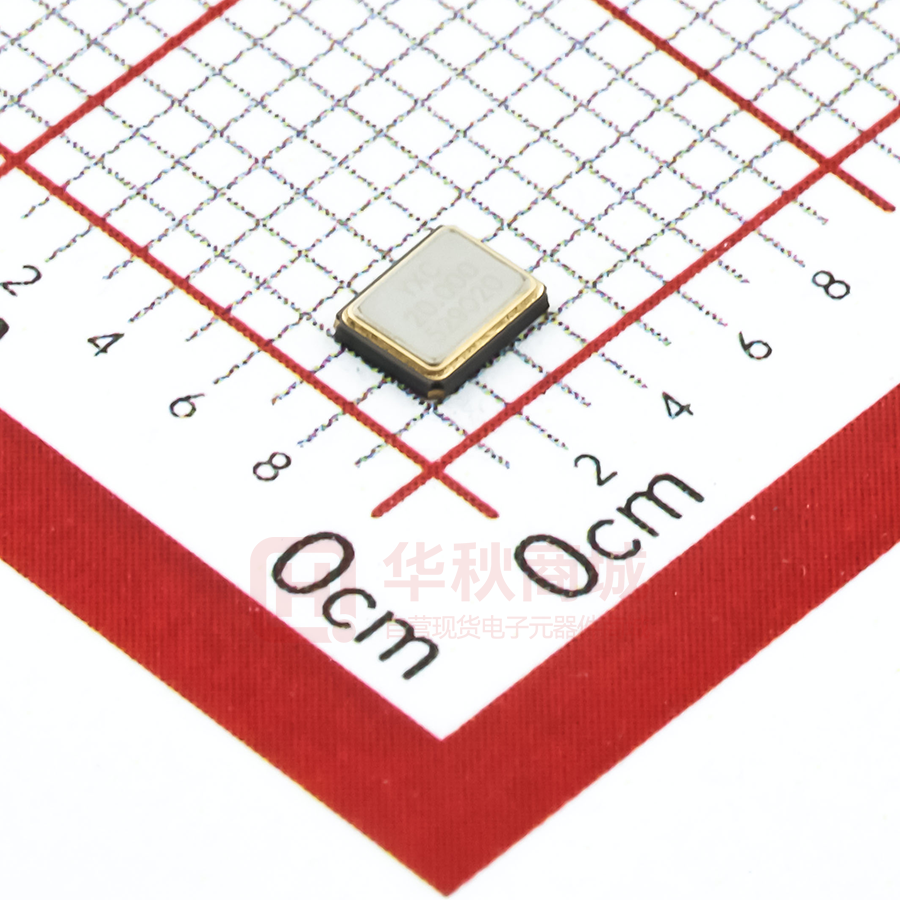

XC2OO-114-20M

深圳扬兴科技有限公司 产 品 规 格 书 SPECIFICATION 产品名称 石英晶体谐振器 QUARTZ CRYSTAL UNITS 型 号 YSX321SC 料 号 XC2OO-114-20M 标 准 参数 SMD-3225-20MHZ-12PF- -/+10PPM 页 次 共6页 确 认 签 章 客 户 客户物料号 机种/ 型号 批 准 审 核 检 验 扬 兴 签 核 制定 朱灿维 审核 批准 深圳扬兴科技有限公司 Shenzhen YangXing Technology Co.,Ltd. 地址：深圳市龙华区民治街道民塘路385号汇德大厦1号楼19层 ADDRESS： 19th Floor, 1st Huide Building, Mintang Rd No.385, Longhua District, Shenzhen TEL：0755-28444777 WEB: http://www.yxc.hk 第 1 页 共 6 页B.0 REV. 版本 Description of Revision History 修改内容 Date 日期 Engineer Reviewer 工程师 审核 A.0 新版页面修改 2020/11/11 马占军 蔡荣洪 B.0 新版页面修改，变更工程师 审核人员 2022/3/1 康明红 马占军 第 2 页 共 6 页B.0 MHz Range Crystal unit YSX321SC Product name 系列型号 YSX321SC 20.00000 MHz 12PF -/+10PPM Product Number / Ordering code 产品料号 XC2OO-114-20M 1.Specifications (characteristics)(规格参数) Symbol Min.（最小值） Typ.(典型值) Max.（最大值） Parameter(电气参数)  Fundamental Oscillation Mode（振动模式） Cutting Mode（切割方式）  AT  BT Unit（单位）  3rd  X +2° - 20 - MHz Frequency tolerance at 25ºC（常温频差） f_nom f_tol -10 - 10 x 10-6 Stability Over Temperature（温度稳定性） Load capacitance(负载电容) Motional resistance (ESR)（等效谐振电阻） Shunt capacitance（静电容） Motional capacitance（动态电容） Level of drive（激励功率） Operating temperature（工作温度） Storage temperature（储存温度） Frequency aging（老化率） f_tem CL R1 C0 C1 DL T_use T_stg f_age -80 -40 -55 -3 12 100 - 80 70 2 125 125 3 x 10-6 pF Ω pF fF µW ºC ºC -6 x10 /year Nominal frequency（标称频率） 2.External dimensions（外观尺寸） (Unit: mm) 3.Footprint(Recommended)（焊盘推荐） (Unit: mm) 4.Marking information(丝印说明) YXC① 20.000 ② 3 23 O * O ③ ④ ⑤ ⑥ ⑦ ①YangXing LOGO ⑥ ② Frequency ⑦ ③ Year ④ Production Cycle ⑤ Load capacitance 第 3 页 共 6 页B.0 Line Operating Temperature 5.Taping Specification（载带规格）(Unit: mm) Size A B C D E F G H SMD-3225 180±2.0 8.0±0.3 3.50±0.1 2.80±0.1 4.0±0.1 1.40±0.1 61.0±1.0 8.0±1.0 3000 pcs per reel 6.Reliability characteristic（可靠性） No Test Item Test Conditions（测试条件） Reference（参考） ( applicable to SMD type OSC and X’tal /(Glass type) SMD type X'tal for AEC-Q200) Test Items Test Condition 1. Pre-and Post-Stress Electrical Test Test is performed for crystal unit. 2. High Temperature 3 Temperature Cycling Test Condition E Specification OSC X’tal In spec In spec 1000 Hours at 125℃ △F≦±10PPM, Duty within spec △F≦±10PPM , △C.I ≦±10ohms 1000 Cycles( 40℃to 125℃) △F≦±10PPM, Duty within spec △F≦±10PPM , △C.I ≦±10ohms 1000 Hours 85℃85%R.H Rated VDD applied with 1MΩ and inverter in parallel △F≦±10PPM, Duty within spec △F≦±10PPM , △C.I ≦±10ohms 1000 Hours at 125℃ Rated VDD applied with 1MΩ and inverter in parallel △F≦±10PPM, Duty within spec △F≦±10PPM , △C.I ≦±10ohms External Visual Test Inspect device construction, marking and workmanship. Electrical Test not required. In spec In spec 7 Physical Dimension Verify external view and dimension as per the specification Electrical Test not required. In spec In spec 8. Mechani cal Shock Test 100gs, 6msec, 1/2sinusoid 3 times for each direction(X, Y, Z) △F≦±10PPM, Duty within spec △F≦±10PPM , △C.I ≦±10ohms 9. Vibration Test Freq. range: 10~2000Hz Peak to peak amplitude:1.5mm Peak acceleration 5g's for 20 minutes of 3 orientations(X,Y,Z) △F≦±10PPM, Duty within spec △F≦±10PPM , △C.I ≦±10ohms 10. Resistance to Soldering Heat Test IR reflowas STD 260±5℃/10sec Max twice. △F≦±10PPM, Duty within spec △F≦±10PPM , △C.I ≦±10ohms Exposure(Storage) Test 4. Biased Humidity Test 5. Operational Life Test 第 4 页 共 6 页B.0 11 Thermal Shock Test 100 cycles(-55℃ to +125℃) Max transfertime : 20sec. △F≦±10PPM, Duty within spec △F≦±10PPM , △C.I ≦±10ohms 12. Electrical Characterization Test Sample data is summary to show Min, Max,Mean and Standard deviation Satisfactory electrical performance. In spec In spec 13. Board Flex Test Apply a force which will bend the board (D)x=2mm Minimum (or as defined in the customer specification or Q200) The duration of the applied forces shall be 60(+5) Sec. △F≦±10PPM, Duty within spec △F≦±10PPM , △C.I ≦±10ohms 14. TerminalStrength (SMD) Test Force : 17.7N(1.8Kg) Test duration : 60+1 sec △F≦±10PPM, Duty within spec △F≦±10PPM , △C.I ≦±10ohms 7.Reflow profile（回流焊） (A)→Preheating area : 150~200°C, 60~120sec. (B)→Heating area : 217°C, 60~150sec. (C)→Peak temperature : 255~260°C, 30sec. Max. Ramp-up rate (217→260°C) : 3°C/sec. Max. Ramp-down rate (260→217°C) : 6°C/sec. Max. Time 25°C→260°C : 480sec. Max. Moisture Sensitivity Level : Level1 第 5 页 共 6 页B.0 8.Notice（注意） · 包装 PACKING · 包装方式应符合运输和装卸要求，特殊包装须经双方认可。 · Packing must prevent damage during transportation and handing. Specific method will be settled by mutual agreement。 · 对环境影响 INFLUENCE TO ENVIRONMENT · 本产品在生产过程中不使用 ODS Ⅰ，对臭氧层无破坏. · This product doesn’t use the class Ⅰ ODS at any of production process . · 生产厂家 MANUFACTURE · 公司名称：深圳扬兴科技有限公司 · Shenzhen YangXing Technology Co.,Ltd. · 其它 OTHERS · 1．如果您对本公司产品规格书有疑问或书中未列出，请与我方联系，协商解决及改进。 · If you have some doubt or unknowing about this specification, Please contact us for settlement or development. · 2.我们按照产品规格书要求保证晶体品质，若客户要求具体数据，我们可提供。 · We guarantee that quartz crystal unit satisfies this specification, If you need the data, we will provide it. · 3.变更与联络（MODIFY AND CONTACT） · 本产品在设计、工艺、材料、生产厂所、关键设备、操作人员等影响产品质量的因素有变更时，应事先提供更改后的产品并经过 · 质量认可后，方可大批量供货。 · When the quality is changed due to the changes of the design, technology, material, manufacture place, main equipment and · workers, we will first supply the modified products and obtain approval from you, then start to supply mass production. · 4.售前售后服务（AFTER SALE SERVICE） · 若在生产过程中遇到不良品，本公司负责调换，并及时提交不良品的分析及改进措施报告经认可。 · If the defection product was found in the production process, we will exchange and provide the improving measures in time. Contact us www.yxc.hk 第 6 页 共 6 页B.0
