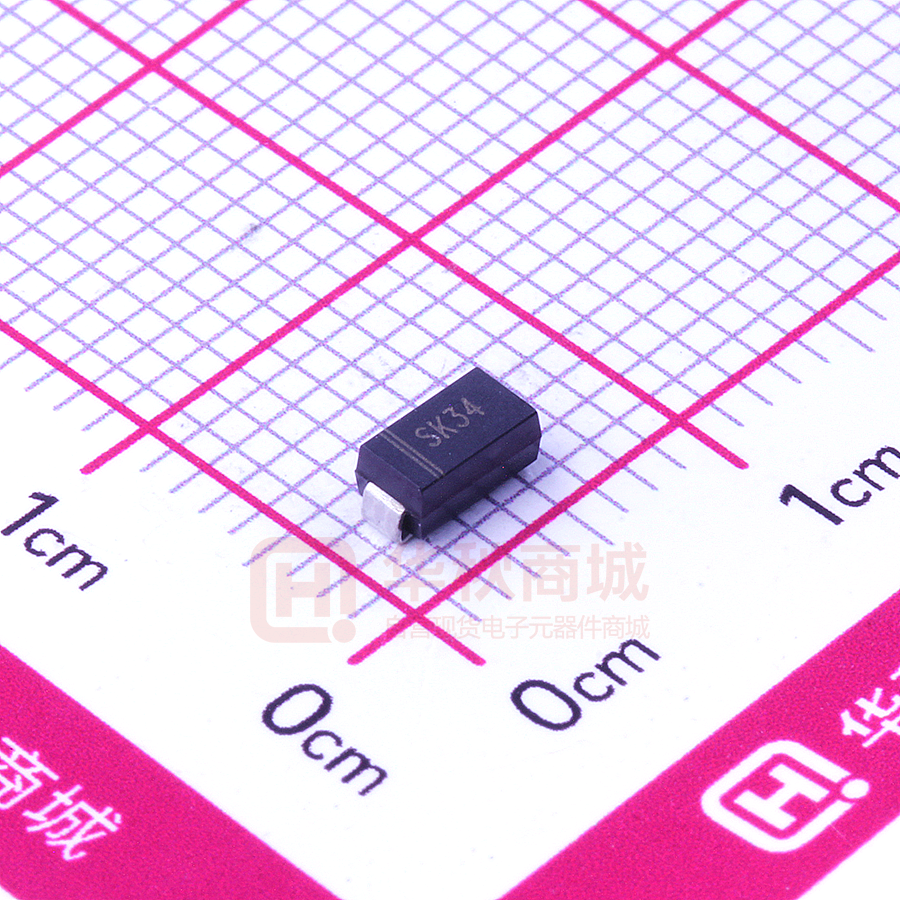

SK34

SK32 THRU SK310 Product specification SK32 THRU SK310 MECHANICAL DATA FEATURES  Case: Molded plastic  Ideal for surface mount applications  Epoxy: UL 94V-0 rate flame retardant  Easy pick and place  Metallurgically bonded construction  Built-in strain relief  Polarity: Color band denotes cathode end  Low forward voltage drop  Mounting position: Any  Weight: 0.063 grams Reference News PACKAGE OUTLINE PIN CONFIGURATION SMA(DO-214AC) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating 25 C ambient temperature uniess otherwies specified . Single phase half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Maximum Recurrent Peak Reverse Voltage 20 30 40 50 60 80 90 100 V Maximum RMS Voltage 14 21 28 35 42 56 63 70 V Maximum DC Blocking Voltage 20 30 40 50 60 80 90 100 V Maximum Average Forward Rectified Current At TL=100℃ A 3.0 Peak Forward Surge Current, 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) 80 Maximum Instantaneous Forward Voltage at 3.0A 0.55 Maximum DC Reverse Current Ta=25℃ at Rated DC Blocking Voltage Ta=100℃ A 0.70 0.1 5 300 Typical Junction Capacitance (Note1) Typical Thermal Resistance R JL (Note 2) 0.85 V 0.02 mA 2 mA pF 10 C/W Operating Temperature Range TJ -65 +150 ℃ Storage Temperature Range TSTG -65 +150 ℃ NOTES: 1. Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2. Thermal Resistance Junction to Lead. SK32 THRU SK310 FIG.2-TYPICAL FORWARD FIG.1-TYPICAL FORWARD CURRENT DERATING CURVE 0 20 40 60 80 100 120 140 160 180 200 LEAD TEMPERATURE ( C) PEAK FORWAARD SURGE CURRENT,(A) FIG.3-MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT 36 K 31 0 ~S K 32 ~S 3.0 38 SK 0.5 SK 1.0 10 35 1.5 SK 2.0 ~S K3 4 50 2.5 INSTANTANEOUS FORWARD CURRENT,(A) AVERAGE FORWARD CURRENT,(A) CHARACTERISTICS 3.0 1.0 Tj=25 C Pulse Width 300us 1% Duty Cycle 0.1 100 .01 80 .1 .3 .5 .7 .9 1.1 1.3 1.5 FORWARD VOLTAGE,(V) 60 8.3ms Single Half Tj=25 C Sine Wave 40 JEDEC method 20 FIG.5 - TYPICAL REVERSE 0 CHARACTERISTICS 1 5 50 10 100 100 NUMBER OF CYCLES AT 60Hz REVERSE LEAKAGE CURRENT, (mA) FIG.4-TYPICAL JUNCTION CAPACITANCE JUNCTION CAPACITANCE,(pF) 700 600 500 400 300 200 10 1.0 Tj=75 C .1 Tj=25 C 100 0 .01 .05 .1 .5 1 REVERSE VOLTAGE,(V) Copyright© Msksemi Incorporated 5 10 50 100 .01 0 20 40 60 80 100 120 140 PERCENTAGE RATED PEAK REVERSE VOLTAGE www.msksemi.com SK32 THRU SK310 PACKAGE ECHANICAL DATA A Ref. B C Dimensions H F G D E L J K Millimeters Min. Max. A 4.25 B Min. Max. 4.65 0.167 0.183 2.50 2.90 0.098 0.114 C 1.35 1.65 0.053 0.065 D 0.76 1.52 0.030 0.060 E 4.93 5.28 0.194 0.208 F 0.051 0.203 0.002 0.008 G 0.15 0.31 0.006 0.012 H 1.98 2.41 0.078 0.095 J 6.50 L 0.256 2.30 K DO-214AC (SMA) Inches 1.70 0.090 0.067 REEL SPECIFICATION P/N PKG QTY SK32 THRU SK310 SMA 2000 Copyright© Msksemi Incorporated www.msksemi.com SK32 THRU SK310 Attention ■ Any and all MSKSEMI Semiconductor products described or contained herein do not handle applications that require extremely high levels of reliability, such as life-support have specifications that can systems, aircraft's control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your MSKSEMI Semiconductor representative nearest you before using any MSKSEMI Semiconductor products described or contained herein in such applications. ■ MSKSEMI Semiconductor assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specificationsof any andall MSKSEMI Semiconductor products described orcontained herein. ■ Specifications of any and all MSKSEMI Semiconductor products described or contained herein stipulate the performance, characteristics, and functions of the described products in the independent state, and are not guarantees of the performance, characteristics, and functions of the described products as mounted in the customer’s products or equipment. To verify symptoms and states that cannot be evaluated in an independent device, the customer should always evaluate and test devices mounted in the customer’sproducts orequipment. ■ MSKSEMI Semiconductor. strives to supply high-quality high-reliability products. However, any and all semiconductor products fail with someprobability. It is possiblethat these probabilistic failures could give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire, or that could cause damage to other property. When designing equipment, adopt safety measures so that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective circuits anderror prevention circuitsfor safedesign, redundant design, and structural design. ■ In the event that any or all MSKSEMI Semiconductor products(including technical data, services) described or contained herein are controlled under any of applicable local export control laws and regulations, such products must not be exported without obtaining the export license from theauthorities concerned in accordance with the above law. ■ No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or any information storage or retrieval system, or otherwise, without the prior written permission of MSKSEMI Semiconductor. ■ Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not guaranteed for volume production. MSKSEMI Semiconductor believes information herein is accurate and reliable, but no guarantees are made or implied regarding its use or any infringementsof intellectual property rights or other rightsof third parties. ■ Any and all information described or contained herein are subject to change without notice due to product/technology improvement, etc. Whendesigning equipment, referto the "Delivery Specification" for the MSKSEMI Semiconductor productthat you intend to use. Copyright© Msksemi Incorporated www.msksemi.com
