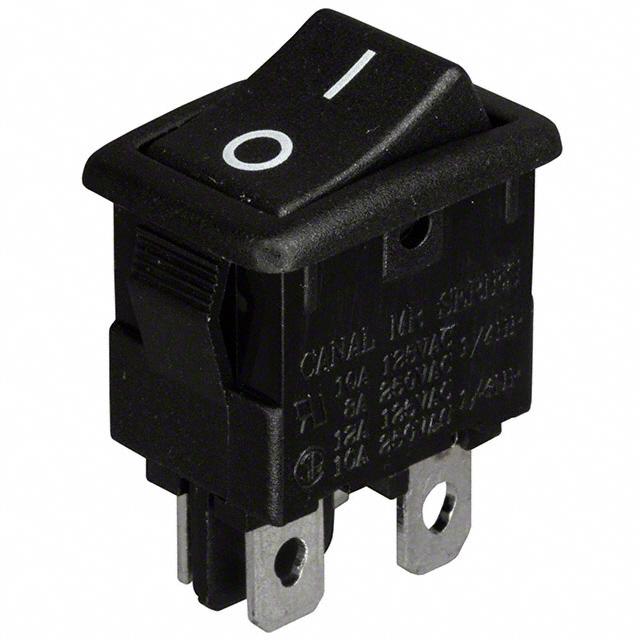

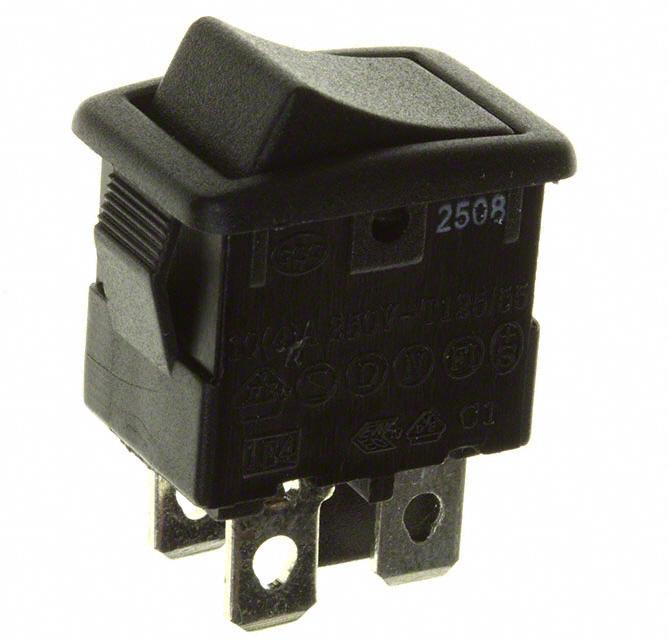

MR210C2NBB

New ! MR SERIES SNAP-IN ROCKER SWITCHES FEATURES Cost effective illuminated or non-illuminated models. N Double pole maintained action models. SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE Actuator and case color selections. Standard actuator marking options. SPECIFICATIONS Contact ratings: Initial contact resistance: Insulation resistance: Dielectric strength: Electrical life: Operating temperature range: 10A 125VAC (UL), 8A 250VAC 1/4HP (UL), 12A 125VAC (CSA) 10A 250VAC 1/4HP (CSA), 8(4)A 250V~ µ T86 (VDE, SEMCO, NEMCO, DEMCO, FIMCO, SEV). 20 milliohms max. 100 megohms min. at 500 V 1000 VAC for 1 minute 10,000 cycles at full load -20°C to 80°C MATERIALS Contacts: Terminals: Actuator: Case: Silver cadmium alloy Silver plated copper alloy Nylon type 66 (UL94V-2 min.) Nylon type 66 (UL94V-2 min.) AGENCY RECOGNITION Lamps: Neon or fluorescent. D s UL, CSA, VDE, SEMKO, NEMKO, DEMKO, FEMKO, & SEV. Models are supplied with agency markings. Quick connect terminals - non-illuminated MODEL NO. MR210C2NBB CIRCUIT ON OFF Above model has black actuator & case. N42 APEM, 63 NECK ROAD, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com New ! MR SERIES SNAP-IN ROCKER SWITCHES Quick connect terminals - illuminated N MODEL NO. CIRCUIT MR210C2LB0 ON Above model has black actuator & case. 3B 4B 1A 2A Additional ordering information: Commonly ordered models are shown above with complete model numbers and specifications. Below is an order format that enables you to 'build your own switch' and specify the correct switch model number by simply selecting from all available options shown and filling in the boxes. 'BUILD YOUR OWN SWITCH' ORDER FORMAT Fill in boxes with selections shown for Model Structure, then add Options selections for complete model number. Allowable options are shown below each respective box. Model Structure: Series Number of poles Electrical functions M R 2 1 Double pole Terminals Actuator shape C ON OFF 0 1 3 Quick connect Solder lug Straight p.c. Curved Example of completely specified model number: Options: Actuator marking 1 2 3 4 5 Illumination HI LO No marking ON OFF O I O Case color N No illum. L Illuminated Note: illumination available with Green, Orange or Red Actuator color only. Actuator color A Gray B Black W White A B G O R W Gray Black Green Orange Red White Waterproof cover N None W Waterproof Cover TERMINALS QUICK-CONNECT MR210C2NBB PANEL CUT-OUTS SOLDER LUG STRAIGHT P.C. pnl. tk'ness. 0 1 3 .029-.049" .050-.078" .079-.118" A +0, -.004 B +0, -.004 .752" .756" .768" .508" .508" .508" N43 APEM, 63 NECK ROAD, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE OFF
