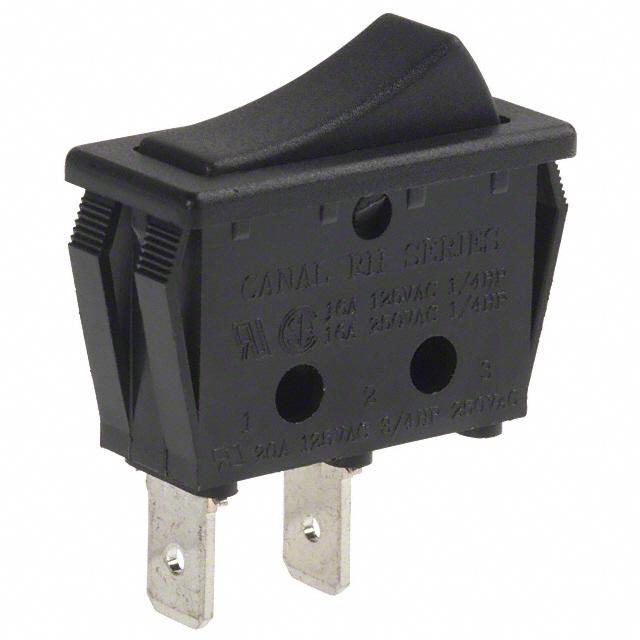

RH110C2NBB

New ! RH SERIES SNAP-IN ROCKER SWITCHES FEATURES Cost effective illuminated or non-illuminated models. N Single pole maintained action models. SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE Actuator and case color selections. Standard actuator marking options. SPECIFICATIONS Contact ratings: 16A 125VAC 1/4 HP (UL/CSA). 16A 250VAC 1/4 HP (UL/CSA). 20A 125VAC 3/4 HP 250VAC (UL) 16(4)A 250V ~ T85 1E4 10(2)A 250V ~ 5E4 (VDE, SEMCO, NEMCO, DEMCO, FIMCO, SEV). 20 milliohms max. 100 megohms min. at 500 V 1000 VAC for 1 minute 16(4)A 250VAC: 10,000 cycles 10(2)A 250VAC: 50,000 cycles -20°C to 85°C Initial contact resistance: Insulation resistance: Dielectric strength: Electrical life: Operating temperature range: MATERIALS Contacts: Terminals: Actuator: Case: Silver cadmium alloy Lamps: Neon or fluorescent. Silver plated copper Illumination available Nylon type 66 or PC (UL94V-2 min.) only with function 1 (ON OFF). Nylon type 66 (UL94V-2 min.) AGENCY RECOGNITION D s UL, CSA, VDE, SEMKO, NEMKO, DEMKO, FEMKO, & SEV. Models are supplied with agency markings. Quick connect terminals - curved actuator MODEL NO. CIRCUIT RH110C2NBB ON RH120C2NBB ON RH130C2NBB ON OFF ON OFF ON Above models have black actuator and black case. Solder lug terminals - curved actuator MODEL NO. CIRCUIT RH111C2NBB ON RH121C2NBB ON RH131C2NBB ON OFF ON OFF ON Above models have black actuator and black case. N40 APEM, 63 NECK ROAD, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com New ! RH SERIES SNAP-IN ROCKER SWITCHES Illuminated - quick connect terminals - curved actuator N CIRCUIT RH110C2LBR ON RH120C2LBR ON RH130C2LBR ON OFF ON OFF ON Above models have red actuator and black case. Additional ordering information: Commonly ordered models are shown above with complete model numbers and specifications. Below is an order format that enables you to 'build your own switch' and specify the correct switch model number by simply selecting from all available options shown and filling in the boxes. 'BUILD YOUR OWN SWITCH' ORDER FORMAT Fill in boxes with selections shown for complete model number. Allowable selections are shown below each respective box. Series Number of poles Electrical functions Terminals Marking/ lens color 1 R H 1 2 3 6 Single pole ON OFF ON ON ON OFF ON MOM OFF MOM 0 Quick-connect *1 Solder lug *Solder lug terminals not avaible with electrical function 3 Illuminated type L N *C *R Actuator type Illuminated non-illum. round lens square lens Case color Actuator color B G O R W Y A Gray B Black W White * Curved actuator only Black Green Orange Red White Yellow TERMINALS QUICK-CONNECT HI LO No marking ON OFF O I O O II Green lens Red lens Orange lens Example of completely specified model number: RH130C6GLBR PANEL CUT-OUTS SOLDER LUG pnl. tk'ness. 0 1 2 3 4 5 6 G R O C Curved F Flat S Ergonomic Notes: only flat actuator is available with full illumination-i.e.-no lens. Ergonomic actuator available only with functions 1 & 2 and no illumination. 1 .029-.049" .050-.078" .079-.118" A +0, -.004 B +.006, -.0 1.181" 1.189" 1.200" .433" .433" .433" APEM, 63 NECK ROAD, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com N41 SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE MODEL NO.
