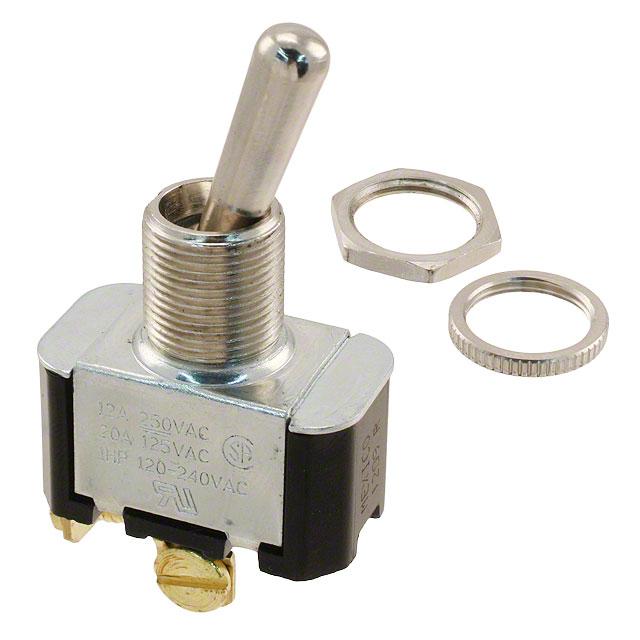

2FAA04-78

DWG NO. DO NOT SCALE DRAWING WORK TO FIGURE .465 .670 REV. 2FAA04-78 LET REVISIONS DATE .565 T1 .687 RATING 12A 20A 1 HP 1.134 T2 T3 .348 .072 WD X .038 DP KEYWAY .634 NOTES: 1. KEYWAY INDICATES DOWN POSITION 2. TOGGLE, THREADED STEM, RING NUT & HEX NUT ARE NICKEL PLATED 3. "O" RING SEAL IN BUSHING .062 HEX NUT (FURN. ASSEMBLED) .562 DIA KNURLED RING NUT (FURNISHED IN BULK) FINISH CARLINGSWITCH, INC. DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE PROPRIETARY NOTE: NOTICE TO ALL PERSONS RECEIVING THIS DRAWING. THIS DOCUMENT IS THE PROPERTY OF CARLINGSWITCH, INC. AND IS NOT TO BE DISCLOSED, REPRODUCED IN WHOLE OR IN PART OR USED FOR MANUFACTURING PURPOSES BY ANYONE WITHOUT THE CONSENT OF CARLINGSWITCH, INC. PLAINVILLE, CT TOOL NO. REV DR BY DATE UNSPECIFIED TOLERANCES FRAC. ±1/64 X.XXX ±.015 ANGLES ±1° PROJECTIONS DIMENSIONS IN [mm] 250VAC 125VAC 120-240VAC OPERATES: POSITIONS OF TOGGLE UP CENTER DOWN ON NONE OFF 15 - 32NS - 2 32 SCREW TERM'S UL & CSA KRAMARZ 5-6-10 CHK BY DATE APPD BY DATE F SERIES TOGGLE SWITCH TITLE SIZE A USED ON DWG NO. REV. 2FAA04-78 SCALE: NONE SHT 1 OF 1
