W6811 SINGLE CHANNEL
VOICECODEC
1. GENERAL DESCRIPTION
The W6811 is a general-purpose single channel PCM CODEC with pin-selectable u-Law or A-Law companding.
The device is compliant with the ITU G.712 specification. It operates off of separated analog (5V) and digital (3V)

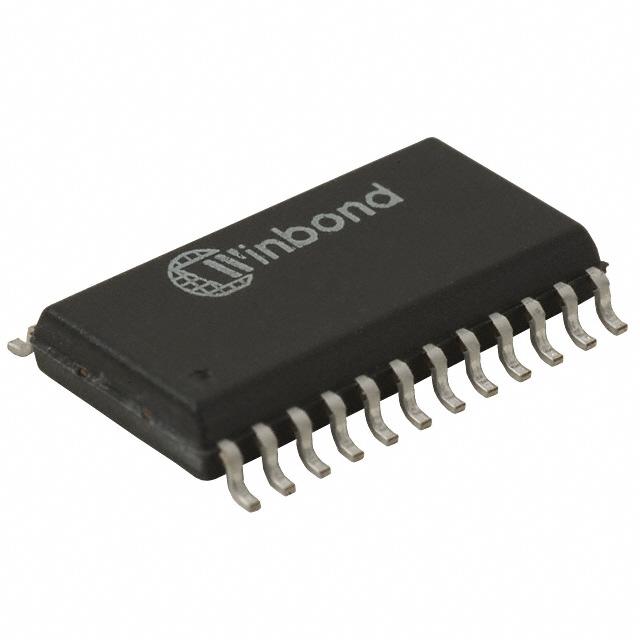

power supplies and is available in 24-pin SOG, and SSOP package options.
Functions performed include
digitization and reconstruction of voice signals, and band limiting and smoothing filters required for PCM systems.
The filters are compliant with ITU G.712 specification.
W6811 performance is specified over the industrial
temperature range of –40C to +85C.
The W6811 includes an on-chip precision voltage reference and an additional power amplifier, capable of driving
300 loads differentially up to a level of 6.3V peak-to-peak. The analog section is fully differential, reducing noise
and improving the power supply rejection ratio. The data transfer protocol supports both long-frame and shortframe synchronous communications for PCM applications, and IDL and GCI communications for ISDN
applications. W6811 accepts seven master clock rates between 256 kHz and 4.096 MHz, and an on-chip prescaler automatically determines the division ratio for the required internal clock.
Applications
2. FEATURES
Power supply:
Analog 4.5 – 5.5V
Digital 2.7 – 3.3V
Digital Telephone Systems
Central Office Equipment (Gateways, Switches,
Routers)
PBX Systems (Gateways, Switches)
Typical power dissipation of 25 mW, power-
PABX/SOHO Systems
down mode of 0.5 W
Local Loop card
Fully-differential analog circuit design
SOHO Routers
On-chip precision reference of 1.575 V for a 0
VoIP Terminals
Enterprise Phones
ISDN Terminals
Analog line cards
Digital Voice Recorders
dBm TLP at 600
Push-pull power amplifiers with external gain
adjustment with 300 load capability
Seven master clock rates of 256 kHz to 4.096
MHz
Pin-selectable -Law and A-Law companding
(compliant with ITU G.711)
CODEC A/D and D/A filtering compliant with
ITU G.712
Industrial temperature range (–40C to +85C)
Package: 24-pin SOG, and SSOP
Pb-Free / RoHS package options available
Revision A15
-1-
January 2011
W6811 SINGLE CHANNEL
VOICECODEC
3. BLOCK DIAGRAM
Re
Int
PC
cei
erf
M
ve
ace
Receive
PCM
Interface
BCLKR
FSR
PCMR
G.712 CODEC
G.711 /A - Law
Tra Int
ns PC erf
mitM ace
Transmit
PCM
Interface
BCLKT
FST
PCMT
PAO+
PAOPAI
RO AO
AI+
AI-
/A-Law
V REF
512 kHz
256 kHz
Voltage reference
Revision A15
V AG
8 kHz
-2-
PUI
VDDD
VSSD
Power Conditioning
VDDA
256 kHz,
512 kHz,
1536 kHz,
1544 kHz,
2048 kHz,
2560 kHz
& 4096 kHz
Pre -Saler
scaler
VSSA
MCLK
January 2011
W6811 SINGLE CHANNEL
VOICECODEC
4. TABLE OF CONTENTS
1. GENERAL DESCRIPTION................................................................................................................................... 1
2. FEATURES .......................................................................................................................................................... 1
3. BLOCK DIAGRAM ............................................................................................................................................... 2
4. TABLE OF CONTENTS ....................................................................................................................................... 3
5. PIN CONFIGURATION ........................................................................................................................................ 4
6. PIN DESCRIPTION .............................................................................................................................................. 5
7. FUNCTIONAL DESCRIPTION ............................................................................................................................. 7
7.1. Transmit Path ............................................................................................................................................... 7
7.2. Receive Path ................................................................................................................................................ 8
7.3. Power Management ..................................................................................................................................... 9
7.3.1. Analog Supply....................................................................................................................................... 9
7.3.2. Digital Supply ........................................................................................................................................ 9
7.3.3. Analog Ground Reference Bypass ....................................................................................................... 9
7.3.4. Analog Ground Reference Voltage Output ........................................................................................... 9
7.4. PCM Interface .............................................................................................................................................. 9
7.4.1. Long Frame Sync ............................................................................................................................... 10
7.4.2. Short Frame Sync ............................................................................................................................... 10
7.4.3. General Circuit Interface (GCI) ........................................................................................................... 10
7.4.4. Interchip Digital Link (IDL) .................................................................................................................. 11
7.4.5. System Timing .................................................................................................................................... 11
8. TIMING DIAGRAMS .......................................................................................................................................... 12
9. ABSOLUTE MAXIMUM RATINGS ..................................................................................................................... 19
9.1. Absolute Maximum Ratings ........................................................................................................................ 19
9.2. Operating Conditions .................................................................................................................................. 19
10. ELECTRICAL CHARACTERISTICS ................................................................................................................ 20
10.1. General Parameters ................................................................................................................................. 20
10.2. Analog Signal Level and Gain Parameters ............................................................................................... 21
10.3. Analog Distortion and Noise Parameters .................................................................................................. 22
10.4. Analog Input and Output Amplifier Parameters ........................................................................................ 23
10.5. Digital I/O.................................................................................................................................................. 25
10.5.1. -Law Encode Decode Chatacteristics ............................................................................................. 25
10.5.2. A-Law Encode Decode Characteristics ............................................................................................ 26
10.5.3. PCM Codes for Zero and Full Scale ................................................................................................. 27
10.5.4. PCM Codes for 0dBm0 Output ......................................................................................................... 27
11. TYPICAL APPLICATION CIRCUIT .................................................................................................................. 28
12. PACKAGE SPECIFICATION ........................................................................................................................... 30
12.1. 24L SOP-300mil ....................................................................................................................................... 30
12.2. 24L SSOP-209 mil .................................................................................................................................... 31
13. Ordering Information.................................................................................................................................... 32
14. VERSION HISTORY ........................................................................................................................................ 33
Revision A15
-3-
January 2011
W6811 SINGLE CHANNEL
VOICECODEC
5. PIN CONFIGURATION
1
VREF
VAG
24
2
RO-
AI+
23
3
PAI
AI-
22
4
PAO-
AO
21
5
PAO+
u/A Law
20
6
VDDA
VSSA
19
7
NC
NC
18
8
VDDD
VSSD
17
9
FSR
FST
16
10
PCMR
PCMT
15
11
BCLKR
BCLKT
14
MCLK
13
12
Revision A15
W6811
Single Channel
Voice Codec
PUI
-4-
January 2011
W6811 SINGLE CHANNEL
VOICECODEC
6. PIN DESCRIPTION
Pin No.
SSOP
SOP
VDD
Functionality
VREF
1
A
This pin is used to bypass the on-chip 2.5V voltage reference. It needs to be decoupled to VSSA
through a 0.1 F ceramic decoupling capacitor. No external loads should be tied to this pin.
RO-
2
A
Inverting output of the receive smoothing filter. This pin can typically drive a 2 k load to 1.575
volt peak referenced to the analog ground level.
PAI
3
A
This pin is the inverting input to the power amplifier. Its DC level is at the V AG voltage.
PAO-
4
A
Inverting power amplifier output. This pin can drive a 300 load to 1.575 volt peak referenced to
the VAG voltage level.
PAO+
5
A
Non-inverting power amplifier output. This pin can drive a 300 load to 1.575 Volt peak
referenced to the VAG voltage level.
VDDA
6
A
Analog power supply. This pin should be decoupled to V SSA with a 0.1F ceramic capacitor.
NC
7
VDDD
8
D
Digital power supply. This pin should be decoupled to V SSD with a 0.1F ceramic capacitor. For
correct operation, VDDD value should always be lower than VDDA.
FSR
9
D
8 kHz Frame Sync input for the PCM receive section. This pin also selects channel 0 or channel
1 in the GCI and IDL modes. It can also be connected to the FST pin when transmit and receive
are synchronous operations.
PCMR
10
D
PCM input data receive pin. The data needs to be synchronous with the FSR and BCLKR pins.
BCLKR
11
D
PCM receive bit clock input pin. This pin also selects the interface mode. The GCI mode is
selected when this pin is tied to VSSD. The IDL mode is selected when this pin is tied to V DDD.
This pin can also be tied to the BCLKT when transmit and receive are synchronous operations.
PUI
12
D
Power up input signal. When this pin is tied to V DDD, the part is powered up. When tied to VSSD,
the part is powered down.
Pin
Name
*
Not Connected
MCLK
13
D
System master clock input. Possible input frequencies are 256 kHz, 512 kHz, 1536 kHz, 1544
kHz, 2048 kHz, 2560 kHz & 4096 kHz. For a better performance, it is recommended to have the
MCLK signal synchronous and aligned to the FST signal. This is a requirement in the case of
256 and 512 kHz frequencies.
BCLKT
14
D
PCM transmit bit clock input pin.
PCMT
15
D
PCM output data transmit pin. The output data is synchronous with the FST and BCLKT pins.
FST
16
D
8 kHz transmit frame sync input. This pin synchronizes the transmit data bytes.
Revision A15
-5-
January 2011
W6811 SINGLE CHANNEL
VOICECODEC
Pin No.
SSOP
SOP
VDD
VSSD
17
D
NC
18
VSSA
19
A
This is the analog supply ground. This pin should be connected to 0V.
/A-Law
20
D
Compander mode select pin. -Law companding is selected when this pin is tied to V DDD. A-Law
companding is selected when this pin is tied to VSSD.
AO
21
A
Analog output of the first gain stage in the transmit path.
AI-
22
A
Inverting input of the first gain stage in the transmit path.
AI+
23
A
Non-inverting input of the first gain stage in the transmit path.
VAG
24
A
Mid-Supply analog ground pin, which supplies a 2.5 Volt reference voltage for all-analog signal
processing. This pin should be decoupled to V SSA with a 0.01F capacitor. This pin becomes
high impedance when the chip is powered down.
Pin
Name
*
Functionality
This is the digital supply ground. This pin should be connected to 0V.
Not Connected
* These columns represent whether the pin Is driven by Analog (‘A’) or Digital (‘D’) power supply.
Revision A15
-6-
January 2011
W6811 SINGLE CHANNEL
VOICECODEC
7. FUNCTIONAL DESCRIPTION
W6811 is a single-rail, single channel PCM CODEC for voiceband applications. The CODEC complies with the
specifications of the ITU-T G.712 recommendation. The CODEC also includes a complete -Law and A-Law
compander. The -Law and A-Law companders are designed to comply with the specifications of the ITU-T
G.711 recommendation.
The block diagram in section 3 shows the main components of the W6811. The chip consists of a PCM interface,
which can process long and short frame sync formats, as well as GCI and IDL formats. The pre-scaler of the chip
provides the internal clock signals and synchronizes the CODEC sample rate with the external frame sync
frequency. The power conditioning block provides the internal power supply for the digital and the analog section,
while the voltage reference block provides a precision analog ground voltage for the analog signal processing.
The main CODEC block diagram is shown in section 3.
VA
VAG
G
+ - +
Receive Path
PAO+
PAO PAI
8
/A-Cont
Control
or
l
D/A
Converter
w
f= 3400Hz
Hz
Smooth
Smoothing
ingFilter
1
+
-
C
RO -
Smooth
Smoothing
ingFilter
2
Transmit Path
AO
8
A/D
Converter
/A/A- Control
Cont
r
ffCC == 200Hz
200
High
Hz Pass
High
Filt
Filter
Pas
se
fC== 3400Hz
3400
Ant
Hz
--Aliasing
Ant
Aliasi
i Filter
ng
++
-
AI+
AI -
Ant-Aliasi
Aliasing
Filter
Figure 7.1 The W6811 Signal Path
7.1. TRANSMIT PATH
The A-to-D path of the CODEC contains an analog input amplifier with externally configurable gain setting (see
application examples in section 11). The device has an input operational amplifier whose output is the input to the
encoder section. If the input amplifier is not required for operation it can be powered down and bypassed. In that
case a single ended input signal can be applied to the AO pin or the AI- pin. The AO pin becomes high input
impedance when the input amplifier is powered down. The input amplifier can be powered down by connecting
Revision A15
-7-
January 2011
W6811 SINGLE CHANNEL
VOICECODEC
the AI+ pin to VDDA or VSSA. The AO pin is selected as an input when AI+ is tied to V DDA and the AI- pin is selected
as an input when AI+ is tied to VSSA (see Table 7.1).
AI+
Input Amplifier
Input
VDDA
Powered Down
AO
1.2 to VDDA-1.2
Powered Up
AI+, AI-
VSSA
Powered Down
AI-
Table 7.1 Input Amplifier Modes of operation
When the input amplifier is powered down, the input signal at AO or AI- needs to be referenced to the analog
ground voltage VAG. The output of the input amplifier is fed through a 3.4 kHz switched capacitor low pass filter to
prevent aliasing of input signals above 4 kHz, due to the sampling at 8 kHz. The output of the 3.4 kHz low pass
filter is filtered by a high pass filter with a 200 Hz cut-off frequency. The filters are designed according to the
recommendations in the G.712 ITU-T specification. From the output of the high pass filter the signal is digitized.
The signal is converted into a compressed 8-bit digital representation with either -Law or A-Law format. The Law or A-Law format is pin-selectable through the /A-Law pin. The compression format can be selected
according to Table 7.2.
/A-Law Pin
Format
VSSA
A-Law
VDDA
-Law
Table 7.2. Pin-selectable Compression Format
The digital 8-bit -Law or A-Law samples are fed to the PCM interface for serial transmission at the data rate
supplied by the external bit clock BCLKT.
7.2. RECEIVE PATH
The 8-bit digital input samples for the D-to-A path are serially shifted in by the PCM interface and converted to
parallel data bits. During every cycle of the frame sync FSR, the parallel data bits are fed through the pinselectable -Law or A-Law expander and converted to analog samples. The mode of expansion is selected by the
/A-Law pin as shown in Table 7.2. The analog samples are filtered by a low-pass smoothing filter with a 3.4 kHz
cut-off frequency, according to the ITU-T G.712 specification. A sin(x)/x compensation is integrated with the low
pass smoothing filter. The output of this filter is buffered to provide the receive output signal RO-. The RO- output
can be externally connected to the PAI pin to provide a differential output with high driving capability at the PAO+
and PAO- pins. By using external resistors (see section 11 for examples), various gain settings of this output
amplifier can be achieved. If the transmit power amplifier is not in use, it can be powered down by connecting PAI
to VDDA.
Revision A15
-8-
January 2011
W6811 SINGLE CHANNEL
VOICECODEC
7.3. POWER MANAGEMENT
7.3.1. Analog Supply
The power supply for the analog part of the W6811 needs to be 5V +/- 10%. This supply voltage is connected to
the VDDA pin. The VDDA pin needs to be decoupled to ground through a 0.1 F ceramic capacitor.
7.3.2. Digital Supply
The power supply for the digital part of the W6811 needs to be 3V +/- 10%. This supply voltage is connected to
the VDDD pin. The VDDD pin needs to be decoupled to ground through a 0.1 F ceramic capacitor.
7.3.3. Analog Ground Reference Bypass
The system has an internal precision voltage reference which generates the 2.5V mid-supply analog ground
voltage. This voltage needs to be decoupled to VSSA at the VREF pin through a 0.1 F ceramic capacitor.
7.3.4. Analog Ground Reference Voltage Output
The analog ground reference voltage is available for external reference at the V AG pin. This voltage needs to be
decoupled to VSSA through a 0.01 F ceramic capacitor. The analog ground reference voltage is generated from
the voltage on the VREF pin and is also used for the internal signal processing.
7.4. PCM INTERFACE
The PCM interface is controlled by pins BCLKR, FSR, BCLKT & FST. The input data is received through the
PCMR pin and the output data is transmitted through the PCMT pin. The modes of operation of the interface are
shown in Table 7.3.
BCLKR
FSR
Interface Mode
64 kHz to 4.096 MHz
8 kHz
Long or Short Frame Sync
VSSD
VSSD
ISDN GCI with active channel B1
VSSD
VDDD
ISDN GCI with active channel B2
VDDD
VSSD
ISDN IDL with active channel B1
VDDD
VDDD
ISDN IDL with active channel B2
Table 7.3 PCM Interface mode selections
Revision A15
-9-
January 2011
W6811 SINGLE CHANNEL
VOICECODEC
7.4.1. Long Frame Sync
The Long Frame Sync or Short Frame Sync interface mode can be selected by connecting the BCLKR or BCLKT
pin to a 64 kHz to 4.096 MHz clock and connecting the FSR or FST pin to the 8 kHz frame sync. The device
synchronizes the data word for the PCM interface and the CODEC sample rate on the positive edge of the Frame
Sync signal. It recognizes a Long Frame Sync when the FST pin is held HIGH for two consecutive falling edges of
the bit-clock at the BCLKT pin. The length of the Frame Sync pulse can vary from frame to frame, as long as the
positive frame sync edge occurs every 125 sec. During data transmission in the Long Frame Sync mode, the
transmit data pin PCMT will become low impedance when the Frame Sync signal FST is HIGH or when the 8 bit
data word is being transmitted. The transmit data pin PCMT will become high impedance when the Frame Sync
signal FST becomes LOW while the data is transmitted or when half of the LSB is transmitted. The internal
decision logic will determine whether the next frame sync is a long or a short frame sync, based on the previous
frame sync pulse. To avoid bus collisions, the PCMT pin will be HIGH impedance for two frame sync cycles after
every power down state. More detailed timing information can be found in the interface timing section.
7.4.2. Short Frame Sync
The W6811 operates in the Short Frame Sync Mode when the Frame Sync signal at pin FST is HIGH for one and
only one falling edge of the bit-clock at the BCLKT pin. On the following rising edge of the bit-clock, the W6811
starts clocking out the data on the PCMT pin, which will also change from high to low impedance state. The data
transmit pin PCMT will go back to the high impedance state halfway through the LSB. The Short Frame Sync
operation of the W6811 is based on an 8-bit data word. When receiving data on the PCMR pin, the data is
clocked in on the first falling edge after the falling edge that coincides with the Frame Sync signal. The internal
decision logic will determine whether the next frame sync is a long or a short frame sync, based on the previous
frame sync pulse. To avoid bus collisions, the PCMT pin will be high impedance for two frame sync cycles after
every power down state. More detailed timing information can be found in the interface timing section.
7.4.3. General Circuit Interface (GCI)
The GCI interface mode is selected when the BCLKR pin is connected to V SSD for two or more frame sync cycles.
It can be used as a 2B+D timing interface in an ISDN application. The GCI interface consists of 4 pins : FSC
(FST), DCL (BCLKT), Dout (PCMT) & Din (PCMR). The FSR pin selects channel B1 or B2 for transmit and
receive. Data transitions occur on the positive edges of the data clock DCL. The Frame Sync positive edge is
aligned with the positive edge of the data clock DCLK. The data rate is running half the speed of the bit-clock. The
channels B1 and B2 are transmitted consecutively. Therefore, channel B1 is transmitted on the first 16 clock
cycles of DCL and B2 is transmitted on the second 16 clock cycles of DCL. For more timing information, see the
timing section.
Revision A15
- 10 -
January 2011
W6811 SINGLE CHANNEL
VOICECODEC
7.4.4. Interchip Digital Link (IDL)
The IDL interface mode is selected when the BCLKR pin is connected to VDDD for two or more frame sync cycles.
It can be used as a 2B+D timing interface in an ISDN application. The IDL interface consists of 4 pins : IDL SYNC
(FST), IDL CLK (BCLKT), IDL TX (PCMT) & IDL RX (PCMR). The FSR pin selects channel B1 or B2 for transmit
and receive. The data for channel B1 is transmitted on the first positive edge of the IDL CLK after the IDL SYNC
pulse. The IDL SYNC pulse is one IDL CLK cycle long. The data for channel B2 is transmitted on the eleventh
positive edge of the IDL CLK after the IDL SYNC pulse. The data for channel B1 is received on the first negative
edge of the IDL CLK after the IDL SYNC pulse. The data for channel B2 is received on the eleventh negative
edge of the IDL CLK after the IDL SYNC pulse. The transmit signal pin IDL TX becomes high impedance when
not used for data transmission and also in the time slot of the unused channels. For more timing information, see
the timing section.
7.4.5. System Timing
The system can work at 256 kHz, 512 kHz, 1536 kHz, 1544 kHz, 2048 kHz, 2560 kHz & 4096 kHz master clock
rates. The system clock is supplied through the master clock input MCLK and can be derived from the bit-clock if
desired. An internal pre-scaler is used to generate a fixed 256 kHz and an 8 kHz sample clock for the internal
CODEC. The pre-scaler measures the master clock frequency versus the Frame Sync frequency and sets the
division ratio accordingly. If the Frame Sync is LOW for the entire frame sync period while the MCLK and BCLK
pin clock signals are still present, the W6811 will enter the low power standby mode. Another way to power down
is to set the PUI pin to LOW. When the system needs to be powered up again, the PUI pin needs to be set to
HIGH and the Frame Sync pulse needs to be present. It will take two Frame Sync cycles before the pin PCMT will
become low impedance.
Revision A15
- 11 -
January 2011
W6811 SINGLE CHANNEL
VOICECODEC
8. TIMING DIAGRAMS
T FTRH M
T F T R SM
TM CK L
TM CK H
T R ISE
T FA L L
M CLK
TM CK
T FS
T F SL
F ST
T FTRH
BCLK T
0
T FTRS
1
T FTFH
2
3
T FD TD
TBCK H
4
5
6
7
T B DTD
PC M T
D7
D6
8
T H ID
D5
D4
D3
D2
TBCK L
0
1
TBCK
T H ID
D1 D0
M SB
L SB
T FS
T F SL
F SR
T FRRH
BCLK R
0
T FRRS
1
T FRFH
2
3
TBCK H
4
5
6
7
8
TBCK L
0
1
TBCK
PC M R
D7
M SB
TDRS
D6
D5
D4
D3
D2
D1
D0
L SB
TDRH
Figure 8.1 Long Frame Sync PCM Timing
Revision A15
- 12 -
January 2011
W6811 SINGLE CHANNEL
VOICECODEC
SYMBOL
DESCRIPTION
1/TFS
FST, FSR Frequency
TFSL
FST / FSR Minimum LOW Width
1
MIN
TYP
MAX
UNIT
---
8
---
kHz
TBCK
sec
1/TBCK
BCLKT, BCLKR Frequency
64
---
4096
kHz
TBCKH
BCLKT, BCLKR HIGH Pulse Width
50
---
---
ns
TBCKL
BCLKT, BCLKR LOW Pulse Width
50
---
---
ns
TFTRH
BCLKT 0 Falling Edge to FST Rising Edge Hold Time
20
---
---
ns
TFTRS
FST Rising Edge to BCLKT 1 Falling edge Setup Time
80
---
---
ns
TFTFH
BCLKT 2 Falling Edge to FST Falling Edge Hold Time
50
---
---
ns
TFDTD
FST Rising Edge to Valid PCMT Delay Time
---
---
60
ns
TBDTD
BCLKT Rising Edge to Valid PCMT Delay Time
---
---
60
ns
10
---
60
ns
THID
Delay Time from the Later of FST Falling Edge, or
BCLKT 8 Falling Edge to PCMT Output High Impedance
TFRRH
BCLKR 0 Falling Edge to FSR Rising Edge Hold Time
20
---
---
ns
TFRRS
FSR Rising Edge to BCLKR 1 Falling edge Setup Time
80
---
---
ns
TFRFH
BCLKR 2 Falling Edge to FSR Falling Edge Hold Time
50
---
---
ns
TDRS
Valid PCMR to BCLKR Falling Edge Setup Time
0
---
---
ns
TDRH
PCMR Hold Time from BCLKR Falling Edge
50
---
---
ns
Table 8.1 Long Frame Sync PCM Timing Parameters
1
TFSL must be at least TBCK
Revision A15
- 13 -
January 2011
W6811 SINGLE CHANNEL
VOICECODEC
T FTRH M
T F T R SM
TM CK L
TM CK H
T R ISE
T FA L L
M CLK
TM CK
T FS
T FTFH
T FTFS
F ST
T FTRS
T FTRH
BCLK T
-1
0
TBCK H
1
2
3
T B DTD
PC M T
D7
4
5
6
7
0
8
T B DTD
D6
D5
D3
D2
1
TBCK
T H ID
D4
TBCK L
D1 D0
M SB
L SB
T FS
T FRFH
T FRFS
F SR
T FRRS
T FRRH
BCLK R
-1
0
TBCK H
1
2
3
4
5
6
7
8
TBCK L
0
1
TBCK
PC M R
D7
M SB
TDRS
D6
D5
D4
D3
D2
D1
D0
L SB
TDRH
Figure 8.2 Short Frame Sync PCM Timing
Revision A15
- 14 -
January 2011
W6811 SINGLE CHANNEL
VOICECODEC
SYMBOL
DESCRIPTION
MIN
TYP
MAX
UNIT
1/TFS
FST, FSR Frequency
---
8
---
kHz
1/TBCK
BCLKT, BCLKR Frequency
64
---
4096
kHz
TBCKH
BCLKT, BCLKR HIGH Pulse Width
50
---
---
ns
TBCKL
BCLKT, BCLKR LOW Pulse Width
50
---
---
ns
TFTRH
BCLKT –1 Falling Edge to FST Rising Edge Hold Time
20
---
---
ns
TFTRS
FST Rising Edge to BCLKT 0 Falling edge Setup Time
80
---
---
ns
TFTFH
BCLKT 0 Falling Edge to FST Falling Edge Hold Time
50
---
---
ns
TFTFS
FST Falling Edge to BCLKT 1 Falling Edge Setup Time
50
---
---
ns
TBDTD
BCLKT Rising Edge to Valid PCMT Delay Time
10
---
60
ns
10
---
60
ns
THID
Delay Time from BCLKT 8 Falling Edge to PCMT Output High
Impedance
TFRRH
BCLKR –1 Falling Edge to FSR Rising Edge Hold Time
20
---
---
ns
TFRRS
FSR Rising Edge to BCLKR 0 Falling edge Setup Time
80
---
---
ns
TFRFH
BCLKR 0 Falling Edge to FSR Falling Edge Hold Time
50
---
---
ns
TFRFS
FSR Falling Edge to BCLKR 1 Falling Edge Setup Time
50
---
---
ns
TDRS
Valid PCMR to BCLKR Falling Edge Setup Time
0
---
---
ns
TDRH
PCMR Hold Time from BCLKR Falling Edge
50
---
---
ns
Table 8.2 Short Frame Sync PCM Timing Parameters
Revision A15
- 15 -
January 2011
W6811 SINGLE CHANNEL
VOICECODEC
T FS
F ST
T F SF H
T F SR S
T F SR H
BCLK T
-1
0
TBCK H
1
2
3
4
T B DTD
PC M T
D7
D6
5
6
7
8
D5 D4
D3
D2
D6
11
12
14
D7
D6
D3
D2
D1
16
17
18
TBCK
T H ID
TB DTD
D5
D4 D3 D2
D1 D0
L SB
TDRS
M SB
15
M SB
TDRH
D5 D4
13
T B DTD
D1 D0
L SB
TDRS
D7
10
T H ID
T B DTD
M SB
PC M R
9
TBCK L
D0
D7
L SB
M SB
D6
TDRH
D5
BCH = 0
B 1 C hannel
D4 D3 D2
D1
D0
L SB
BCH = 1
B 2 C hannel
Figure 8.3 IDL PCM Timing
SYMBOL
DESCRIPTION
MIN
TYP
MAX
UNIT
---
8
---
kHz
1/TFS
FST Frequency
1/TBCK
BCLKT Frequency
256
---
4096
kHz
TBCKH
BCLKT HIGH Pulse Width
50
---
---
ns
TBCKL
BCLKT LOW Pulse Width
50
---
---
ns
TFSRH
BCLKT –1 Falling Edge to FST Rising Edge Hold Time
20
---
---
ns
TFSRS
FST Rising Edge to BCLKT 0 Falling edge Setup Time
60
---
---
ns
TFSFH
BCLKT 0 Falling Edge to FST Falling Edge Hold Time
20
---
---
ns
TBDTD
BCLKT Rising Edge to Valid PCMT Delay Time
10
---
60
ns
10
---
50
ns
Delay Time from the BCLKT 8 Falling Edge (B1 channel)
THID
or BCLKT 18 Falling Edge (B2 Channel) to PCMT Output
High Impedance
TDRS
Valid PCMR to BCLKT Falling Edge Setup Time
20
---
---
ns
TDRH
PCMR Hold Time from BCLKT Falling Edge
75
---
---
ns
Table 8.3 IDL PCM Timing Parameters
Revision A15
- 16 -
January 2011
W6811 SINGLE CHANNEL
VOICECODEC
T FS
F ST
T F SF H
T F SR H
TBCK H
T F SR S
TBCK L
BCLK T
0
1
2
3
4
5
6
7
8
9
T FD TD
PC M T
D7
D6
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34
T B DTD
D5 D4
D3
D2
T H ID
D1 D0
TDRS
D7
D7
D6
T B DTD
D5
D4 D3 D2
D1 D0
L SB
D6
TDRS
TDRH
D5 D4
D3
D2
M SB
D1
T H ID
TBCK
L SB M SB
M SB
PC M R
T B DTD
D0 D7
D6
TDRH
D5
D4 D3 D2
D1 D0
L SB M SB
BCH = 0
B 1 C hannel
L SB
BCH = 1
B 2 C hannel
Figure 8.4 GCI PCM Timing
SYMBOL
DESCRIPTION
MIN
TYP
MAX
UNIT
---
8
---
kHz
1/TFST
FST Frequency
1/TBCK
BCLKT Frequency
512
---
6176
kHz
TBCKH
BCLKT HIGH Pulse Width
50
---
---
ns
TBCKL
BCLKT LOW Pulse Width
50
---
---
ns
TFSRH
BCLKT 0 Falling Edge to FST Rising Edge Hold Time
20
---
---
ns
TFSRS
FST Rising Edge to BCLKT 1 Falling edge Setup Time
60
---
---
ns
TFSFH
BCLKT 1 Falling Edge to FST Falling Edge Hold Time
20
---
---
ns
TFDTD
FST Rising Edge to Valid PCMT Delay Time
---
---
60
ns
TBDTD
BCLKT Rising Edge to Valid PCMT Delay Time
---
---
60
ns
10
---
50
ns
Delay Time from the BCLKT 16 Falling Edge (B1 channel) or
THID
BCLKT 32 Falling Edge (B2 Channel) to PCMT Output High
Impedance
TDRS
Valid PCMR to BCLKT Rising Edge Setup Time
20
---
---
ns
TDRH
PCMR Hold Time from BCLKT Rising Edge
---
---
60
ns
Table 8.4 GCI PCM Timing Parameters
Revision A15
- 17 -
January 2011
W6811 SINGLE CHANNEL
VOICECODEC
SYMBOL
DESCRIPTION
MIN
TYP
MAX
UNIT
---
kHz
256
512
1536
1/TMCK
Master Clock Frequency
---
1544
2048
2560
4096
TMCKH / TMCK
TMCKH
TMCKL
MCLK Duty Cycle for 256 kHz Operation
45%
Minimum Pulse Width HIGH for MCLK(512 kHz or
Higher)
Minimum Pulse Width LOW for MCLK (512 kHz or
Higher)
55%
50
---
---
ns
50
---
---
ns
TFTRHM
MCLK falling Edge to FST Rising Edge Hold Time
50
---
---
ns
TFTRSM
FST Rising Edge to MCLK Falling edge Setup Time
50
---
---
ns
TRISE
Rise Time for All Digital Signals
---
---
50
ns
TFALL
Fall Time for All Digital Signals
---
---
50
ns
Table 8.5 General PCM Timing Parameters
Revision A15
- 18 -
January 2011
W6811 SINGLE CHANNEL
VOICECODEC
9. ABSOLUTE MAXIMUM RATINGS
9.1. ABSOLUTE MAXIMUM RATINGS
Condition
Value
0
Junction temperature
150 C
0
Storage temperature range
Voltage Applied to any pin
0
-65 C to +150 C
Analog
(VSSA - 0.3V) to (VDDA + 0.3V)
Digital
(VSSD - 0.3V) to (VDDD + 0.3V)
Voltage applied to any pin
Analog
(VSSA – 1.0V) to (VDDA + 1.0V)
(Input current limited to +/-20 mA)
Digital
(VSSD – 1.0V) to (VDDD + 1.0V)
VDDA - VSSA ; VDDD - VSSD
-0.5V to +6V
2
< 0.3V
VDDD – VDDA
1. Stresses above those listed may cause permanent damage to the device. Exposure to the absolute
maximum ratings may affect device reliability. Functional operation is not implied at these conditions.
2. At any time, the digital power supply should not be higher the 0.3V from the analog power supply.
9.2. OPERATING CONDITIONS
Condition
Value
0
0
Industrial operating temperature
-40 C to +85 C
Analog supply voltage (VDDA)
+4.5V to +5.5V
Digital supply voltage (VDDD)
+2.7V to +3.3V
Ground voltage (VSSA, VSSD)
0V
Note: Exposure to conditions beyond those listed under Absolute Maximum Ratings may adversely affect the life
and reliability of the device.
Revision A15
- 19 -
January 2011
W6811 SINGLE CHANNEL
VOICECODEC
10. ELECTRICAL CHARACTERISTICS
10.1. GENERAL PARAMETERS
Symbol
Parameters
Conditions
VIL
Input LOW Voltage
VIH
Input HIGH Voltage
VOL
PCMT Output LOW Voltage
IOL = 1.6 mA
VOH
PCMT Output HIGH Voltage
IOL = -1.6 mA
IDDA
(2)
Typ
(1)
Max
(2)
0.5
2.2
VDDA Current (Operating) -ADC+DAC
IDDD
ISBA
Min
VCCA Current (Standby)
ISBD
Units
V
V
0.4
VDDD –
V
V
0.5
PUI = 1
5.5
8
mA
FSX running MCLK running
25
1000
A
PUI = 1
200
500
nA
FSX = 0 MCLK running
0.2
100
A
IPDA
VCCA Current (Power Down)
PUI = 0
200
500
nA
IPDD
VCCD Current (Power Down)
PUI = 0
200
500
nA
IIL
Input Leakage Current
VSSD
工商网监
湘ICP备2023018690号
