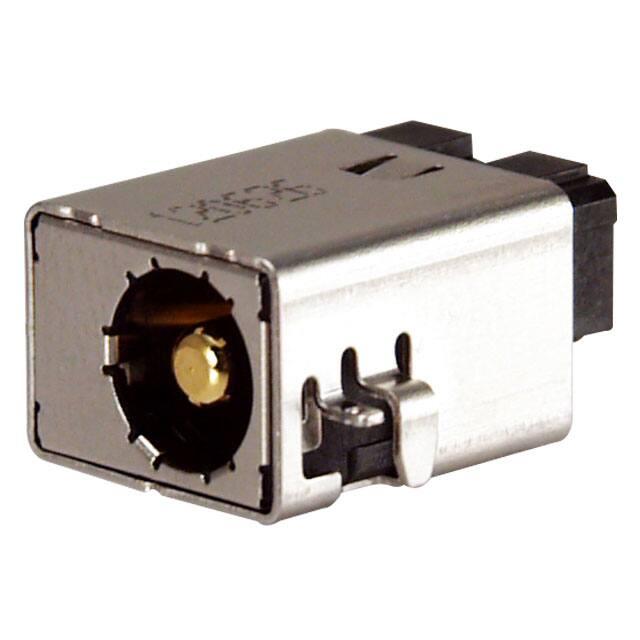

KLDHCX-MM-0202-ATR

2D Drawing IGES STEP 3D PDF Solder Profile CofC RoHS Compliant CofC REACH Compliant UL Plastic File Certificate of Origin Check Stock Request a Sample Send Us An Email Generated Part Number KLDHCX-MM-0202-BTR Part Number Builder LR78160 DC POWER CONNECTORS: KLDHCX-MM Series High Current Mid Mount DC Power Jack Product Features 2.0mm and 2.5mm Built-In DC On/Off Switch High Current, Rated 5A Good For Low Profile Applications Shielded CSA/NRTL Certified File No. LR78160 Performance Specifications Materials and Finish Body: High Temperature Thermoplastic, UL 94V-0, Color Black Contact #1: Brass, Gold Flash Contact #2: Phosphor Bronze, Gold Flash Contact #3: Brass, Gold Flash KLDHCX-MM-0202 B TR Series Diameter Packaging Series KLDHCX-MM-0202 - High Current Mid Mount DC Power Jack Diameter A - 2.0mm Center Pin Diameter B - 2.5mm Center Pin Diameter Packaging TR - Tape and Reel Contact Kycon For Other Options KLDHCX-MM Series Dimensions in mm Electrical Characteristics Rated Voltage: 24V RMS Rated Current: 5A Contact Resistance: Between Terminals: 30 milliohms Max. Plug to Contacts: 50 milliohms Max. Insulation Resistance: 100 Megohms Min. at 500V DC Dielectric Withstanding Voltage: 500V for 1 Minute Mechanical Characteristics Durability: 5000 Cycles Insertion Force: 0.3kg - 3.0kg Extraction Force: 0.3kg -3.0kg Operating Temperature: -25°C to +70°C Phone: +1.408.494.0330 l Fax: +1.408.494.0325 l WWW.KYCON.COM l 0118
