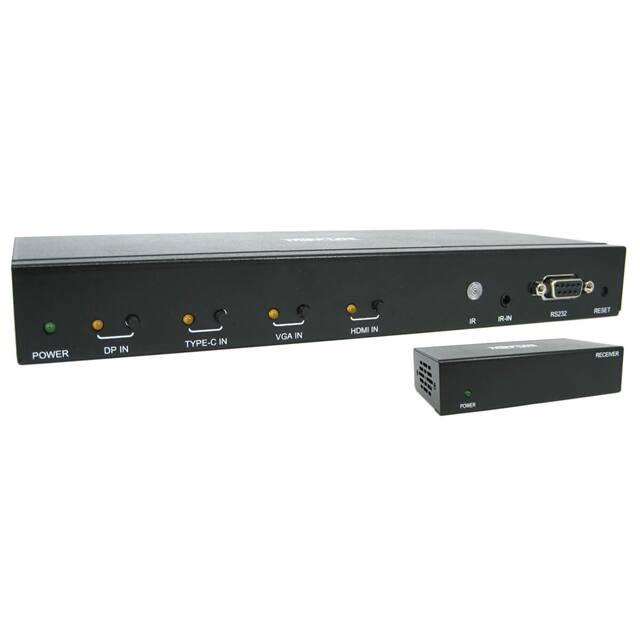

B320-4X1-MHE-K

1000 Eaton Boulevard Cleveland, OH 44122 United States 4-Port Presentation Switch Kit, 4K 60 Hz (4:4:4) HDMI, DP, USB-C and VGA to HDMI over Cat6 Extender, 125 ft., TAA MODEL NUMBER: B320-4X1-MHE-K Highlights ● HDMI, DisplayPort and USB-C ports support UHD 4K resolutions @ 60 Hz (4:4:4) over Cat6 ● Push buttons, IR remote or RS232 commands allow quick switching between sources ● USB-C PD 3.0 port charges source device to avoid battery drain and untimely shutdowns ● Supports High Dynamic Range (HDR) for richer contrast and expanded color accuracy ● Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases Applications ● Switch between your laptop, media server, cable box, Blu-ray player, video game console, Roku or other audio/video sources in your home theater Switches between 4 multi-format (HDMI/DP/VGA/USB-C) audio/video sources all transmitting 125 ft. over Cat6 cabling to one HDMI monitor. ● Connect multiple desktop computers and laptops to one monitor to save desk space Features ● Create multiple digital signage messages to appear at various times on a 4K HDMI display 4-Port Multi-Format Presentation Switch Connects 4 Video Sources to One HDMI DisplayThis presentation switch connects four separate source devices to your 4K television, projector or monitor's HDMI input and switches between them. It then transmits the audio/video signals through Cat6 cable to the included receiver located up to 125 feet (38.1 meters) away. HDMI, DisplayPort, USB-C and VGA + Audio inputs connect Windows laptops, cable boxes, media servers, Blu-ray players, game consoles and other sources. Switch from one source to another using the manual push buttons, RS-232 commands or the included remote control. Suitable for a Wide Range of Audio/Video Applications for Work or PlayThis kit is recommended anywhere a variety of video signals is transmitted to a hi-def display. It is suitable for home theaters, video and multimedia presentations, or digital signage applications in classrooms, bars, restaurants, conference rooms, lecture halls, exhibition centers and trade shows. Transmits Crystal-Clear 4K Video with HDR, 4:4:4 Color and 7.1-Channel AudioThe HDMI, DisplayPort and USB-C ports support UHD 4K resolutions up to 3840 x 2160 at 60 Hz, as well as HDR video, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This switch also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Full, rich, uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital surround sound ensure your ears receive the same treat as your eyes. The VGA port supports HD video up to 1920 x 1080 (1080p) at 60 Hz. Remote Receiver Works Up to 125 ft. AwayThe presentation switch connects to the included passive remote receiver with a user-supplied Cat6 cable (sold separately). The box-style receiver extends 4K video and digital audio signals to an HDMI display up to 125 feet away from the switch. Built-In PoC Technology Provides Receiver Power to Avoid Bulky External Power BricksPower over Cable (PoC) technology powers the remote receiver over Cat6 cable. Green and orange LEDs will light up to indicate the system is receiving sufficient power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receiver away from an AC outlet. 1/4 System Requirements ● Source devices with HDMI, DisplayPort, USB-C and/or VGA output ● Display device with HDMI input Package Includes ● B320-4X1-MHE-K 4-Port over Cat6 Presentation Switch/Extender Kit ● IR remote control ● IR receiver cable, 5 ft. ● External power supply with 4.5 ft. cord (Input: 100–240V, 50/60 Hz, 0.6A; Output: 24V 1A) ● (4) International plug adapters (North America, U.K., Europe, Australia) ● Mounting hardware ● Owner’s manual 1000 Eaton Boulevard Cleveland, OH 44122 United States PD 3.0 Charging Port Charges the USB-C Source to Avoid Battery Drain and Signal LossThe USBC Power Delivery port provides up to 20V 5A (100W), of which 90W is used to charge and power the connected USB-C device, such as a MacBook Pro or Windows laptop. Connect the device's power supply or power adapter between the USB-C PD 3.0 port and an available AC outlet to prevent the source from running out of power prematurely. Plug-and-Play Operation for Quick Setup and Immediate UseThe switch works right out of the box with no software required. Mounting hardware is included for installing the switch and receiver on a wall, pole or 19-inch rack. Connect your devices to the switch's ports with user-supplied cables (sold separately), and plug the switch's external power supply into an AC power source. TAA-Compliant for GSA Schedule PurchasesThe B320-4X1-MHE-K is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. Specifications OVERVIEW UPC Code 037332255150 Technology DisplayPort; HDMI; IR; VGA/SVGA VIDEO Max Supported Video Resolution HDMI/DP/USB Type-C: 4096 x 2160 @60Hz; VGA: 1920 x 1080 @60Hz HDR Support Yes 3D Video Supported Yes Chroma Sub Sampling 4:4:4 AUDIO Audio Specification 7.1 Channel Surround Sound INPUT AC Power Adapter Plug(s) AS/NZS 3112 Australia; BS 1363 UK; CEE 7/16 Schuko; NEMA 1-15P North America AC Power Adapter Input Specs (V / Hz / A) 100-240V / 50/60Hz / 0.6A AC Power Adapter Output Specs (V / A) 24V / 1A AC Power Adapter Cord Length (ft.) 4.5 AC Power Adapter Cord Length (m) 1.4 Voltage Compatibility (VAC) 100; 110; 120; 125; 127; 200; 208; 220; 230; 240 POWER Power Source Type AC Adapter Power Over Cable (PoC) Support Yes 2/4 1000 Eaton Boulevard Cleveland, OH 44122 United States USB Power Delivery (PD) Charging Support Yes USB Power Delivery (PD) Charging Specification 3.0 USER INTERFACE, ALERTS & CONTROLS LED Indicators Green (Power), Orange (DP/HDMI/VGA/TYPE-C IN 1-4); RX: Green (Power), Orange (Signal Link) PHYSICAL Color Black Material of Construction Metal Rackmountable Yes Receiver Unit Dimensions (hwd / in.) 3.74 x 2.36 x 0.73 Receiver Unit Weight (lbs.) 0.17 Shipping Dimensions (hwd / in.) 13.70 x 6.30 x 4.17 Shipping Dimensions (hwd / cm) 34.80 x 16.00 x 10.59 Shipping Weight (lbs.) 3.48 Shipping Weight (kg) 1.58 Transmitter Unit Dimensions (hwd / in.) 9.25 x 3.94 x 1.17 Transmitter Unit Weight (lbs.) 1.43 Unit Packaging Type Box ENVIRONMENTAL Operating Temperature Range 32° to 104°F (0° to 40°C) Storage Temperature Range 5° to 122°F (-15° to 50°C) Relative Humidity 0% to 85% RH, Non-Condensing Power Provided to Connected Device(s) USB-C PD 3.0 Port: 90W COMMUNICATIONS Signal Range (ft.) 125 Signal Range (m) 38 EDID Compatible Yes IR Remote Extension Support Yes RS-232 Serial Extension Support No USB Extension Support No CONNECTIONS 3/4 1000 Eaton Boulevard Cleveland, OH 44122 United States Number of Ports 4 Side A - Connector 1 (2) 3.5MM (FEMALE); DB9 (FEMALE); DISPLAYPORT (FEMALE); HD15 (FEMALE); HDMI (FEMALE); RJ45 (FEMALE); (2) USB C (FEMALE) Side B - Connector 1 HDMI (FEMALE); RJ45 (FEMALE) Connector Plating Nickel Input x Output 4x1 FEATURES & SPECIFICATIONS Integrated/Removable Cable No MST Support No Mounting Accessory Included No Multi-Resolution Support No Port Selection Pushbutton; Remote Selector Displayport Specification 1.2a HDCP Specification 2.2 Recommended Category Cable Cat6 DIN Mountable No STANDARDS & COMPLIANCE External Power Supply Certifications CCC; CE; FCC; GS; TUV; UL; cUL Product Compliance RoHS; CE (Europe); REACH; FCC (USA); Trade Agreements Act (TAA) WARRANTY & SUPPORT Product Warranty Period (Worldwide) 1-year limited warranty © 2023 Eaton. All Rights Reserved. Eaton is a registered trademark. All other trademarks are the property of their respective owners. 4/4
