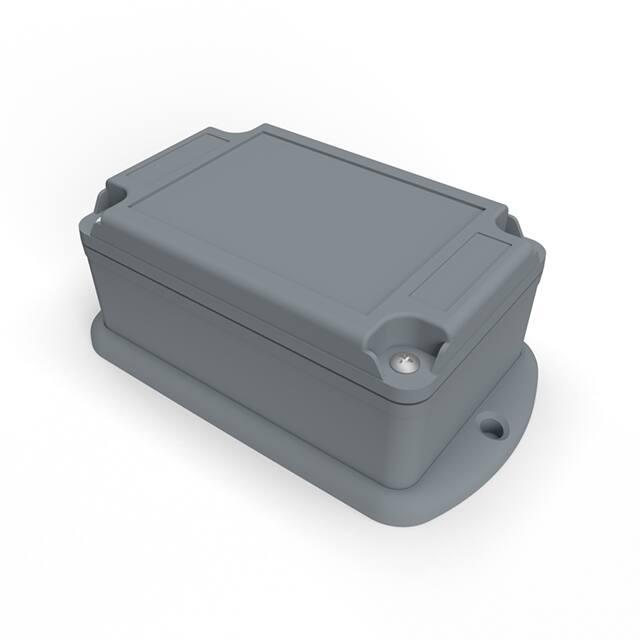

S6L-523322

From Off-The-Shelf to Market-Ready© New Age Enclosures is your Single Source Solution. Let us quote modifying our Stock Enclosures to meet your end-use. visit newageenclosures.com/services or call 855-4NA-ENCL today. REV. DRAWN BY 1 M BOYER ECO No R E V I S I O N DESCRIPTION PRELIMINARY RELEASE DATE APPROVED 11-Dec-08 D.C. 06-Jul-15 D.C. REVISIONS 2-8.1 ARCHIVED ON REV 8.1 9.0 R CRUZ 03115 CHANGED O-RING COLOR FROM NATURAL TO BLUE 10.0 R CRUZ 02918 REMOVE CONFIG TABLE, UPDATE O-RING & NOTE 7 2018-Oct-31 2 LABEL RECESS AREA RECOMMENDED LABEL SIZE 3.540" x 2.570" 4 7 6 NOTES: UNLESS OTHERWISE SPECIFIED 1. CORNERS DRAWN SHARP TO BE R.005 MAXIMUM. 8 2. EXTERIOR SURFACE TEXTURE TO BE LIGHT EDM FINISH. EQUIVELANT TO MT-11020. 3. INTERIOR SURFACE TEXTURE TO BE: NONE. 9 4. ALL INSIDE RADII .010R. ALL OUTSIDE RADII .020R MAX, UNLESS OTHERWISE SPECIFIED. 5. ALL EXTERNAL DIMENSIONS AFFECTED BY THE DRAFT APPLY AT THE LARGE END OF THE FEATURE, AND ALL INTERNAL FEATURES AFFECTED BY THE DRAFT APPLY AT THE SMALL END OF THE FEATURE UNLESS OTHERWISE SPECIFIED. 6. 1 DEGREE DRAFT IN THE DIRECTION OF PULL IS PERMISSIBLE UNLESS OTHERWISED SPECIFIED. 3 7. MATERIAL / COLOR: ENCLOSURE IS STANDARD IN BLACK OR GRAY ASA PLASTIC. SLIGHT COSMETIC SWIRLING, BLUSHING, AND/OR DISCOLORATION CAN OCCUR IN THIS ENCLOSURE DUE TO UV INHIBITORS IN THE RESIN. CUSTOM MATERIALS AND COLORS ARE AVAILABLE UPON REQUEST FOR QUOTE. 8. PCB SIZES ARE RECOMMENDATIONS ONLY. FINAL SIZES AND VERIFICATION OF ITS FIT ARE THE SOLE RESPONSIBILITY OF EACH OWNER. 5 9. STANDARD OR CUSTOM LABEL RECESSES ARE AVAILABLE UPON REQUEST FOR QUOTE. 10. ASSEMBLY SCREWS PROVIDED, PCB MOUNTING SCREWS ARE SOLD SEPERATELY. 1 11. OPERATING TEMPERATURE RANGE OF ENCLOSURE IS: -40°F to +180°F SCALE 0.500 9 523322_ORING 523322 ORING OR-156 SHORE A 1 8 PEM-INSERT_8-32 PEM THREADED INSERT - BRASS STKB-832-20 OVERMOLDED 4 7 SCREW_HILO-NO4X250 #4 HiLo SCREW x .250" ZINC PLATED CUSTOMER SUPPLIED 4 6 523322_PCB 523322 PCB - REFERENCE .062" THICK CUSTOMER SUPPLIED 1 5 523322_WALL 523322 WALL PLATE - STANDARD ASA BLACK or GRAY 1 4 523322_COVER 523322 COVER - STANDARD ASA BLACK or GRAY 1 3 523322_BASE 523322 BASE - STANDARD ASA BLACK or GRAY 1 2 8-32_MACH_SCREW 8-32 MACHINE SCREW 8x32x.500 .50" LONG 4 1 SCREW_HILO-NO4X375 #4 HiLo SCREW x .375" ZINC PLATED .375" LONG 4 DESCRIPTION MATERIAL COLOR QTY. ITEM FILE NAME BILL OF MATERIALS 12. THIS ENCLOSURE IS CONSTRUCTED FOR INDOOR OR OUTDOOR USE TO PROVIDE A DEGREE OF PROTECTION TO THE EQUIPMENT INSIDE AGAINST THE INGRESS OF SOLID FOREIGN OBJECTS (FALLING DIRT); AND TO PROVIDE A DEGREE OF PROTECTION WITH RESPECT TO HARMFUL EFFECTS ON THE EQUIPMENT DUE TO THE INGRESS OF WATER (DRIPPING AND SPLASHING). THIRD ANGLE PROJECTION TOLERANCES: UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN U.S. INCHES. DO NOT SCALE DRAWING NEW AGE ENCLOSURES X.XX = .015 X.XXXX = .001 X.XXX = .010 X.X° = 1° NOTICE: THE INFORMATION AND DATA CONTAINED HEREIN IS CONSIDERED PROPRIETARY TO ALLTEC INTEGRATED MFG INC & SHALL REMAIN THE EXCLUSIVE PROPERTY OF ALLTEC INTEGRATED MFG INC THE HOLDER WILL ASSUME CUSTODY AND CONTROL THAT THIS DOCUMENT WILL NOT BE COPIED, REPRODUCED, OR DISCLOSED WITHOUT THE EXPRESS WRITTEN CONSENT OF ALLTEC INTEGRATED MFG INC POSSESSION OF THIS DOCUMENT DOES NOT CONSTITUTE A GRANT TO MANUFACTURE ANY ITEMS. © 2018 Customer's Part No: APPROVAL BY 523322 DATE CHECK ENG. SCALE AS NOTED DRAWN BY M BOYER 2240 South Thornburg Street ph. (805) 595-1310 STANDARD - OUTDOOR UTIL. SXL-523322 ASSEMBLY SIZE 11-Dec-08 Santa Maria, CA. 93455 fax (805) 595-1024 www.newageenclosures.com A DRAWING NAME 523322_R10_0 SHEET 1 OF 7 REV.DOC 10.0 6.310 5.217 OVERMOLDED PEM INSERT H H C C 3.271 3.660 DETAIL D SCALE 2.000 SEE DETAIL D SEE DETAIL F 1.660 CLEAR 2.180 2.405 1° DRAFT TYP. SECTION C-C SCALE 0.600 SECTION H-H TOLERANCES: UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN U.S. INCHES. X.XX = .015 X.XXXX = .001 X.XXX = .010 X.X° = 1° 3.0° NEW AGE ENCLOSURES .180 DETAIL F SCALE 1.500 .020 Customer's Part No: APPROVAL BY 523322 DATE CHECK ENG. SCALE AS NOTED DRAWN BY M BOYER 2240 South Thornburg Street ph. (805) 595-1310 STANDARD - OUTDOOR UTIL. SXL-523322 ASSEMBLY SIZE 11-Dec-08 Santa Maria, CA. 93455 fax (805) 595-1024 www.newageenclosures.com A DRAWING NAME 523322_R10_0 SHEET 2 OF 7 REV.DOC 10.0 523322 COVER 4.879 3.789 .172 THRU .624 R.300 G 2.933 LABEL RECESS 1.543 2.600 1.843 .458 G R.025 SCALE 0.600 1° DRAFT R.005 3.570 R.050 R.135 .600 .158 .180 .040 RECESS .069 SECTION G-G SEE DETAIL A .088 +2° DRAFT/SIDE .115 (.445) R .030 .080 SCALE 0.600 .060 TOLERANCES: UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN U.S. INCHES. X.XX = .015 X.XXXX = .001 X.XXX = .010 X.X° = 1° NEW AGE ENCLOSURES Customer's Part No: .120 APPROVAL BY 523322 DATE CHECK ENG. DETAIL A SCALE 3.000 SCALE AS NOTED DRAWN BY M BOYER 2240 South Thornburg Street ph. (805) 595-1310 STANDARD - OUTDOOR UTIL. SXL-523322 ASSEMBLY SIZE 11-Dec-08 Santa Maria, CA. 93455 fax (805) 595-1024 www.newageenclosures.com A DRAWING NAME 523322_R10_0 SHEET 3 OF 7 REV.DOC 10.0 523322 BASE 4.496 1° DRAFT TYP. 3.206 D D 2.550 1.300 2.284 SCALE 0.600 .285 4.500 .065 R.135 1.610 .216 -1° DRAFT/SIDE .125 .312 .060 SEE DETAIL B .045 +1° DRAFT/SIDE SCALE 0.600 .065 SECTION D-D .240 X.XX = .015 X.XXXX = .001 X.XXX = .010 X.X° = 1° NEW AGE ENCLOSURES .325 .300 TOLERANCES: UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN U.S. INCHES. Customer's Part No: .076 APPROVAL BY 523322 DATE CHECK .125 ENG. DETAIL B SCALE 3.000 SCALE AS NOTED DRAWN BY M BOYER 2240 South Thornburg Street ph. (805) 595-1310 STANDARD - OUTDOOR UTIL. SXL-523322 ASSEMBLY SIZE 11-Dec-08 Santa Maria, CA. 93455 fax (805) 595-1024 www.newageenclosures.com A DRAWING NAME 523322_R10_0 SHEET 4 OF 7 REV.DOC 10.0 523322 WALL 5.700 X Y 6.310 R.300 X Y 3.660 SECTION X-X 3.209 .281 .050 .125 5.155 .281 SCALE 0.600 .375 SCALE 0.600 SECTION Y-Y .225 .060 .090 SEE DETAIL E TOLERANCES: UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN U.S. INCHES. X.XX = .015 X.XXXX = .001 X.XXX = .010 X.X° = 1° NEW AGE ENCLOSURES Customer's Part No: APPROVAL BY 523322 DATE CHECK DETAIL E SCALE 1.332 ENG. SCALE AS NOTED DRAWN BY M BOYER 2240 South Thornburg Street ph. (805) 595-1310 STANDARD - OUTDOOR UTIL. SXL-523322 ASSEMBLY SIZE 11-Dec-08 Santa Maria, CA. 93455 fax (805) 595-1024 www.newageenclosures.com A DRAWING NAME 523322_R10_0 SHEET 5 OF 7 REV.DOC 10.0 523322 PCB - CUSTOMER SUPPLIED 2.425 1.895 1.603 2x .000 1.603 2x 1.895 2.425 PCB SIZES ARE RECOMMENDATIONS ONLY. FINAL SIZES AND VERIFICATION OF ITS FIT ARE THE SOLE RESPONSIBILITY OF THE OEM. 1.445 1.142 2x .930 .000 .930 1.142 2x 1.445 R.150 .125 4x SCALE 1.000 .062 TOLERANCES: UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN U.S. INCHES. X.XX = .015 X.XXXX = .001 X.XXX = .010 X.X° = 1° NEW AGE ENCLOSURES Customer's Part No: APPROVAL BY 523322 DATE CHECK ENG. SCALE AS NOTED DRAWN BY M BOYER 2240 South Thornburg Street ph. (805) 595-1310 STANDARD - OUTDOOR UTIL. SXL-523322 ASSEMBLY SIZE 11-Dec-08 Santa Maria, CA. 93455 fax (805) 595-1024 www.newageenclosures.com A DRAWING NAME 523322_R10_0 SHEET 6 OF 7 REV.DOC 10.0 2nd OPERATION DETAILS NEW AGE ENCLOSURES DELIVERS YOUR ENCLOSURE MARKET-READY WITH IN-HOUSE CNC MACHINING, PAD PRINTING, ASSEMBLY, AND FULFILLEMENT. ALL SURFACES AND AREAS ARE AVAILABLE FOR CNC ALTERATION BY NEW AGE ENCLOSURES CALL (805) 595-1310 FOR PRICING AND SCHEDULE. THE INSIDE RADIUS OF ANY MACHINED FEATURES SHOULD BE NO SMALLER THAN .031" 523322 COVER SCALE 0.666 523322 BASE SCALE 0.666 TOLERANCES: UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN U.S. INCHES. X.XX = .015 X.XXXX = .001 X.XXX = .010 X.X° = 1° STEP NO 1 2 3 SXL-523322-XXX BASE DESCRIPTION - CUTTER T2 = .062" EM T2 = .062" EM T2 = .062" EM - ASA, BLACK FIXTURE 216 216 216 ORIENTATION - NEW AGE ENCLOSURES Customer's Part No: PROGRAM - APPROVAL BY 523322 DATE CHECK ENG. SCALE AS NOTED DRAWN BY M BOYER 2240 South Thornburg Street ph. (805) 595-1310 STANDARD - OUTDOOR UTIL. SXL-523322 ASSEMBLY SIZE 11-Dec-08 Santa Maria, CA. 93455 fax (805) 595-1024 www.newageenclosures.com A DRAWING NAME 523322_R10_0 SHEET 7 OF 7 REV.DOC 10.0
