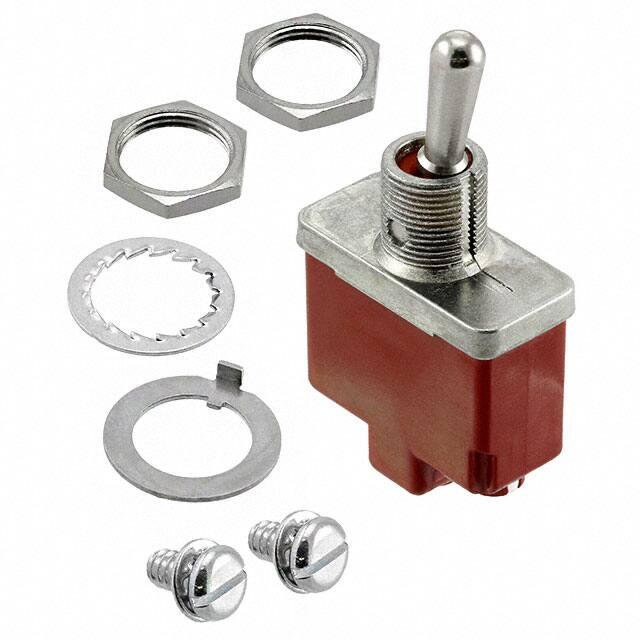

CT series Sealed toggle switches Distinctive features and specifications ❑ Completely sealed switching chamber ❑ Three types of terminals ❑ UL approved ELECTRICAL SPECIFICATIONS MATERIALS • Max. current/voltage rating with resistive load and electrical life at full load: see table below • Initial contact resistance : 10 mΩ max. at 1A 2VDC • Insulation resistance : 1.000 MΩ min. at 500VDC • Dielectric strength : 2.500 Vrms 50 Hz min. between terminals 3.000 Vrms 50 Hz min. between terminals and frame • Case : mineral filled polyester UL94-V0 • Bushing and cover : zamac • Actuator : bright nickel • Contacts : silver alloy Gold plated : on request ELECTRICAL RATING AND LIFE Alternate current Direct current ON-OFF and ON-ON 15A 125/250VAC resistive 10.000 cycles 15A 28VDC resistive 5A 28VDC lamp load 10.000 cycles Other functions 10A 125/250VAC resistive 10.000 cycles 10.000 cycles, T20°C 15A 28VDC resistive 15A 28VDC inductive 5A 28VDC lamp load ON-OFF and ON-ON 15A 125/250VAC resistive 10.000 cycles 15A 28VDC resistive 5A 28VDC lamp load 10.000 cycles Other functions 10A 125/250VAC resistive 10.000 cycles 10.000 cycles, T20°C 15A 28VDC resistive 15A 28VDC inductive 5A 28VDC lamp load DOUBLE POLE SINGLE POLE FUNCTIONS UL AGENCY APPROVAL File E83438 Availability : consult factory for details of approved models. 10A 125/250 VAC according to UL 1054 Marking : to order switches marked UL, complete appropriate box of ordering format. GENERAL SPECIFICATIONS • Torque : 2 Nm (1.47 Ft.lb) max. applied to nut • Panel thickness : see “Mounting Accessories” on the following pages • Mechanical life : 100.000 cycles • Operating temperature : -40°C to +85°C • Front panel sealing : IP67 APEM www.apem.com 1 CT series Sealed toggle switches Overview CT SERIES Number of poles 3 4 Single pole Double pole Electrical functions 1-0 2-0 3-0 4-1 4-2 4-3 ON ON OFF ON ON MOM 3ON4 3ON4 3ON4 Terminals Electrical functions (continued) OFF m.OFF MOM ON▲ MOM▲ MOM▲ 5-0 6-0 7-0 8-0 9-0 ON ON MOM ON ON OFF OFF OFF MOM ON MOM MOM ON 0 2 3 Screw Solder lug/quick-connect Normalized quickconnect ▲ Function 4 : double pole only 0 Lever finish Lever styles 1 Standard, length 17,5 mm (.688) N Bright nickel Locking lever 0 No locking Agency approval 0 2 None UL Accessories 0 2 2 hex nuts, 1 locking ring and 1 lockwasher 2 hex nuts and 1 sealing washer APEM has the ability to develop custom configurations. Please contact us with your requirements. NOTICE : please note that not all combinations of above numbers are available. Refer to the following pages for further information. ABOUT THIS SERIES On the following pages, you will find successively : - model structure of switches - their options in the same order as in above chart Dimensions : first dimensions are in mm while inches are shown as bracketted numbers. Security caps are available to prevent inadvertent lever operation. On request. Packaging unit : 25 pieces 2 www.apem.com APEM CT series Sealed toggle switches • Screw, solder lug or quick-connect terminals ➞ Keyway 2 10.80 (.425) 3 MODEL STRUCTURE 6.35x0.80 (.25x.031) 6.35x0.80 (.25x.031) 4.50 (.177) Ø3.50 (.137DIA) 1 10.80 (.425) Ø3.10 (.122DIA) 0 Shown with standard lever FUNCTIONS III A2-A3 B5-B6 ON ON OFF ON ON MOM ON ON MOM ON ON BASIC PART NUMBER II I *A3-B4 A1-A2 A1-B6 B5-B4 ON* ON* ON* OFF OFF OFF OFF m.OFF MOM ON MOM MOM MOM ON MOM MOM ON Screw terminals Solder lugs and quick-connect term. Normalized quickconnect terminals Single pole Double pole Single pole Double pole Single pole Double pole CT31-00 CT32-00 CT33-00 CT41-00 CT42-00 CT43-00 CT44-10 CT44-20 CT44-30 CT45-00 CT46-00 CT47-00 CT48-00 CT49-00 CT31-02 CT32-02 CT33-02 CT41-02 CT42-02 CT43-02 CT44-12 CT44-22 CT44-32 CT45-02 CT46-02 CT47-02 CT48-02 CT49-02 CT31-03 CT32-03 CT33-03 CT41-03 CT42-03 CT43-03 CT44-13 CT44-23 CT44-33 CT45-03 CT46-03 CT47-03 CT48-03 CT49-03 CT35-00 CT36-00 CT37-00 CT38-00 CT39-00 CT35-02 CT36-02 CT37-02 CT38-02 CT39-02 CT35-03 CT36-03 CT37-03 CT38-03 CT39-03 ➞ Keyway Single pole 2 POS. 22˚ 3 POS. 30˚ A2 A1 A A Ø11.90 32NS (15/32 32NS) III B6 B5 A B4 I II III A1 A3 A2 31.40 (1.236) 31.40 (1.236) A1 A3 A1 A3 11.40 (.449) 11.40 (.449) 17.50 (.689) 10.80 (.425) A2 Ø11.90 32NS (15/32 32NS) 10.80 (.425) II A 17.50 (.689) I 2 POS. 22˚ 3 POS. 30˚ 23.00 (.905) 15.00 (.59) A A Double pole 32.00 (1.26) A3 A1 A3 A1 A3 A2 A2 A1 A3 A2 APEM 10.80 (.425) A2 10.00 10.00 (.393) (.393) 10.00 10.00 (.393) (.393) www.apem.com 1.80 (.07) 10.80 (.425) 32.00 (1.26) 11.00 (.433) 3 CT series Sealed toggle switches LEVER STYLES Ø7.00 (.275DIA) Ø7.00 (.275DIA) Ø11.00 (.433DIA) 25.40 (1.000) 30.00 (1.1811) 25.00 (.984) 24.00 (.944) 30.00 (1.181) 20.00 (.787) 15.00 (.59) Ø7.00 (.236DIA) 17.50 (.688) Ø6.00 (.236DIA) Ø10.50 (.413DIA) 20.00 (.787) Ø6.00 (.236DIA) 1 Standard C35LL1N/A C35LL2N/A C35LL3N/A C35LL4N/A C35LL5N/A C35LL6N LEVER FINISH N Bright nickel LOCKING LEVER 0 Fichier C3500DL No locking AGENCY APPROVAL 0 2 None UL APEM has the ability to develop custom configurations. Please contact us with your requirements. 4 www.apem.com APEM CT series Sealed toggle switches MOUNTING ACCESSORIES 0 For NON-SEALED mounting (panel cut-out fig. 1, 2 or 3) 2 hex nuts 14 mm (.551) across flats, 1 locking ring U121 or U12, 1 lockwasher U13 Panel thickness : 5 mm (.196) max. 2 For SEALED mounting (panel cut-out fig. 2) 2 hex nuts 14 mm (.551) across flats and 1 sealing washer U60 Panel thickness : 4 mm (.157) max. Special hardware : black cap nut U129. Order separately. PANEL CUT-OUT Ø12.50 Ø12.50 Ø12.50 (.492DIA)(.492DIA) (.492DIA) Figure 1 5.10 5.10 (.20) (.20) 5.10 (.20) Ø3.50 Ø3.50 Ø3.50 (.137DIA)(.137DIA) (.137DIA) 1.70 (.066) 9.60 9.60 (.377) (.377) Ø12.20 Ø12.20 Ø12.20 (.48DIA) (.48DIA) (.48DIA) 9.60 (.377) Ø12.20 Ø12.20 Ø12.20 (.48DIA) (.48DIA) (.48DIA) 1.70 1.70 (.066) (.066) Figure 2 Figure 3 C T 0 9 0 5 - A re v. 7 APEM www.apem.com 5
