MICON 5
»Just click it…
…just feel it«
as
e
l
P
s
res
p
e
Switching individually
With the new MICON 5, switching is redefined. The click varies from a
gentle to a distinctly sportive sound, depending on the type used. This
makes it possible to tailor the look and feel of the input keyboard to
the style of the overall system.
RAFI's new MICON 5 short-travel keyswitch sets the benchmark in
miniaturisation while safeguarding switching reliability and excellent
tactile and acoustic properties.
In membrane keyboards, in operating panels or under keycaps: The
RAFI MICON 5 leaves great freedom to your designers and offers to
your customers the switching reliability that lasts for a product's life.
This is the leading edge:
Technology, look & feel, service life.
Machines and devices should above all be easy and safe to operate:
With keyswitches giving a distinct feedback. And which offer reliable
switching for the full life cycle of a product.
RAFI's new MICON 5 opens up entirely new perspectives for the
development of data entry systems and control panels with its
footprint of only 5.1 x 6.4 mm.
First class acoustic and tactile properties, excellent look and feel
combined with absolute switching reliability for keyboards and data
entry units.
MICON 5
The small keyswitch finds a place anywhere
The MICON 5 excels by its minimum dimensions, superior tactile
properties and a sealed contact system with gold contacts. This makes
it ideally suited for the most sophisticated applications just as for the
most severe conditions of use.
MICON 5:The reliable switching unit for use under keycaps.
Push, pull, rocker, double push functions, etc. Whatever you want
to switch, you can realise all your ideas with the MICON 5.
MICON 5: Unbeatable also under membrane overlays.
Experience pays. The MICON 5 offers you utmost flexibility in
designing many different control panels in combination with the
RAFI plungers of variable heights and actuation areas, ranging from
extremely small keypads to exclusive control panels.
Part numbers
Order no.
Terminals
Height
[mm]
Operating
force F¹ [N]
(+- 20%)
Switching
travel S² [mm]
(+- 0,5 mm)
Operating life
[operations]
(testing force)
1.14.002.101/0000
SMD
standard 3,85
3,0
0,7
1.14.002.001/0000
SMD
standard 3,85
4,5
0,8
250.000 (6 N)
1.14.002.111/0000
SMD
standard 3,8
5,5
0,9
1.000.000 (8 N)
1.14.002.011/0000
SMD
standard 3,85
8,5
1,1
250.000 (12 N)
1.14.002.103/0000
SMD
low 3,45
3,0
0,6
1.000.000 (4 N)
1.14.002.003/0000
SMD
low 3,45
4,5
0,7
250.000 (6 N)
1.14.002.113/0000
SMD
low 3,45
5,5
0,7
1.000.000 (8 N)
1.14.002.106/0000
THT
standard 3,85
3,0
0,7
1.000.000 (4 N)
1.14.002.006/0000
THT
standard 3,85
4,5
0,8
250.000 (6 N)
1.14.002.116/0000
THT
standard 3,85
5,5
0,9
1.000.000 (8 N)
1.14.002.016/0000
THT
standard 3,85
8,5
1,1
250.000 (12 N)
1.000.000 (4 N)
Mechanical characteristics
(preliminary data)
Operating force range:
Tactile feedback:
See table part numbers, others
available on request
Uniform over the service life and
temperature range
Mechanical Design
(preliminary data)
Contact system:
Contact arrangement:
Keyswitch mounting:
Fixing:
Terminals:
Terminal shape:
Flammability of materials:
Dimensions:
Snap-action contact, gold-plated on
both sides
1 NO contact
On printed circuit board
Reflow or wave soldering; gluing not
required
High-grade tin
(lead-free to WEEE standards)
Recessed J-shape terminals for SMD,
PCB solder terminals for THT
UL 94 HB
(non-halogenous acc. to WEEE)
6,4 x 5,1 x 3,85/3,45 mm

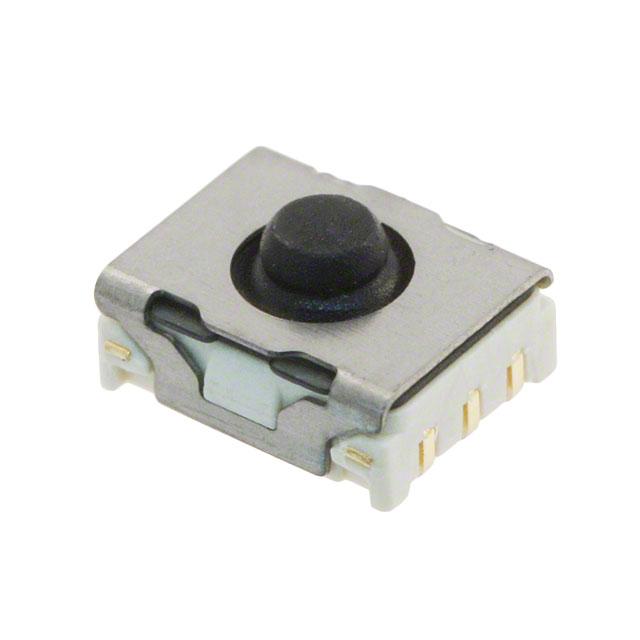

RAFI MICON 5
Basic element
SMD-J on back
Without cover
Overall height 3.85 mm
Metal cover
Sectional view of keyswitch
Silicone seal and
actuator
Standard keyswitch with extension
plunger
Housing with
snap disc
MICON 5 under customer-specific
keycaps
Electrical characteristics
(preliminary data)
Rated voltage:
Rated current:
Rated power, max.:
Contact resistance:
Bouncing time:
Switching travel:
0.02 to 42 V AC / DC
0.01 to 100 mA
1W
