CSD2425

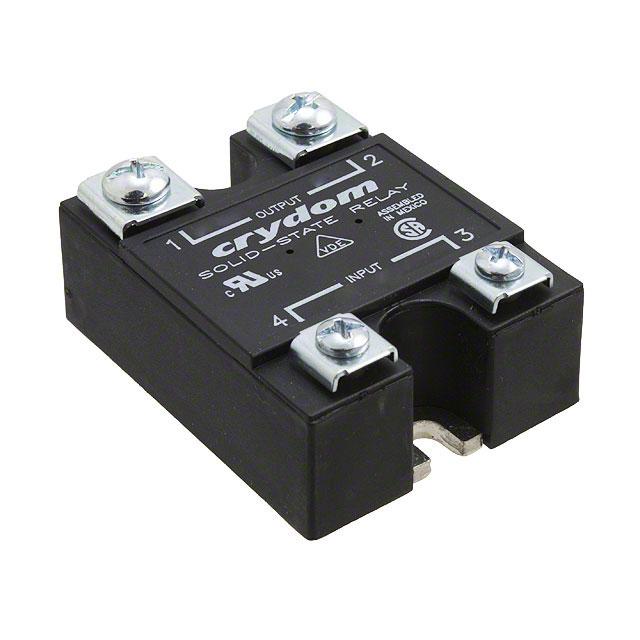

Series CS 10-90Amp • 120/240 Vac • AC OUTPUT • Low Leakage • SCR Output • Panel Mount • Zero and Random Voltage Switching • Internal Overvoltage Protection Available MODEL NUMBERS The Series CS has an SCR AC switch output featuring low off-state leakage (1mA, snubberless), zero and random voltage switching and a broadened operating range (24-280Vac). This wide range permits optimum performance at both120Vac and 240Vac line voltages. Manufactured in Crydom’s ISO 9001 Certified facility for optimum product performance and reliability. CSD2410 CSE2410 CSD2425 CSE2425 CSD2450 CSE2450 CSD2475 CSE2475 CSD2490 CSE2490 24-280 24-280 24-280 24-280 24-280 0.15-10 0.15-25 0.15-50 0.25-75 0.25-90 Transient Overvoltage [Vpk] 600 600 600 600 600 Max. Surge Current, (16.6ms) [Apk] 120 250 625 1000 1200 Max. On-State Voltage Drop @ Rated Current [Vpk] 1.6 1.6 1.6 1.6 1.6 Thermal Resistance Junction to Case (RθJC ) [˚C/W] OUTPUT SPECIFICATIONS ➀ Operating Voltage (47-63 Hz) [Vrms] ➂ [Arms] Load Current Range 1.48 1.02 0.63 0.31 0.28 Maximum I 2 t for Fusing, (8.3 msec.) [A 2sec] 60 260 1620 4150 6000 Max. Off-State Leakage Current @ Rated Voltage [mA] 1.0 1.0 1.0 1.0 1.0 ➁ 500 500 500 500 500 1/2 Cycle 1/2 Cycle 1/2 Cycle 1/2 Cycle 1/2 Cycle 1/2 Cycle 1/2 Cycle 1/2 Cycle 1/2 Cycle 1/2 Cycle 0.5 0.5 0.5 0.5 0.5 Min. Off-State dv/dt @ Max. Rated Voltage [V/µsec] Max. Turn-On Time ➃ Max. Turn-Off Time Power Factor (Min.) with Max. Load INPUT SPECIFICATIONS➀ DC CONTROL DC CONTROL (CSD PREFIX) (CSE PREFIX) Control Voltage Range 3.5-15 Vdc 15-32 Vdc Max. Turn-On Voltage 3.5 Vdc 15.0 Vdc Min. Turn-Off Voltage 1.0 Vdc 1.0 Vdc 300 Ohm 2k Ohm 15 mA @ 5 Vdc 7mA @ 15 V Nominal Input Impedence Typical Input Current © 2003 CRYDOM CORP, Specifications subject to change without notice. GENERAL NOTES ➀ All parameters at 25ºC unless otherwise specified. ➁ Off-State dv/dt test method per EIA/NARM standard RS-443, paragraph 13.11.1 ➂ Heat sinking required, for derating curves see page 2. ➃ Turn-on time for random turn-on version (-10 suffix) is 0.1ms FastFax Document No.162 SERIES CS. Rev. 111103 PAGE 1 OF 3 For recommended applications and more information contact: USA: Sales Support (877) 502-5500 Tech Support (877) 702-7700 FAX (619) 710-8540 Crydom Corp, 2320 Paseo de las Americas, Ste. 201, San Diego, CA 92154 Email: sales@crydom.com WEB SITE: http://www.crydom.com UK: +44 (0)1202 365070 • FAX +44 (0)1202 365090 Crydom International Ltd., 7 Cobham Road, Ferndown Industrial Estate, Ferndown, Dorset BH21 7PE, Email: intsales@crydom.com. GERMANY: +49 (0)180 3000 506 Series CS 10-90Amp • 120/240 Vac - AC OUTPUT GENERAL SPECIFICATIONS Dielectric Strength 50/60Hz , Input/Output/Base 4000 Vrms 109 Ohm Insulation Resistance (Min.) @ 500 Vdc 10 pF Max. Capacitance Input/Output Ambient Operating Temperature Range -40 to 80˚C Ambient Storage Temperature Range -40 to 125˚C MECHANICAL SPECIFICATIONS Weight: (typical) 3.0 oz. (86.5g) Encapsulation: Terminals: Thermally Conductive Epoxy Screws and Saddle Clamps Furnished, Unmounted AVAILABLE OPTIONS F 1.10 (27.9) .45 (11.4) MOUNTING HOLE/SLOT 0.17 (4.3) DIA. Faston Terminals (Up to 50A Models) Example: CSD2425F 1 OUTPUT 8-32 TERMINAL (2 PLACES ) 2 1.87 (47.5) G -- Input Status LED. Example: CSD2425G Note: Control Voltage Range 5-15Vdc for CSD Models. 4 Internal Overvoltage Protection. Relay Will Self Trigger Between 450-600 Vpk. Not Suitable For Capacitive Loads. Example: CSD2425P -10 Phase Controllable Example: CSD2425-10 1 Fastons: Single pair (up to 25A) Double pair* (up to 50A). * Caution: User must connect to both pairs Crydom Heat Sinks offer excellent thermal management and are perfectly matched to the load current ratings of Crydom panel mount relays. Request Crydom’s Heat Sink specification sheet for all the details. APPROVALS UL E116949 CSA LR81689 VDE 10143 UG FastFax Document No.162 SERIES CS. Rev. 111103 PAGE 2 OF 3 6-32 TERMINAL (2 PLACES) 1.10 (27.9) .45 (11.4) MOUNTING HOLE/SLOT 0.17 (4.3) DIA. Screw Torque Requirements: 6-32 Screws - 10 in./lbs., 8-32 and 10-32 Screws - 20in./lbs. (Screws dry without grease.) 3 1.00 (25.4) 1.80 (45.7) BASE PLATE .125 (3.2) P + INPUT OUTPUT -4 2 + INPUT 1.00 (25.4) 1.80 (45.7) .78 (19.8) .90 (22.9) FASTON TERMINAL .250 X .032 (2 PLCS.) .87 REF. (22.2) 1.87 (47.5) BASE PLATE .125 (3.2) 2.30 (58.4) 1.70 (43.2) 2.30 (58.4) 1.70 (43.2) 3 FASTON TERMINAL .187 X .032 (2 PLCS.) .78 (19.8) .90 (22.9) All dimensions are in inches (millimeters) © 2003 CRYDOM CORP, Specifications subject to change without notice. For recommended applications and more information contact: USA: Sales Support (877) 502-5500 Tech Support (877) 702-7700 FAX (619) 710-8540 Crydom Corp, 2320 Paseo de las Americas, Ste. 201, San Diego, CA 92154 Email: sales@crydom.com WEB SITE: http://www.crydom.com UK: +44 (0)1202 365070 • FAX +44 (0)1202 365090 Crydom International Ltd., 7 Cobham Road, Ferndown Industrial Estate, Ferndown, Dorset BH21 7PE, Email: intsales@crydom.com. GERMANY: +49 (0)180 3000 506 Series CS 10-90Amp • 120/240 Vac - AC OUTPUT CURRENT DERATING CURVES 10A 25A 12 30 4 120 100 3˚C/W 2˚C/W 20 15 110 10 NO HEATSINK 5 0 6 8 10 50A 40 60 80 5 80 20 40 60 80 60 80 90 1˚C/W 110 40 .2˚C/W .4˚C/W Power Dissipation 100 Base Plate Temp [˚C] .3˚C/W .5˚C/W 80 100 1ºC/W 110 40 120 120 0 Max Ambient Temp. [˚C] 40 90A 120 NO HEATSINK 0 50 20 Max Ambient Temp. [˚C] 120 95 Power Dissipation 110 20 40 25 .5˚C/W Base Plate Temp [˚C] 100 2˚C/W 30 20 90 40 20 15 75A .5˚C/W 1.5˚C/W Load Current [Arms] 10 Load Current [Arms] 120 1˚C/W Power Dissipation Power Dissipation 20 Max Ambient Temp. [˚C] 0 15 30 45 60 Load Current [Arms] 75 20 40 60 80 Max Ambient Temp. [˚C] 20 40 60 80 Load Current [Arms] 0 20 40 60 80 Max Ambient Temp. [˚C] © 2003 CRYDOM CORP, Specifications subject to change without notice. FastFax Document No.162 SERIES CS. Rev. 111103 PAGE 3 OF 3 For recommended applications and more information contact: USA: Sales Support (877) 502-5500 Tech Support (877) 702-7700 FAX (619) 710-8540 Crydom Corp, 2320 Paseo de las Americas, Ste. 201, San Diego, CA 92154 Email: sales@crydom.com WEB SITE: http://www.crydom.com UK: +44 (0)1202 365070 • FAX +44 (0)1202 365090 Crydom International Ltd., 7 Cobham Road, Ferndown Industrial Estate, Ferndown, Dorset BH21 7PE, Email: intsales@crydom.com. GERMANY: +49 (0)180 3000 506 Base Plate Temp [˚C] 4 Load Current [Arms] 10 120 0 2 60 Base Plate Temp [˚C] 115 NO HEATSINK 25 Power Dissipation 8 Base Plate Temp [˚C] 1˚C/W 110 5˚C/W Power Dissipation 95 3˚C/W 7˚C/W 9˚C/W
