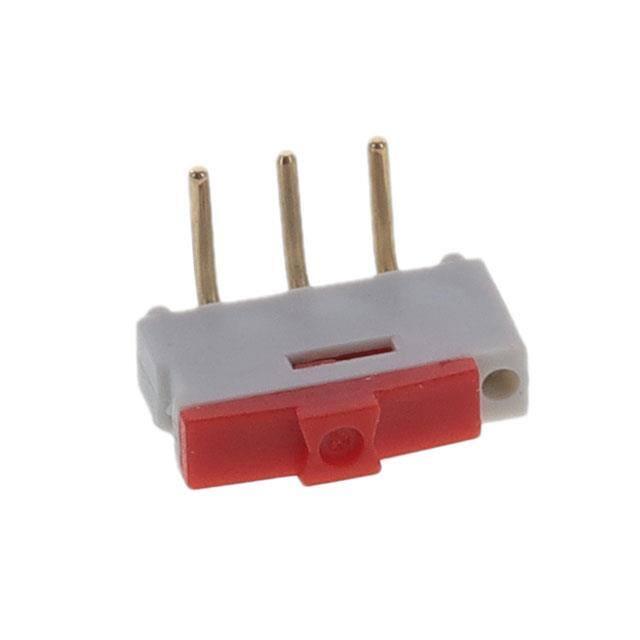

EAO – Your Expert Partner for Human Machine Interfaces EAO Product Information Series 1K2 Switches and Indicators 1K2 Contents 1K2 Description ...................................................................................................... 3 PCB Switches.................................................................................................. 4 Technical Data................................................................................................. 5 Drawings.......................................................................................................... 6 Index................................................................................................................. 8 2 04.2010 1K2 Description Product Information General notes Recommended for all PCB applications as the most compact changeover switch on the market, the 1K2 is ideal as a jumper replacement. A standard (red) or extended (black) slide actuator gives instant recognition of switch position. Mounting The customer has the choice of straight and angle PCB mounting pins. Contacts Heavy gold plated contacts are available for applications requiring dependable operation under extreme environmental conditions. Soldering and Cleaning Immersion and water jet cleaning is not recommended. Ultrasonic cleaning is forbidden. Manual soldering is required for right angle models and side-by-side mounting. We reserve the right to modify technical data All dimensions in mm 3 04.2010 1K2 PCB Switches Change over slide switch 1-pole 1C Gold Pins axial (tropicalized version) Pins bent at right-angles (standard version) MA MA 1C 1C Gold Gold Slider Plastic black raised Plastic red flush Plastic red flush Plastic black raised Plastic red flush Switching action: MA = Maintained action Contacts: C = Changeover Component layout from page 6, Technical drawing from page 6, Circuit drawing from page 7 4 04.2010 Typ-Nr. 09.03290.01 09.03201.02 19.03201.01 09.10290.01 09.10201.02 Circuit drawing Contact material MA Technical drawing Contacts Change over slide switch 1-pole Pins axial (standard version) Component layout Switching action Continuation see next page e 1 1 1 1 1 3 1 1 4 2 1 1 1 1 1 0.001 0.001 0.001 0.001 0.001 1K2 Technical Data Change over slide switch Material Material of contact 0.4 μm Au/Ni (standard version) 2 μm Au/Ni (tropicalized version) Mechanical characteristics Terminals 0.4 μm Au/Ni (standard version) 2 μm Au/Ni (tropicalized version) Climate resistance Damp heat steady : 4 days, 21 days (tropicalised version), as per IEC 60512-6-11c Saline mist : 24 hours 96 hours (tropicalised version), as per IEC 60512-6-11f Shock resistance 50 g, 11 ms, as per IEC 60512-4-6c Resistance to vibrations 10 ... 500 Hz, 10 g, as per IEC 60512-4-6d Actuating travel 1.6 mm nominal Mechanical lifetime 10 000 operations Manual soldering guideline Please note!: The 1k2 is designed for machine wave flow soldering. If manual soldering needs to bedone, the following guidelines have to be adhered to (in accordance to IEC 60068-2-20): Size of tip of soldering iron: 3mm dia. - Type of solder: Sn/Ag/Cu - Soldering temperature: 350°C or 370°C - Soldering time: 5s 1s - In order to avoid overheating, a small break has to be observed between each solder-application - The soldering iron has to be kept clean at all times. - It is mandatory to tin the tip of the soldering iron before the soldering can take place. - When soldering, the tip of the iron has to first pre-heat the "intersection" between pin and circuit, before applying the solder. Electrical characteristics Operating voltage/-current Nominal 12 V, 500 mA Maximum voltage 24 V Minimum voltage 10mV, 1 mA Isolation resistance >10 000 MΩ at 100 VDC Contact resistance
