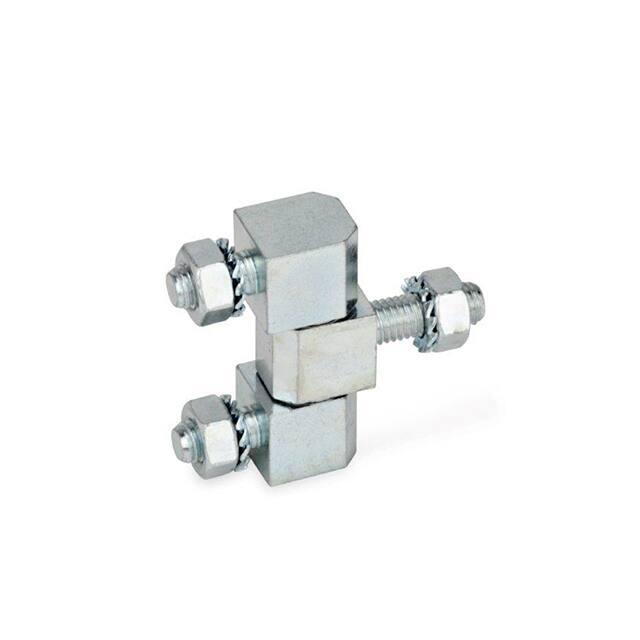

GN 129 Hinges Steel, Zinc-Plated, 2 Part Lift-Off and 3 Part Solid Metric 2 Type D Consisting of three parts Z Consisting of two parts Metric table Dimensions in: millimeters - inches 1 s b 12  0.47 16  0.63 Square d1 d2 h1 h2 l1 l2 l3 l4 l5 l6 m1 m2 15  0.59 M6 6 0.24 39.2  1.54 25.6  1.01 10  0.39 5 0.20 14  0.55  9  0.35 10  0.39 5 0.20 27.2  1.07 13.6  0.54 20  0.79 M8 8 0.31 49  1.93 32.5  1.28 14  0.55 8 0.31 22  0.87 16  0.63 14  0.55 8 0.31 33  1.30 16.5  0.65 Thread Pin max. Specification Information • Body Steel, zinc plated, blue passivated finish GN 129 hinges are used for hatch type doors. The two part hinge allows the door to be unhinged. • Pin Brass, nickel-plated • Washers Brass, nickel-plated • Hexagon nut ISO 4032 Steel, zinc plated, blue passivated finish • Serrated washer DIN 6797 Steel, zinc plated, blue passivated finish In the two-part design, the door can be unhinged with two identically arranged hinges. The three-part hinges, which generally cannot be unhinged and are mounted inside are suitable for doors and flaps, which as anti-tamper precaution must not be dismountable from the outside. see also... • List of Hinge Types • Hinges GN 129.2 (Steel or Stainless Steel) • Hinges GN 129.3 (Steel) • RoHS compliant How to order 1 2 GN 129-16-D 56 | 3.3 Hinging, Latching, Locking of Doors and Covers 1 Square s 2 Type www.jwwinco.com | phone: 1-800-877-8351
