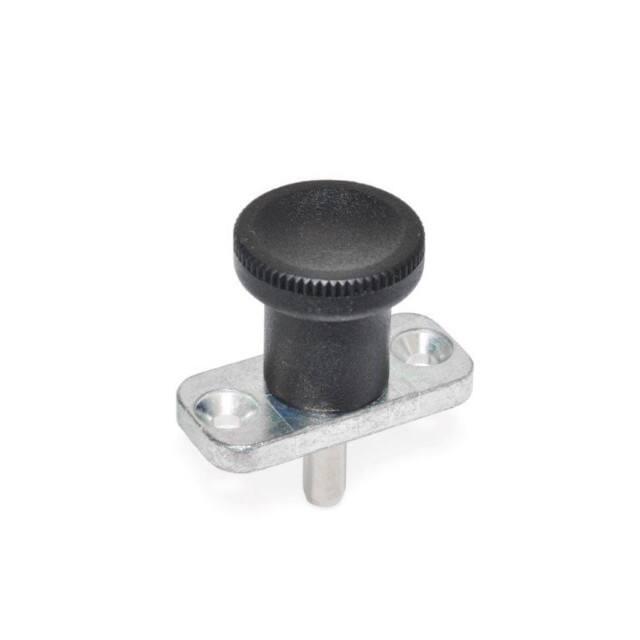

GN 608.1 GN 608.6 Indexing Plungers Steel Plunger Pin Stainless Steel Plunger Pin Lock-Out, Plate Mount Metric Metric table 1 2 d1 l1 Pin  −0.02 −0.05 Bore H7 Dimensions in: millimeters - inches b1 b2 d 2  −0.02 −0.1 d3 d4 d5 k l2 l 3 −0.15 l4 l5 Stroke Spring load ≈ Axial load Initial End 6  .24  6   .24 40  1.57 18   .71 10   .39 25   .98 4.3  .17  8.3   .33 30  1.18 37  1.46 2.5  .10 4.5  .18 6  .24  9N   2.02 lbf 25 N   5.62 lbf 400 N   89.92 lbf 6  .24 14   .55 40  1.57 18   .71 10   .39 25   .98 4.3  .17  8.3   .33 30  1.18 45  1.77 2.5  .10 4.5  .18 6  .24  9N   2.02 lbf 25 N   5.62 lbf 400 N   89.92 lbf 8  .31  8   .31 46  1.81 20   .79 12   .47 31  1.22 5.3  .21 10.4   .41 34  1.34 44  1.73 2.5  .10 5.5  .22 8  .31 13 N   2.92 lbf 26 N   5.85 lbf 500 N 112 lbf 8  .31 18   .71 46  1.81 20   .79 12   .47 31  1.22 5.3  .21 10.4   .41 34  1.34 54  2.13 2.5  .10 5.5  .22 8  .31 13 N   2.92 lbf 26 N   5.85 lbf 500 N 112 lbf Specification Information • Mounting plate Zinc die-cast Zinc plated, blue passivated finish GN 608.1 and GN 608.6 indexing plungers are used in applications that require surface mounting, and the plunger pin needs to stay in its retracted position. • Knob Plastic Technopolymer (Polyamide PA) -- Temperature resistant up to 230 °F (110 °C) -- Black, matte finish -- Not removable • GN 608.1 -- Plunger pin Steel, hardened -- Single components Steel • GN 608.6 -- Plunger pin Stainless steel European Standard No. 1.4305 (AISI 303) Chemically nickel plated -- Single components Stainless steel • RoHS compliant To achieve this, the knob is rotated by 90 degrees after being retracted. A notch keeps the plunger in the retracted position. These series have been expanded with additional plunger pin lengths to widen the application opportunities. Please note that for these longer pin lengths (d1 = 6 mm, l1 = 14 mm / d1 = 8 mm, l1 = 18 mm), the pin does not fully retract. see also... • List of Indexing Plunger Types • Locating Bushings GN 412.2 / GN 412.4 • Locating Bushings with Cone GN 412.3 / GN 412.5 • Indexing Plungers GN 817.1 (Lock-Out / Non Lock-Out) • Mini Indexing Plungers GN 822.8 (Lock-Out / Non Lock-Out) How to order (Steel plunger pin) 1 Pin diameter d1 GN 608.1-8-8 2 Length l1 How to order (Stainless steel plunger pin) 1 Pin diameter d1 2 Length l1 1 1 2 2 GN 608.6-6-14 2 | 3.1 Indexing, Locking, Blocking with Pins and Ball-Shaped Elements www.jwwinco.com | phone: 1-800-877-8351
