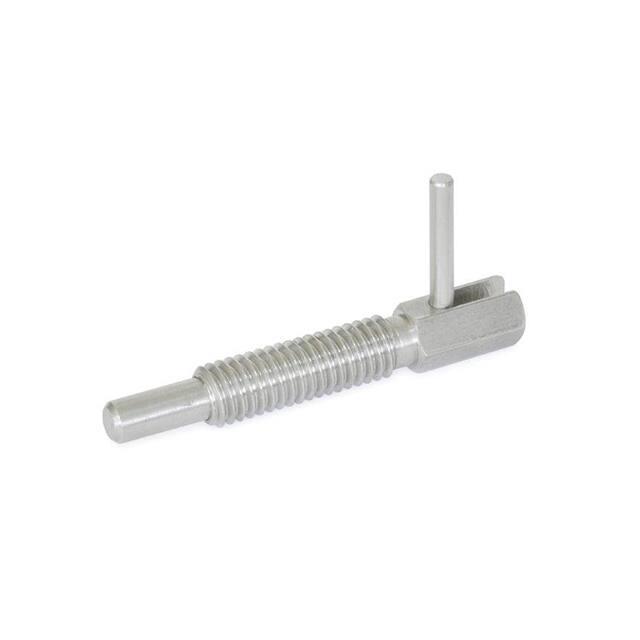

Hand Retractable Spring Plungers LRHS Stainless Steel, Lock-Out, with L-Handle Inch 4 Type NI Without thread locking patch NIP With thread locking patch Inch table Dimensions in: inches - millimeters 1 2 3 d1 d2 l1 d3 l2 l3 l4 l5 A/F Initial End  .16 * 4.1  .25 6.4 1/4 x 20  1.25 31.8  .09 2.3   .38  9.7   .80 20.3 -   .50 12.7   .25  6.4   .50 lbf 2.22 N   2.50 lbf 11.12 N 3/8 x 16  2.00 50.8  .14 3.6   .56 14.2  1.31 33.3  .13 3.3   .75 19.1   .38  9.7   .75 lbf 3.34 N   3.75 lbf 16.68 N  .31 7.9 1/2 x 13  2.11 53.6  .19 4.8   .75 19.1  1.25 31.8  .13 3.3  1.00 25.4   .50 12.7 1.00 lbf 4.45 N   5.00 lbf 22.24 N  .38 9.7 5/8 x 11  3.05 77.5  .19 4.8  1.00 25.4  2.00 50.8  .13 3.3  1.00 25.4   .62 15.7 1.00 lbf 4.45 N   5.00 lbf 22.24 N Thread Spring load ≈ * No thread relief Specification Information • Threaded body / plunger pin Stainless steel European Standard No. 1.4305 (AISI 303) LRHS hand retractable spring plungers have a lock-out pin feature whereby pulling up on the L-handle, turning it 90 degrees and then releasing it to stay on the top of the hex-shaped body, the plunger pin can stay in the retracted position. • RoHS compliant see also... • Indexing Plungers GN 7017 (Metric, Steel / Stainless Steel) • Hand Retractable Spring Plungers LRH (Inch, Steel) How to order 1 2 3 4 LRHS-0.16-1/4X20-1.25-NI 2 | 3.1 Indexing, Locking, Blocking with Pins and Ball-Shaped Elements 1 Pin diameter d1 2 Thread d 2 3 Length l1 4 Type www.jwwinco.com | phone: 1-800-877-8351
