Pi 3 click shield
PID: MIKROE-2756
Pi 3 click shield
By adding two mikroBUS™ sockets to your Raspberry Pi 3, the Pi 3 click shield allows you to
experiment with hundreds of click boards™ from our ever expanding range.
WiFi, Lora, Bluetooth, GSM, GPS, RFID, OLED, speech recognition, environmental sensors,
movement sensors, biosensors, LEDs, relays, — you name it, we got it!
The Pi 3 click shield is compatible with Raspberry Pi 3 model B, 2 B, 1 A+ and B+.
Make your Raspberry Pi® compatible with click boards™
By adding two mikroBUS™ sockets to your Raspberry Pi 3, the Pi 3 click shield allows you to
experiment with hundreds of click boards™ from our ever expanding range.
WiFi, Lora, Bluetooth, GSM, GPS, RFID, OLED, speech recognition, environmental sensors,
movement sensors, biosensors, LEDs, relays, — you name it, we got it!
The Pi 3 click shield is compatible with Raspberry Pi 3 model B, 2 B, 1 A+ and B+.
The shield has an onboard ADC which enables the measuring of the analog levels. Since the
Raspberry Pi® doesn't have an analog pin on the expansion connector, by adding an ADC we've
enabled the usage of any click board™ from our offer.
ADC onboard is MCP3204 12-bit Analog-to-Digital Converter from Microchip. It also has a
switch selector which allows the pin on the mikroBUS™ to be directed to GPIO or to the ADC.
Because of the reference voltage which is 4.096V, the ADC works on 5V, and since the
Raspberry Pi® GPIO voltage level is 3.3V, voltage translator is needed. That's why we've
included TXB0106 voltage translator from Texas Instruments.
This shield has two mikroBUS™ sockets so that you can add hundreds click boards™ from our
ever expanding range.
The package includes single 2x20 female sockets and 2x12mmm distancer with 2 screws.
Software examples for click boards™ are available on Libstock, giving you a repository of
working ode - a great starting point for your own projects.
Pi 3 Model B pinout
Pi 3 Model B has the same layout as the Pi 1 Model A+, Pi 1 B+ and Pi 2 Model B.

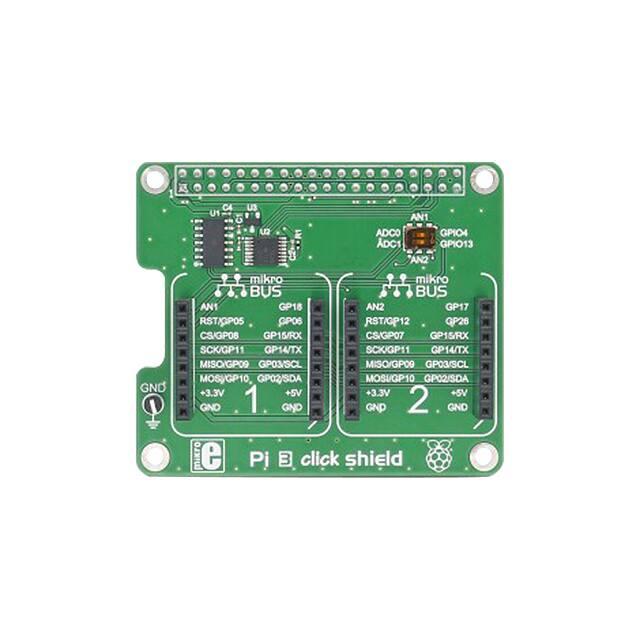

Picture on the right shows Pi 3 click shield connected to the Raspberry Pi® 3 model B,
picture on the left shows the connected shield along with two click boards™: Ozone 2 and GNSS
5 click.
Software demos
Along with Pi 3 click shield, we are providing examples of usage for SPI, I2C and UART
peripherals for our click boards™. They are written in Python programing language. There is
also an example of usage for the ADC integrated on the Pi 3 shield.
More details about examples and examples code can be found on our Libstock and
GitHub pages.
Type
Applications
On-board
modules
Key Features
Input Voltage
Compatibility
Shield
Pi 3 click shield allows you to use click boards on your Raspberry Pi®
Two mikroBUS™ sockets, MCP3204 12-bit Analog-to-Digital converter
(ADC), 4.096V reference voltage
GND Oscilloscope probe pin. Four mounting holes.
3.3V or 5V
Raspberry Pi
