Type：SR674361P
REV：1.0
Date：2013-3-8
Specification Approval Sheet
Mikroe
Customer
:
Model
: SR674361P
Type
: Li-polymer battery
Specification:
3.7V/2000mAh
signed by client
Confirmed
Checked
Approved
signed by manufacturer
Prepared ：
He lu
Checked ：
Approved ：
Li Jin Yong
Page 1/ 12
Type：SR674361P
REV：1.0
Date：2013-3-8
Content
1. Battery type and scope ------------------------------------------------------------------3
2. Basic characteristic and components of battery------------------------------------3
2.1:
Basic performance parameter of battery -------------------------------------3
2.2:
Main components and parts -----------------------------------------------------4
2.3:
Reliable performance test --------------------------------------------------------4
2.4: Dimension ----------------------------------------------------------------------------7
3. Specification of parts ----------------------------------------------------------------------8
3.1：PCB--------------------------------------------------------------------------------------8
3.1.1：General electric characteristic--------------------------------------------------8
3.2：Electric schematic diagram --------------------------------------------------------9
3.3:
Specification of battery cell ------------------------------------------------------10
4. Attentions ------------------------------------------------------------------------------------11
Page 2/ 12
Type：SR674361P
REV：1.0
Date：2013-3-8
1. Battery type and scope
This Specification Approval Sheet is for rechargeable Li-polymer battery provided by Shirui Battery Co., LTD.

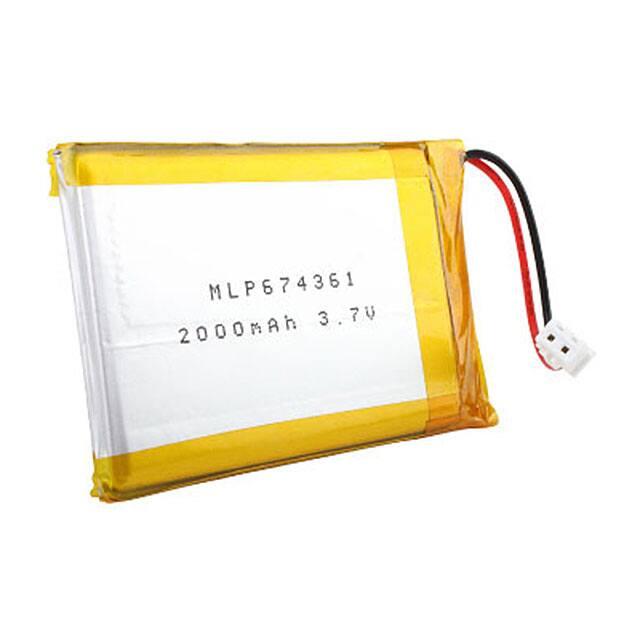

1.1 model：SR674361P
1.2 scope:
2．
．Basic characteristic and components of the battery
2.1 Basic performance parameter
S/N
1
2
Details
Parameters
Rated voltage
3.7V
Rated capacity
2000mAh
4
Limited charge voltage
Internal resistance
4.2V
≤160mΩ
5
charge mode
C.C/C.V.
6
Charge time
6H
7
Max Charge Current
2000mA
8
Max discharge current
Continuous： 2000mA
3
Remarks
discharge with 0.2C to 2.75V
after fully charge within 1h,
measuring the discharge time
Standard charging 0.2C
400mA
charging
0~45℃
discharging
-10~60℃
1 Month
-10~35℃
Charge to 40%~50% of
10
Storage temperature
capacity when storage
6 months
-10~30℃
11
Storage humidity
≤75％
relative humidity
12
Weight
Approx.45g
Touch discharge ≥ 20000V
13
ESD ability
Air discharge≥20000V
14
Cycle life
300 times
capacity≥80%
Note:If you need the battery protection parameters, please refer to PAGE 8.
9
Working temperature
Page 3/ 12
Type：SR674361P
REV：1.0
Date：2013-3-8
2.2 Main components and parts
Materials
Li-Polymer battery cell
Protection board
Wire
Model
Quantity
SR674361P
1PCS
674361
1PCS
JST-XHP-2
UL1007AWG24
Length 50mm
1PCS
Related technical
parameters
Please refer to the
battery cell
specification
Manufacturer
/
2.3 Reliable performance test
S/N
1
Inspection item
High temperature
Standard
No deformation, no rust, no fire or
explosion;
Discharge time ≥100mins with
0.5C5A discharge
No deformation, no rust, no fire or
explosion;
Discharge time ≥ 3 hours with
0.2C5A discharge at -20±2℃
2
Low temperature
No deformation, no rust, no fire or
explosion;
Discharge time ≥ 3.5 hours with
0.2C5A discharge at -10±2℃
3
Capability
Retention
Discharge time ≥ 4.25h
Page 4/ 12
Testing Method
Place the battery in the environment of
55±2℃ for 2 hours after fully charge, then
discharge with 0.5C5A to cut-off voltage.
After fully charge, place the battery in the
environment of -20±2℃ for 16-24h, then
discharge with 0.2C5A to cut-off voltage.
Then display the battery in 20±5℃ for 2
hours, observe the appearance of the
battery.
After fully charge, place the battery in the
environment of -10±2℃ for 16-24h, then
discharge with 0.2C5A to cut-off voltage.
Then display the battery in 20±5℃ for 2
hours, observe the appearance of the
battery.
After fully charged, store the battery at
20±5℃ for 28 days, then discharge with
0.2C5A to cut-off voltage.
Type：SR674361P
REV：1.0
Date：2013-3-8
4
No deformation, no rust, no smoke
Constant humidity
or explosion.
and heat
Discharge time ≥ 36 mins
5
No deformation, no rust, no smoke
or explosion.
Battery voltage ≥ 3.6V
6
No deformation, no smoke or
explosion.
Battery voltage ≥ 3.6V
Vibration
7
8
9
10
Shock
Free Drop
Overcharge
Protection
Over-discharge
Protection
Short-circuit
Protection
No leakage, no
explosion,
but
deformation.
Discharge time ≥
0.5C5A discharge
smoke or
a
slight
100mins at
No explosion, no fire, no smoke or
leakage
No explosion, no fire, no smoke or
leakage.
No explosion, no fire, no smoke or
leakage;
Batteries voltage is not less than
N*3.6V
after
instantaneous
charge.
Page 5/ 12
After fully charge, place the battery in the
environment of 40±2℃ and 90% - 95%
Relative humidity for 48 hours, then place
it in 20±5℃ for 2 hours, later, discharge
with 1C5A to cut-off voltage.
Batteries are vibrated 30 minutes in three
mutually perpendicular directions of X, Y,
Z with amplitude of 0.38mm (10~55Hz)
and the scanning rage of 1oct per minute.
Vibration test ended, place the battery in
the directions of X.Y.Z three mutually
perpendicular axis, and set pulse peak
acceleration as 100m//s2. Then shock the
battery with frequency of 40 ~ 80 per
minute. The duration of pulse is 16ms,
Shock times: 2000 ± 10.
After shock test, the batteries are
dropped on the 18-20mm hardwood on
the concrete floor from 2000mm height
as per positive and negative 6 direction
of X, Y, Z. Each direction should drop
one time. After test, batteries can be
charged and discharged for at least
three cycles.
After fully charged, continue to charge the
battery for 8 hours with C.C/C.V source.
The constant voltage source sets to 2
times nominal voltage and constant
current sets 2 C5A.
At 20±5℃, discharge the battery
discharge with 0.2C5A to cut-off voltage.
Then, continuously discharge the battery
with a 30Ω load resistance for 24 hours.
After fully charge, short-circuit positive
and negative electrode with 0.1Ω for 1
hour. Cut-off positive and negative
electrode, then charge the battery at
0.5C5A instantaneously for 5S.
Type：SR674361P
REV：1.0
Date：2013-3-8
11
12
13
14
15
Thermal Shock
No fire, No explosion
Overcharge
No fire, No explosion
Short circuit
No fire, No explosion. The out
side temperature of the battery is
less than 130℃.
Nail
No fire, No explosion
Cycle life
Cycle life ≥ 300
Page 6/ 12
Battery is heated in a circulating air oven
at a rate of (5±2)℃ per minute to 130℃,
and then placed for 30 minutes at 130℃.
Place battery connected thermocouple
in a ventilated cabinet, connect the
positive and negative to CC/CV source,
and adjust constant current to 3C5A,
and constant voltage to N*10V. Charge
the battery to N*10V and current to 0 A.
Then
monitor
the
changes
of
temperature. If the temperature of battery
drops to about 10℃ lower than the max
temperature, test is finished.
Place battery connected thermocouple
in a ventilated cabinet, short-circuit the
positive and negative, then monitor the
changes
of
temperature.
If
the
temperature of battery drops to about
10℃ lower than the max temperature,
test is finished.
Put battery in the nail test platform.
then, use a diameter 8 mm steel tip to
poke through into hole.
Finally, use a heavy hammer to blow the
battery
At 20±5℃,charge battery with 0.5 C5A to
4.2V and then charge it with constant
voltage to the current less than 20mA.
Stop charge and display for 0.5~1 hour.
Then discharge it with 1 C5A to cut-off
voltage. Display for 0.5 ~1 hour, do next
charge and discharge cycle. Repeat
these steps. Stop it until the continuous
two cycle discharge time is less than 48
minutes.
Type：SR674361P
REV：1.0
Date：2013-3-8
16
Storage
When it is stored for 3 month, fully
charge it, then discharge it at 0.2
C5A, discharge time is not less
than 4 hours.
2.4 Dimension of the Battery
Page 7/ 12
The storage test of battery should be
selected a battery which is less than 3
month from production date to the date of
experiment. Before storage, battery
capacity should be full charged
40%~50%
capacity,
the
ambient
temperature is 20℃±5℃ and relative
humidity is 45%-85%. After the storage
expiration of battery, battery should be
charged and discharged according to
fully charged and discharged.
Type：SR674361P
REV：1.0
Date：2013-3-8
3. Specifications of Parts
3.1: PCB: DW01/BMB101B02, 8205A
3.1. 1: General electric characteristic
Model of Protection IC:DW01/BMB101B02
Items
Specification
Over-charging Protection
Voltage
4.325V±0.1V
Over-charging Return Voltage
4.1V±0.1V
Over-discharge Protection
Voltage
Over-discharge Return
Voltage
Over-current Protection
Output short-circuit Protection
Voltage
Detection Delay Time of
Over-charging Protection
Detection Delay Time of
Over-discharging Protection
Detection Delay Time of
Over-current Protection
Detection Delay Time of
Output short-circuit Protection
Internal Resistance of Proper
Functioning
2.5V±0.1V
3.0V±0.1V
2-5A
-1.2V~ -0.9V
≤1.5S(Typical)
≤144mS(Typical)
≤9mS(Typical)
≤320uS(Typical)
≤2000mΩ
Consume Current
≤6.0uA
Operating Temperature
-20~70℃
Page 8/ 12
Remarks
Type：SR674361P
REV：1.0
Date：2013-3-8
3.2 Electric schematic diagram of battery
3.3 : Components of the Fender Lists
No.
1
2
3
Name of the
Position
components
Precision% Dosage
Supplier
Remarks
674361
Negative
tolerance
1
R1
100Ω±5%/0402
±5
1
470Ω
R2
1KΩ±5%/0402
±5
1
2KΩ
PCB
Internal
Resistance
Internal
Resistance
Specification
Latten
4
Capacity
C1
0.1μF/±10%/16V/0402
±20
1
0.1uF
5
Protect IC
U1
DW01/BMB101B02
/
1
SOT-23-6
6
MOS-FET
U2
8205A
/
Page 9/ 12
1
Type：SR674361P
REV：1.0
Date：2013-3-8
4 Specifications of the Cells
NO.
1
Items
Parameters
Appearance
No mechanical
damage, leakage ,
sink ,drum and so on
Length
2
Dimensions
Width
4
5
6
7
Voltage
Capacity
Internal
resistance
61.0mm
43.0mm
Thickness
3
Tolerance
6.7mm
/
Max
61.0mm
Max
43.0mm
Max
6.7m
m
Term
Remark/ condition
50cm distance
under 40W
daylight lamp
Visual
Digital caliper
≥3.80V
/
Multimeter
≥2000mAH
/
0.2C
≤80mΩ
/
1KHz
Consistency
Appearance quality is the same
Security
Correspond to related safety performance
Page 10/ 12
VC9801
/
Type：SR674361P
REV：1.0
Date：2013-3-8
Attentions
Danger
To prevent battery from weeping, fever, exploding ,please obey the rules as follows:
Do not immerse the battery into the water or the sea, Guard against Damp;
Do not approach the heat source, like fire or heater;
Please use the appointed charger when charging;
Do not transposition the +.- poles of the battery to charge;
Do not direct-connected the battery to alternating current power supply, or autoignition of the vehicle;
Do not discard the battery to the fire or hyperpyretic objects;
Do not use the conductor to lead the short circuit of the + -poles of the battery. Do not put the battery with metallic
conductors to transport or store, like necklace, hairpin and so on;
Do not beat or throw the battery;
Do not impale the battery with needle or some other sharp things, do not strike it with weight;
As installed safety device in the battery, please do not resolve or change any other sections of the battery to protect
the inherent safety functions;
Warnings
Do not put the battery to the microwave oven or pressure tank;
Do not use the battery with some chemical batteries (like dry battery) or different capacities and brands battery
together, if the battery emits the smell, heat , changes color, be out of shape or appears any other abnormal
phenomena during the charging or stored procedures, please get out the battery from the device or charger and stop
using;
If can not recharge within the charging period, please not continue charging;
Put the battery to where the kids can not touch, if the kids swallow the battery , please seeing the doctor soon;
If the electrolyte of the battery into the eyes, do not rub ,should wash the eyes first ,then see the doctor;
Page 11/ 12
Type：SR674361P
REV：1.0
Date：2013-3-8
Announcements
Do not put the battery under the high temperature places (like sunshine irradiation or car in the hot weather),
or it will catch fire for the heat , reduce the performance and loss the life;
To insure the safety, the battery should install the safety device, please not use when the static electricity is
more than we need when produce, or the safety device will lose efficacy and lead the overheating ,fracture,
exploding and catching fire;
Please use the battery in normal as follows, or it will be overheating, caught fire , reduced performance and
shorten the life;
Environment condition
(Temperature) Charging: 0~+450C
Discharging: -10~+600C
Store within 30 days: -10~+350C
Store within 90 days : -10~+300C
If the kids use the battery, they should use as the operation instruction manual and guarantee that it must be use
in normal at any time;
.
If the battery weeps, the electrolytes stick on the skin or cloth, use the water to wash or running water to wash
To insure not install the battery wrong or wastage of the battery, please read the instruction carefully to install and
dismounting;
If the battery will not be used for a long time ,please take out of the battery from the device and store in dry and
shady places;
If there is sludge on the surface of the battery, please wipe up clean before using, or it will lead bad contact with
the device.
! Special Notice
Keep the cells in 50% charged state during long period storage. We recommend to charge the battery up to 50%
of the total capacity every 3 months after receipt of the battery and maintain the voltage 3.7V~4.1V. And store
the battery in cool and dry place.
Page 12/ 12
工商网监
湘ICP备2023018690号
