产品规格书

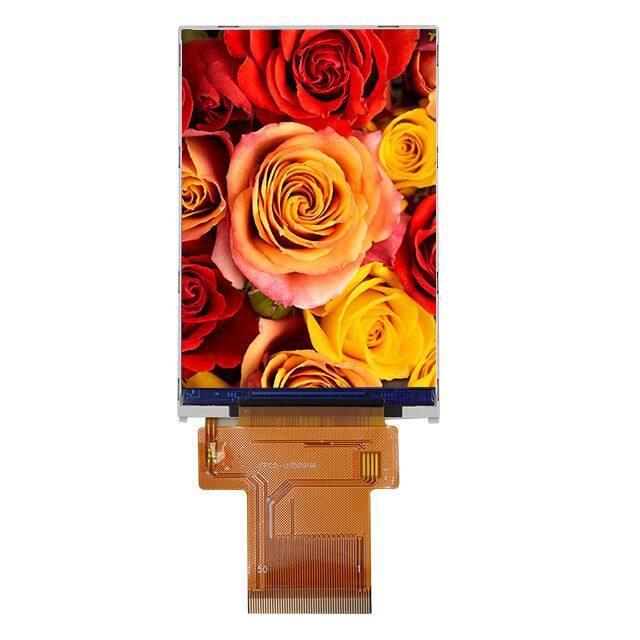

MODULE NO.(产品型号): PG3509NA-ZA0
Customer Name:
(客户名称)
Customer P/N:
(客户型号)
Data:
(日期)
Version:
(版本)
2021-11-08
V1.0
Customer Approval(客户承认)
Prepare(制作)
PG3509NA-ZA0
Check(审核)
Approval(核准)
Revision History(修订历史)
DATE
REV
REVISED DESCRIPTIONS
(修订描述)
(日期)
V1.0
Generation first version
2021-11-08
PG3509NA-ZA0
CONTENTS
1. LCD MODULE PHYSICAL DATA …………………………………...2
2. OUTLINE DIMENSIONS ………………………………………………3
3. ABSOLUTE MAXIMUM RATINGS ………………………………….4
4. ELECTRICAL CHARACTERISTICS ………………………………..5
5. ELECTRO-OPTICAL CHARACTERISTICS ……………………….6
6. INTERFACE PIN CONNECTIONS ………………………………….10
7. INITIALIZED CODE ………………………………………………….11
8. SPECIFICATION OF QUALITY ASSURANCE …………………...12
9. RELIABILITY ………………………………………………………….17
10. USING LCD MODULES ………………………………………………18
PG3509NA-ZA0
-1-
1 LCD MODULE PHYSICAL DATA
1.1
Features
Display Type
TFT
Viewing Direction
IPS
Connection Type
COG + FPC+BL
Driving IC
ILI9488
MPU interface
RGB
Backlight
6 pcs LED
Table 1.
1.2
Mechanical Specification
Item
Standard Value
Unit
3.5
inch
Number of dots
320RGB x 480 dots
pixel
LCM dimension
53.76(H ) x84.18(V) x2.10(T)
mm
48.96(H) x73.44(V)
mm
--
um
TBD
g
Screen size
Active area
Dot size
Approx. weight
Table 2.
PG3509NA-ZA0
-2-
2
OUTLINE DIMENSIONS
Figure 1.
PG3509NA-ZA0
-3-
3 ABSOLUTE MAXIMUM RATINGS
ITEM
Supply Voltage (I/O)
Supply Voltage (Analog)
Input Voltage
SYMBOL
CONDITIO
N
IOVCC
STANDARD VALUE
UNIT
Ta= +25℃
MIN
-0.3
TYP
-
MAX
4.6
VCC
Ta= +25℃
-0.3
-
4.6
V
Vin
Ta=+25℃
Table 3.
-0.3
-
VDD+0.3
V
V
NOTE:
(1). If the module is used above these absolute maximum ratings. It may become permanently
damaged. Using the module within the following electrical characteristic conditions are also exceeded,
the module will malfunction and cause poor reliability
(2). LCM should be grounded during handing LCM.
(3). VDD>GND must be maintained.
PG3509NA-ZA0
-4-
4 ELECTRICAL CHARACTERISTICS
4.1 DC Characteristics
ITEM
Interface Operation Voltage
SYMBOL
STANDARD VALUE
CONDITIONS
UNIT
MIN
TYP
MAX
IOVCC
Ta= +25℃
1.7
1.8
3.3
V
System Voltage
VCC
Ta= +25℃
2.8
3.3
V
Input High Voltage for LCD
VIH
-
2.4
0.7Iovc
c
-
Iovcc
V
Input Low Voltage for LCD
VIL
-
Vss
-
0.3 Iovcc
V
Output High Voltage for LCD
VOH
-
0.8Iovc
c
-
Iovcc
V
Output Low Voltage for LCD
VOL
-
Vss
-
0.2 Iovcc
V
Table 4.
4.2 Back-Light unit
PARAMETER
SYMBOL
REMARK
FORWARD VOLTAGE
VF
LUMINOUS INTENSITY
LUMINOUS UNIFORMITY
CHROMATICITY COORDINATES
STANDARD VALUE
If =120mA
MIN
--
TYP
3.2
Iv
If =120mA
--
350
Iv-m
(min/max)/100
-
80
-
0.260
-
0.330
0.260
-
0.330
X
Y
If =120mA
OPERATING TEMPERATURE
-20℃ ~ 70℃
STORAGE TEMPERATURE
-30℃ ~ 80℃
Table 5.
4.3 AC Characteristics
Refer to IC data sheet
PG3509NA-ZA0
-5-
MAX
-
UNIT
V
cd/m2
%
5
ELECTRO-OPTICAL CHARACTERISTICS
Paramete
Symbol
Threshold voltage
Viewing
Angle
range
Horizontal
Vertical
Min
Typ
Max
Unit
Vsat
2.7
3.3
3.3
V
Vth
1.2
1.5
1.8
V
Left(9’)
-
80
-
Deg
-
80
-
Deg
-
80
-
Deg
-
80
-
Deg
Right(3’)
Up(12’)
Condition
CR > 10
Down(6’)
Remark
Note 1
Not 2
Contrast ratio
C/R
Ө = 0°
-
700
-
Not 3
Transmittance
T(%)
Ө = 0°
-
4.3
-
Not 4
-
0.309
-
-
0.332
-
xR
-
0.660
-
yR
-
0.325
-
-
0.227
-
-
0.568
-
xB
-
0.145
-
yB
-
0.072
-
White Chromaticity
Red
Reproduction
Of color
Green
Blue
Response Time
xw
yw
xG
yG
Tr+Tf
Ө = 0°
Ө= 0°
Ө= 0°
30
Table 6.
Note :
PG3509NA-ZA0
-6-
Not 5
*Color
Filter
Glass
smec
Not 6
1. The definition of Vth & Vsat
Figure 2. The definition of Vth & Vsat
6
2.Viewing angle is the angle at which the contrast ratio is greater than 10. The viewing are
determined for the horizontal or 3, 9 o’clock direction and the vertical or 6, 12 o’clock
direction with respect to the optical axis which is normal to the LCD surface.
Figure 3.Definition of viewing angle
3. Contrast measurements shall be made at viewing angle of Ө= 0° and at the center of the LCD surface.
Luminance shall be measured with all pixels in the view field set first to white, then to the dark (black)
state.
CR
PG3509NA-ZA0
Luminance when displaying a white raster
Luminance when displaying a black raster
-7-
4. Transmittance is the value with Polarizer.
5. The color chromaticity coordinates specified in Table 6. shall be calculated from the spectral data
measured with all pixels first in red, green, blue and white. Measurements shall be made at the center of
the C/F. Measurement condition is C - light source & Halogen Lamp.
Figure 4 Optical test equipment.
6. The electro-optical response time measurements shall be made as FIGURE 3 shown in Appendix by
switching the “data” input signal ON and OFF. The times needed for the luminance to change from 10%
to 90% is Tr, and 90% to 10% is Td
Figure 5.Definition of response time: Tr+Tf
PG3509NA-ZA0
-8-
7 INTERFACE PIN CONNECTIONS
PIN
NO.
1
2-3
4-5
6
7
8
9
10
11
12
13
14~31
32
33
34
35
SYMBOL
GND
IOVCC
VCI
IM0
IM1
IM2
RESET
VSYNC
HSYNC
PCLK
DE
DB17~DB0
TE
SDO
SDA
RD
36
WR/SCL
37
RS
38
39
40
41
42
43
44~49
50
CS
XR
YD
XL
YD
LEDA
LEDK
GND
FUNCTION DESCRIPTIONS
Ground
Interface Operation Voltage
System Voltage
The interface mode select.
The interface mode select.
The interface mode select.
RESET signal
Vertical synchronizing signal.
Horizontal synchronizing signal.
Dot clock signal
Data ENABLE signal
Data bus
TE signal
Serial data output
serial data input pin
serve as a read signal
DBI Type B: WRX pin, serves as a write signal
DBI Type C: SCL pin as Serial Clock when operates in the
serial
Data/Command Selection pin
Low: Command
High: Parameter
CS signal
Right electrode – differential analog
Down electrode – differential analog
Left electrode – differential analog
Up electrode – differential analog
Backlight positive
Backlight negative
Ground
Table 7.
PG3509NA-ZA0
-9-
8 INITIALIZED CODE
Please contact us for details.
PG3509NA-ZA0
-10-
9 SPECIFICATION OF QUALITY ASSURANCE
9.1
Summary
The customer should check and accept the products of PGO within one month after reception.
This standard for Quality Assurance should affirm the quality of LCD products to supply to purchaser
by PGO. Entire process is controlled according to ISO9001 in factory.
9.2
Standard for quality test
(1) Inspection
Before delivering, the supplier should take the following tests, and affirm the quality of product.
(2) Electro-Optical Characteristics
According to the individual specification to test the product.
(3) Test of Appearance Characteristics:
According to the individual specification to test the product.
(4)Test of Reliability Characteristics
According to the definition of reliability on specification for test product.
(5) Delivery Test
Before delivering, the supplier should take the delivery test
(6)Sampling Method: GB/T2828.1-2003, Level II
(7) The defects classify of AQL as following
Major defect: AQL=0.65
Minor defect: AQL=1.5
9.3
Nonconforming Analysis & Deal With Manners
☆Nonconforming Analysis
(1) Purchaser should supply the detail data of nonconforming sample and the non-suitable state.
(2) After accepting the detail data from purchaser ,the analysis of nonconforming should be
finished in two weeks.
(3) If supplier can not finish analysis on time ,must announce purchaser before two weeks.
☆Disposition of nonconforming
(1) If find any supplier defect during assembly line, supplier must change the good
product for every defect after recognition.
(2) Both supplier and customer should analysis the reason and discuss the disposition of
nonconforming when the reason of nonconforming is not sure.
9.4
Agreement items.
PG3509NA-ZA0
-11-
Both sides should discuss together when the following problems happen:
(1) There is any problem of standard of quality assurance ,and both sides think that must be
modifier.
(2) There is any argument item which does not record in the quality assurance.
(3) Any other special problem.
9.5
Standard of the Product Appearance Test
9.5.1
Manner of appearance test
(1) The test must be under 20W*2 or 40W fluorescent light ,and the distance of view must be at
30±5 cm.
(2) When test the model of Transmissive product must add the reflective plate.
(3) Definition of Area:
A Area: Active area
B Area: Viewing area
C Area: Out of viewing area
D Area: Seal area
C Area
B Area
A Area
D Area
Figure7
9.5.2
Basic principle:
(1) It will accord to the AQL when the standard can not be described.
(2) The sample of the lowest acceptable quality level must be discussed by both supplier and
customer when any dispute happened.
PG3509NA-ZA0
-12-
(3) Must add new item on time when it is necessary.
9.6
Inspection specification
NO
01
Item
Electrical Testing
PG3509NA-ZA0
Criterion
1.1 Missing vertical, horizontal segment, segment
contrast defect.
1.2 Missing character, dot or icon.
1.3 Display malfunction.
1.4 No function or no display.
1.5 Current consumption exceeds product specifications.
1.6 LCD viewing angle defect.
1.7 Contrast defect
-13-
AQL
0.65
2.1Round type: As following drawing
φ=(x+y)/2
X
Y
Acceptable QTY
Size
LCD black spots,
white spots, color
02
A.A
Ignore
φ≦0.10
0.10
