1.30.273.312/2200

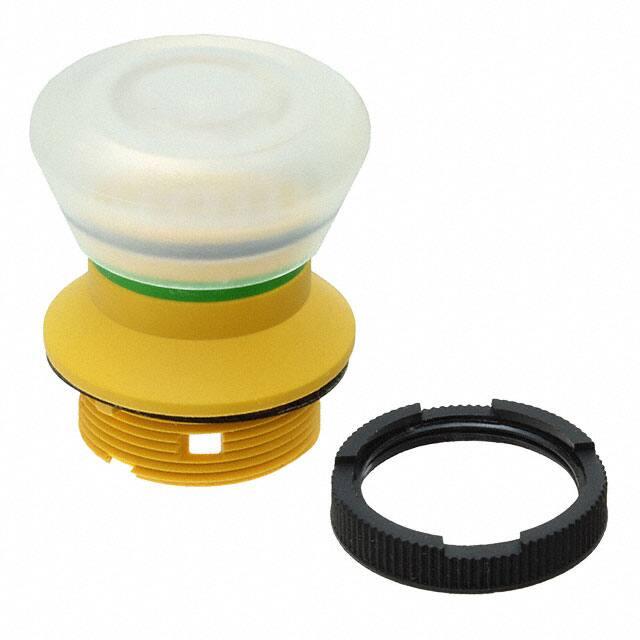

22.03.2018 RAFIX 22 FS+ - Stop pushbutton compact, active/inactive 1.30.273.312/2200 General information Form of lens Color of lens Form of collar Color of arrow conical mushroom form red round transparent Dimensions Mushroom Diameter Overall height Mounting depth Mounting hole Diameter of collar 30 mm 25.9 mm PCB 9.2 mm, QC 27 mm 22.3 mm 29.8 mm Mechanical design Mounting Contact function Illuminability Reset Torque for nut ring ring nut latching yes by rotating 1.2 Nm Mechanical characteristics Robustness max. 100 N Other specifications Ambient temp. operating min. Ambient temp. operating max. Robustness Storage temperature min. Storage temperature max. Operating life (operations) B10 Degree of protection from front side Environmental restistance Salt spray ROHS compliant REACH compliant -25 °C +70 °C acc. to IEC 600 68-2-3 und 2-30 -40 °C +80 °C 50,000 cycle 65,000 cycle IP65 (DIN EN 60529) acc. to IEC 60068-2-14, -30, -33 and -78 IEC 600 68-2-11 yes yes Technical data are approximate and intended solely for general orientation in the selection of a product. Subject to modifications and errors. Images and other graphics may only be similar. For more information, refer to www.rafi.de chapter Imprint / Data Protection. 22.03.2018 Panel cut-out to IEC 60947-5-1 Technical data are approximate and intended solely for general orientation in the selection of a product. Subject to modifications and errors. Images and other graphics may only be similar. For more information, refer to www.rafi.de chapter Imprint / Data Protection.
