HDB2-1A-3-A1

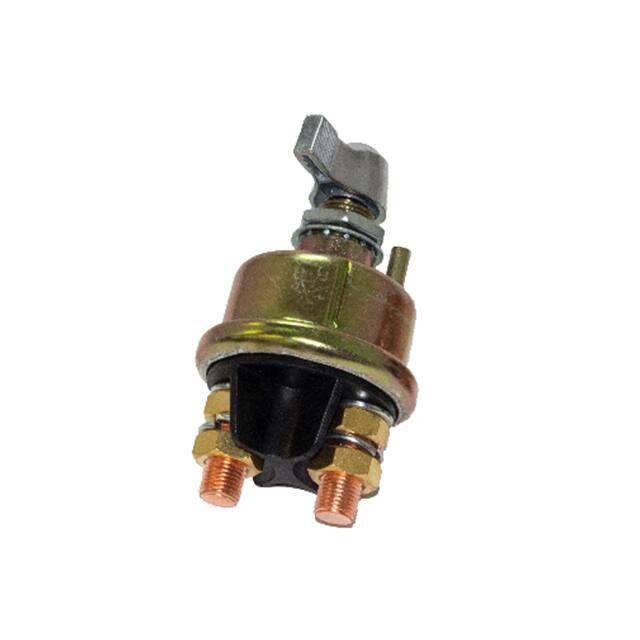

Battery Disconnect HDB2-1A-3-A1 Mechanical Dimensions: Inches [mm] Tolerances ±0.012 [0.3] Unless Otherwise Specified Mounting Hole Circuit Diagram SPST: Does not disconnect alternator 0.6[ .0] ] .7[ ] [ 0.2 0 0.7[ or generator field circuit. .0] Electrical Specifications Materials Specifications Continuous Rating 300A 6-32VDC Steel construction Intermittent Rating 2000A for 5secs intervals Sealed with O-rings at base and mounting stem Inrush Rating 1000A for 30secs intervals Case and terminal insulator Insulation Resistance DC 500V 100M ohm Min Copper terminals Dielectric Strength AC 1000V 1 minute IP67 Rev A 11/2019 Battery Disconnect Rev A HDB2-1A-3-A1 Designed Approved Date of issue Revision Notes 11-12-2019 Initial Drawing RC Rev A 11/2019 OF
