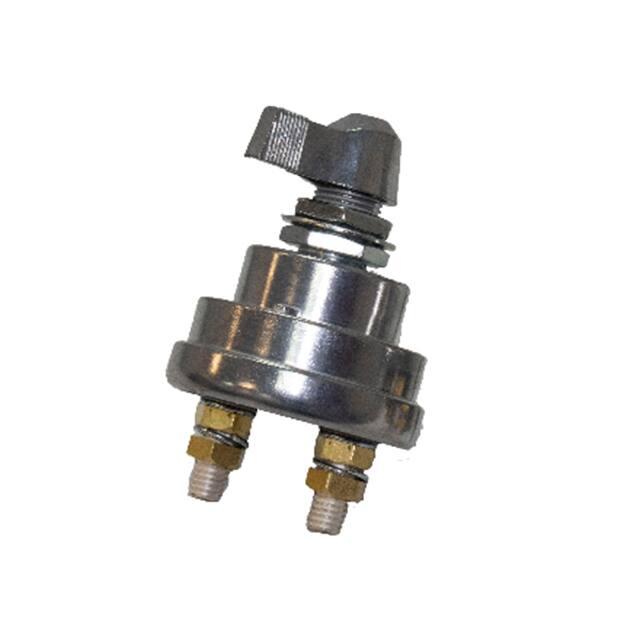

HDB3-1A-3-A

Battery Disconnect HDB3-1A-3-A Mechanical Dimensions: Inches [mm] Tolerances ±0.012 [0.3] Unless Otherwise Specified Mounting Hole Circuit Diagram 0.6[ SPST: Does not disconnect alternator or generator field circuit. ] ] 7[ [ 0.6 0. 0.8[ ] ] Electrical Specifications Material Specifications Continuous Rating 180A 6-36VDC Zinc diecast construction Intermittent Rating 1000A for 15secs intervals Sealed with O-rings at base and mounting stem Insulation Resistance DC 500V 100M ohm Min Copper, Silver plated terminals Dielectric Strength AC 1000V 1 minute Operation Temperature -40°C~85°C Rev A 11/2019 Battery Disconnect Rev A Date of issue 11-13-2019 HDB3-1A-3-A Revision Notes Designed Initial Drawing RC Rev A 11/2019 Approved OF
