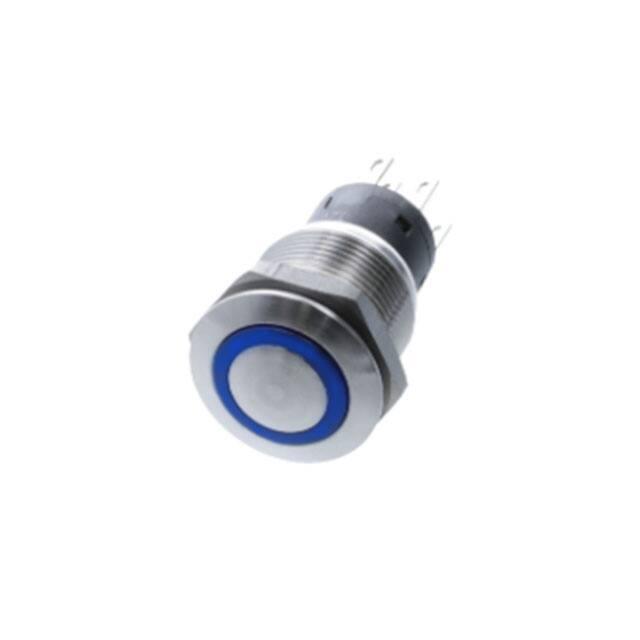

PD-2D-DC-9-UL

PD-2D-DC-9-UL Mechanical Dimensions: Inches [mm] Circuit Diagram 8P DPDT ON-ON (LED-I) Thickness: 0.2~0.3 [7.0~10.0 ]max Contact Resistance Dielectric Strength 10A 14V DC Frame SUS304 50m ohm Max Lamp Blue DC 500V 100M ohm Min Actuator SUS304, LENS Blue Clear, PC AC 500V 1 minute Housing Black, PA 66 -20°C ~ 70°C Black, PBT +15%GF Rev A 02/2019 Push Button Rev A PD-2D-DC-9-UL Designed Approved Date of issue Revision Notes 03-01-2019 Initial Drawing RC Rev A 02/2019 OH
