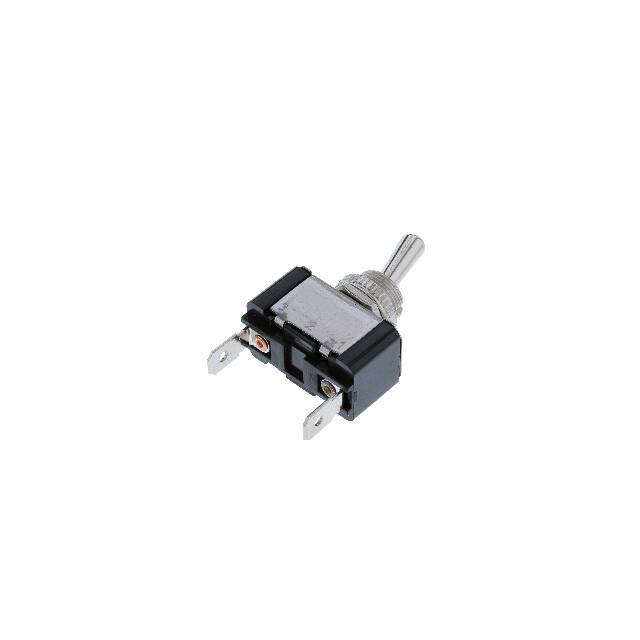

TA1-1A-DC-1

Toggle Switch TA1-1A-DC-1 Mechanical Dimensions: Inches [mm] Tolerances ±0.012 [0.3] Unless Otherwise Specified Mounting Hole Circuit Diagram 2P SPST OFF-ON Thickness: 0.1 [4.0 ]max Electrical Specifications Material Specifications Rating 20A 12V DC, 10A 24V DC 2 hex nut assy Contact Resistance 50m ohm Max 1 spring washer Insulation Resistance DC 500V 100M ohm Min Dielectric Strength AC 1500V 1 minute Operation Temperature 0°C ~ 65°C Rev A 04/2019 Toggle Switch Rev A TA1-1A-DC-1 Designed Approved Date of issue Revision Notes 04-29-2019 Initial Drawing RC Rev A 04/2019 OH
