TA2-1B-DC-1

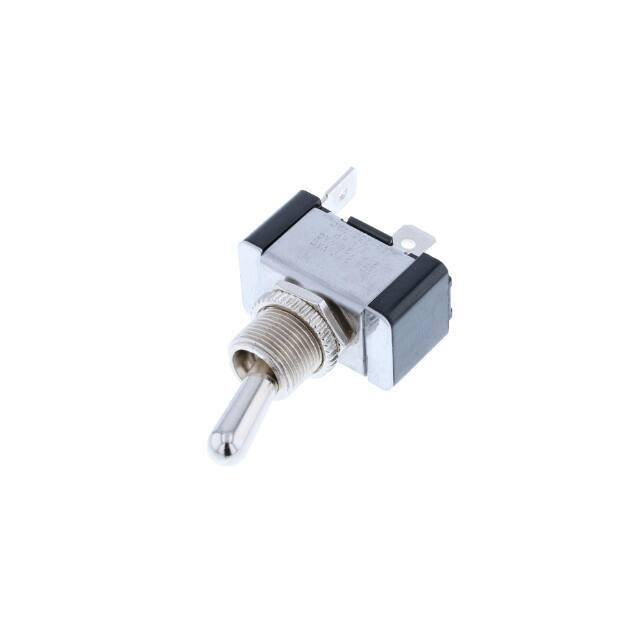

Toggle Switch TA2-1B-DC-1 Mechanical Dimensions: Inches [mm] Tolerances ±0.012 [0.3] Unless Otherwise Specified ON OFF 0.'2[ ¢6.0] C> �I C> I o.o± .0[0.8±0.0_3 l ---r- DATE CODE (MMYY) t I I 1 +I 0 , 0 .2�0.-=0(6.3±0.1 ] . l!") I I �, T""'" �. I L!) 0 +I . � C> Mounting Hole Circuit Diagram 2P SPST OFF-(ON) Thickness: 0.2 [6 mm]max Electrical Specifications Material Specifications Rating 21A 14V DC Operation Force Contact Resistance 50m ohm Max 1 hex nut assy Insulation Resistance DC 500V 100M ohm Min 1 knurl nut assy Dielectric Strength AC 1500V 1 minute Operation Temperature -20°C ~ 85°C Rev A 02/2019 1100gf ± 400 gf Toggle Switch Rev A TA2-1B-DC-1 Designed Approved Date of issue Revision Notes 02-13-2019 Initial Drawing RC Rev A 02/2019 OH
